Remove buttons, holder for button set, cover for button
section
Required work steps:
■ Remove keyboard
■ Remove cradle
■ Remove pen
■ Removing the LCD back cover assy
■ Remove battery
Required tools:
■ Screwdriver: Phillips, size PH00
►

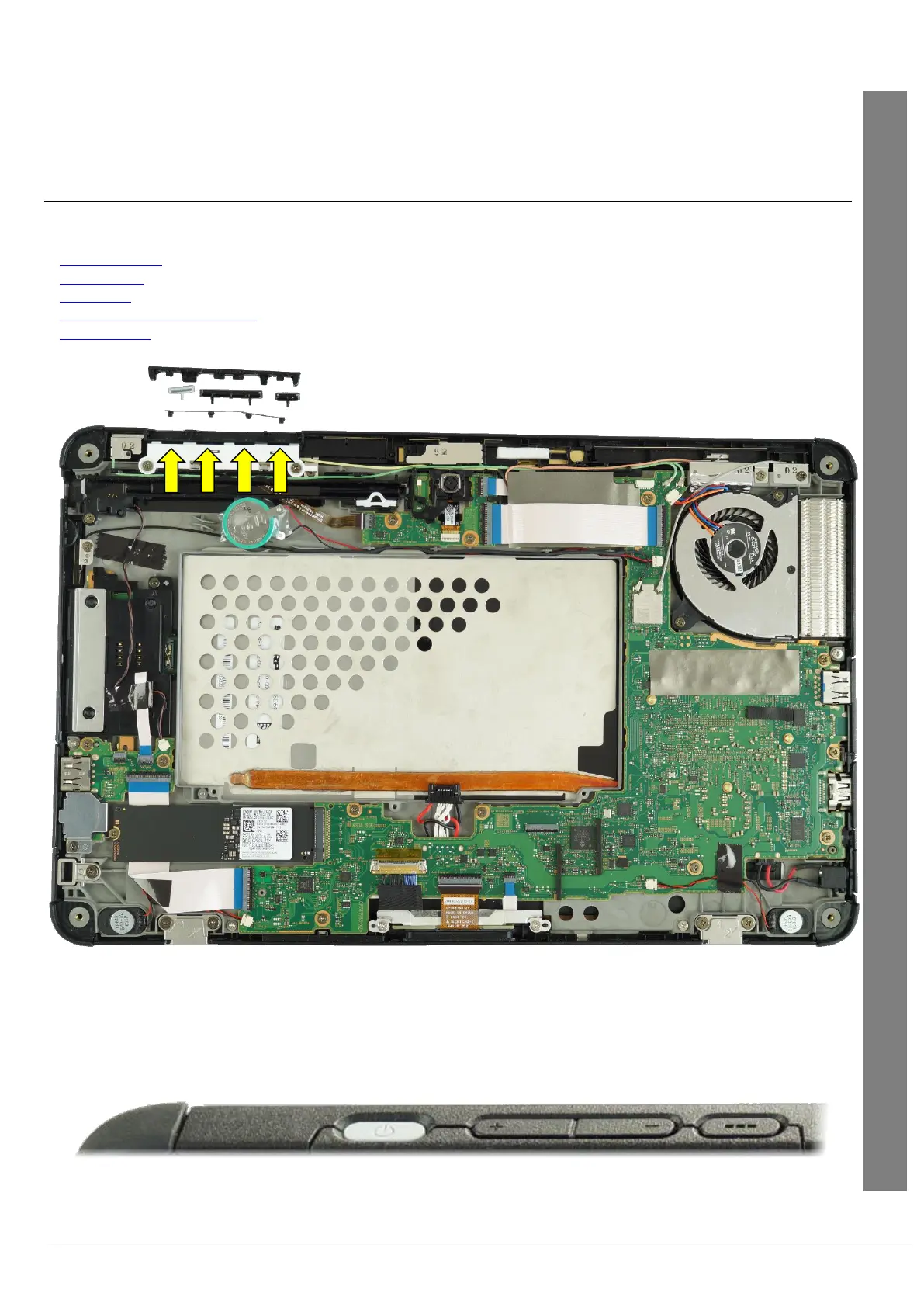

Release and carefully remove the cover for button section, the single keys and the holder for button set from their intended
positions (yellow arrows).
Service Partner only
