Removing / fitting the SIM tray
Required work steps:
■ Remove keyboard

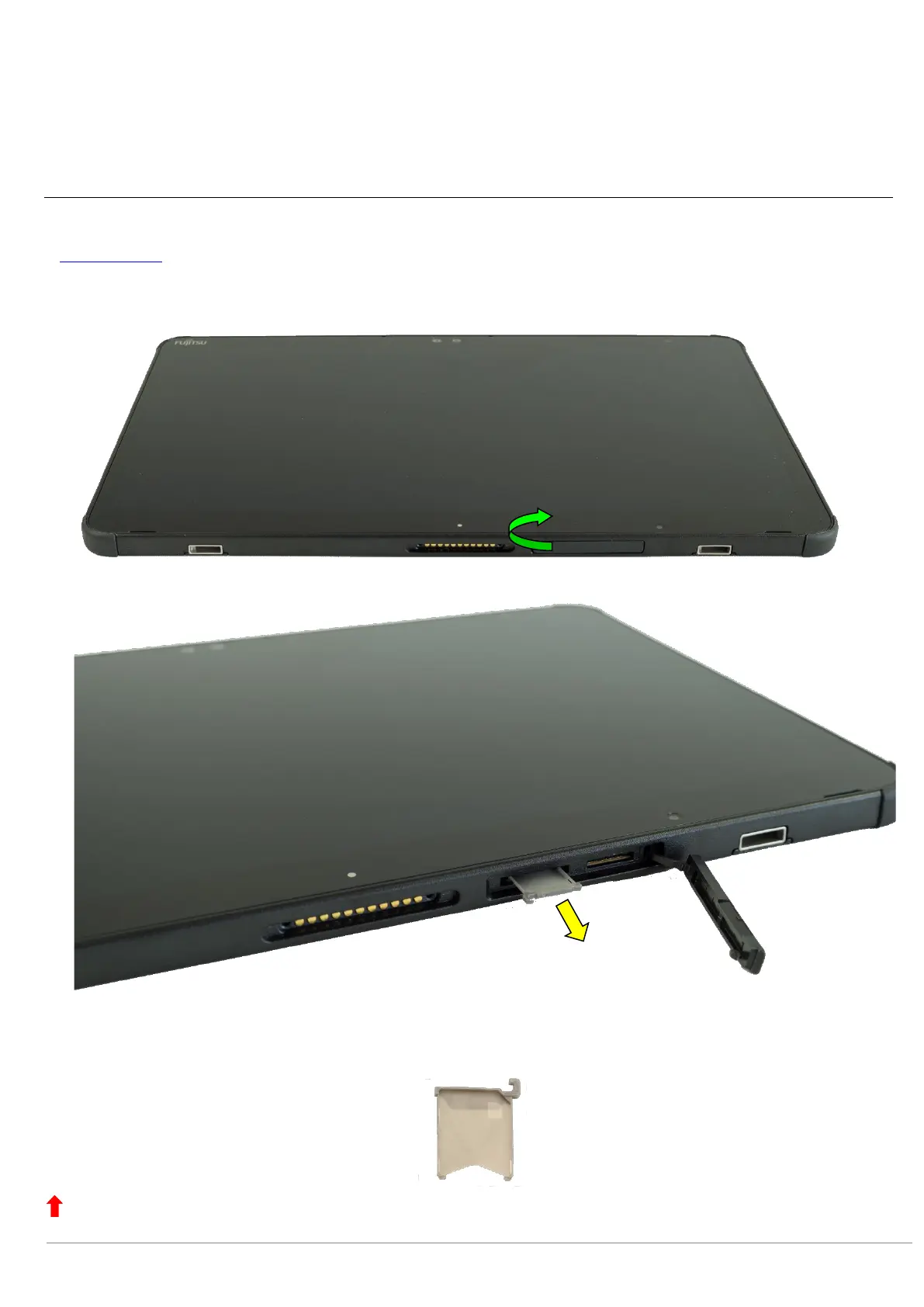

► The SIM and SD card cover is on the bottom right next to the keyboard connector. Open it (green arrow) and remove the SIM card
holder (yellow arrow).
► Pull out the SIM card holder in the yellow arrow direction.
Please note!
■ To ensure proper positioning, the SIM tray must be inserted horizontally into the SIM card slot (see figure above).
