Remove fan
Required work steps:
■ Remove keyboard
■ Remove cradle
■ Remove pen
■ Removing the LCD back cover assy
■ Remove battery
Required tools:
■ Screwdriver: Phillips, size PH00

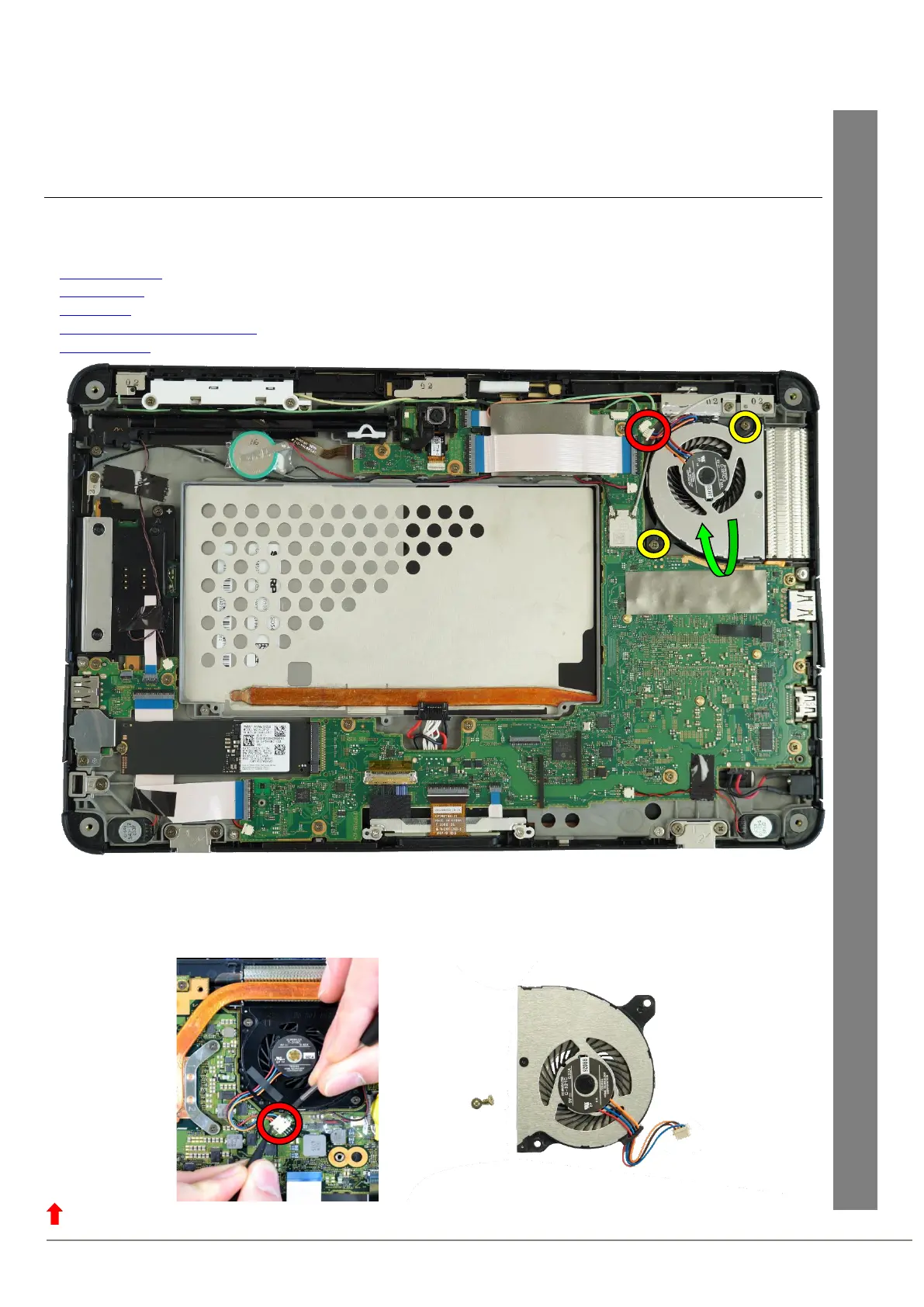

► Remove both screws M2XL3 (yellow circles).
► The cable of the fan connector may be a bit difficult to disconnect (red circle). In this case, try disconnecting it with two
tools (figure below).
► Carefully lift the fan out (green arrow).
