Fujitsu STYLISTIC Q7310 - Remove LTE Module

Page 26 of 64
Remove LTE module
Required work steps:
■ Remove keyboard
■ Remove cradle
■ Remove pen
■ Removing the LCD back cover assy
■ Remove battery
Required tools:
■ Screwdriver: Phillips, size PH00

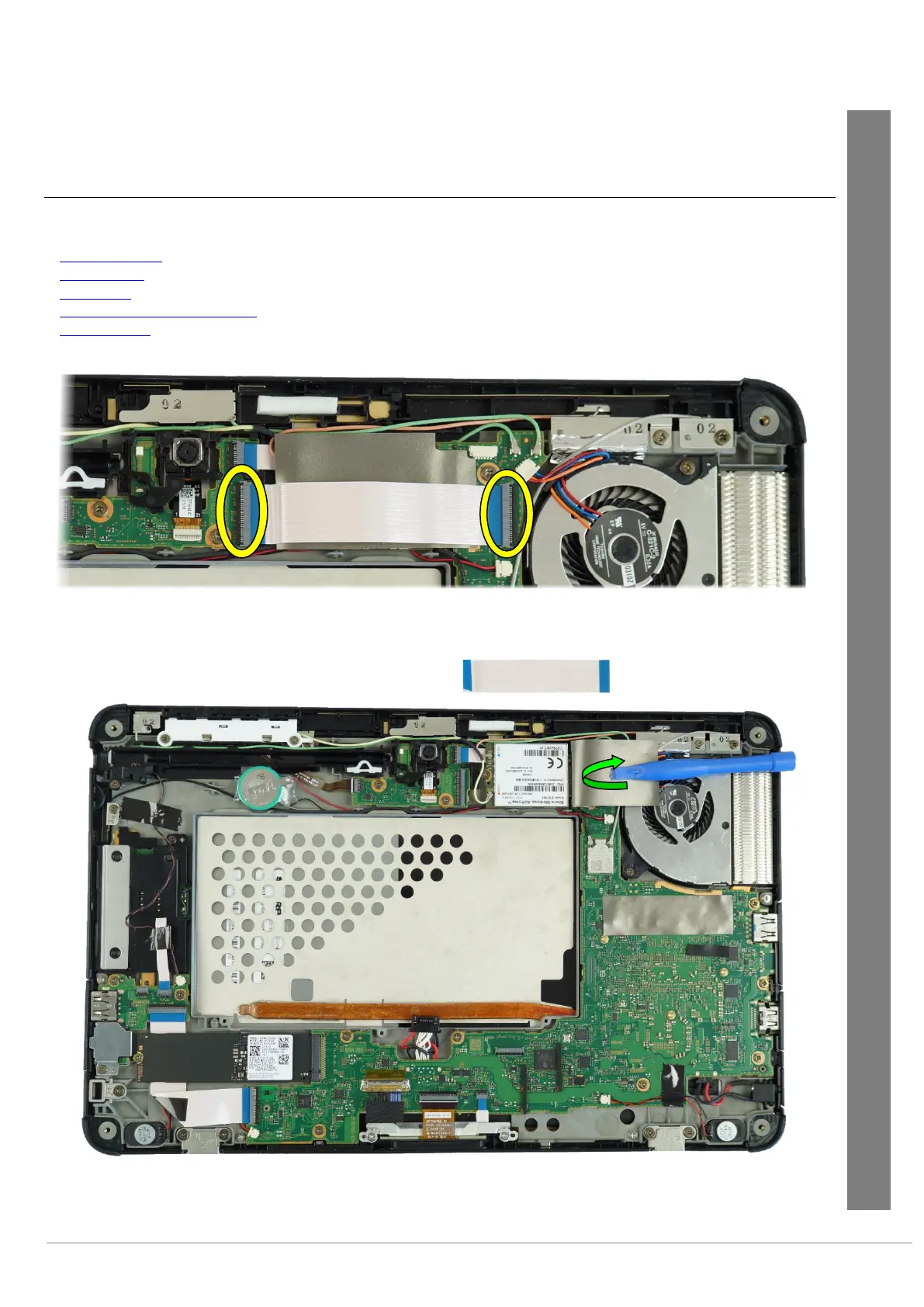

► Disconnect and remove the flexprint cable which is fitted over the LTE module and leads to the camera sub board (yellow
circles).
► Put aside the gasket to the right (green arrow). The LTE module is now visible.
Service Partner only
