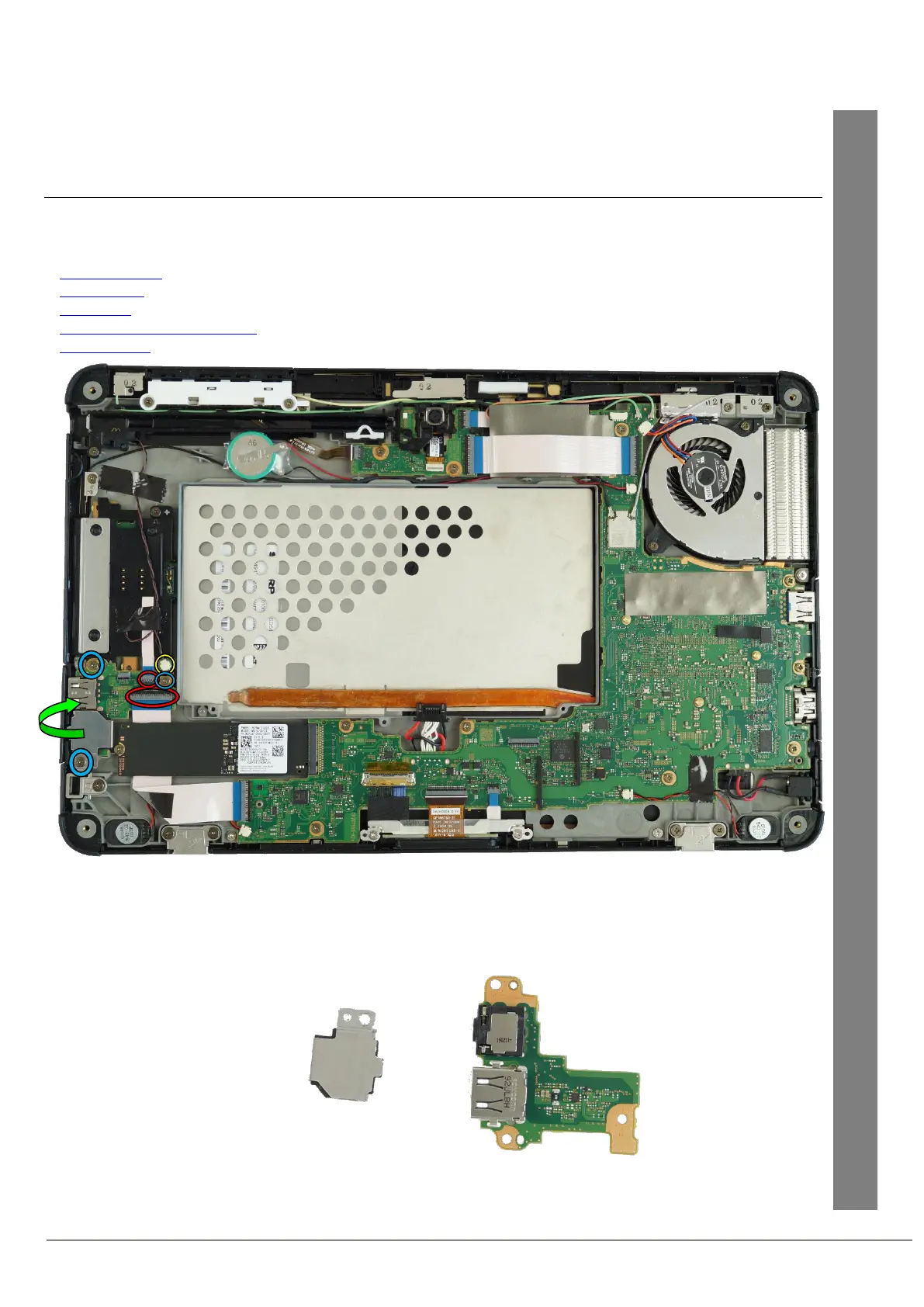

Removing the USB / audio sub board
Required work steps:
■ Remove keyboard
■ Remove cradle
■ Remove pen
■ Removing the LCD back cover assy
■ Remove battery
Required tools:
■ Screwdriver: Phillips, size PH00
► Disconnect both flexprint cables (red circles).
► Carefully disconnect the pen garage cable (yellow circle).
► Remove the three M2XL2.5-0 screws (blue circles).
► The audio panel is now loose and can be removed in the green arrow direction.
Service Partner only
