1-3. Description and Usage of MUT-III Components

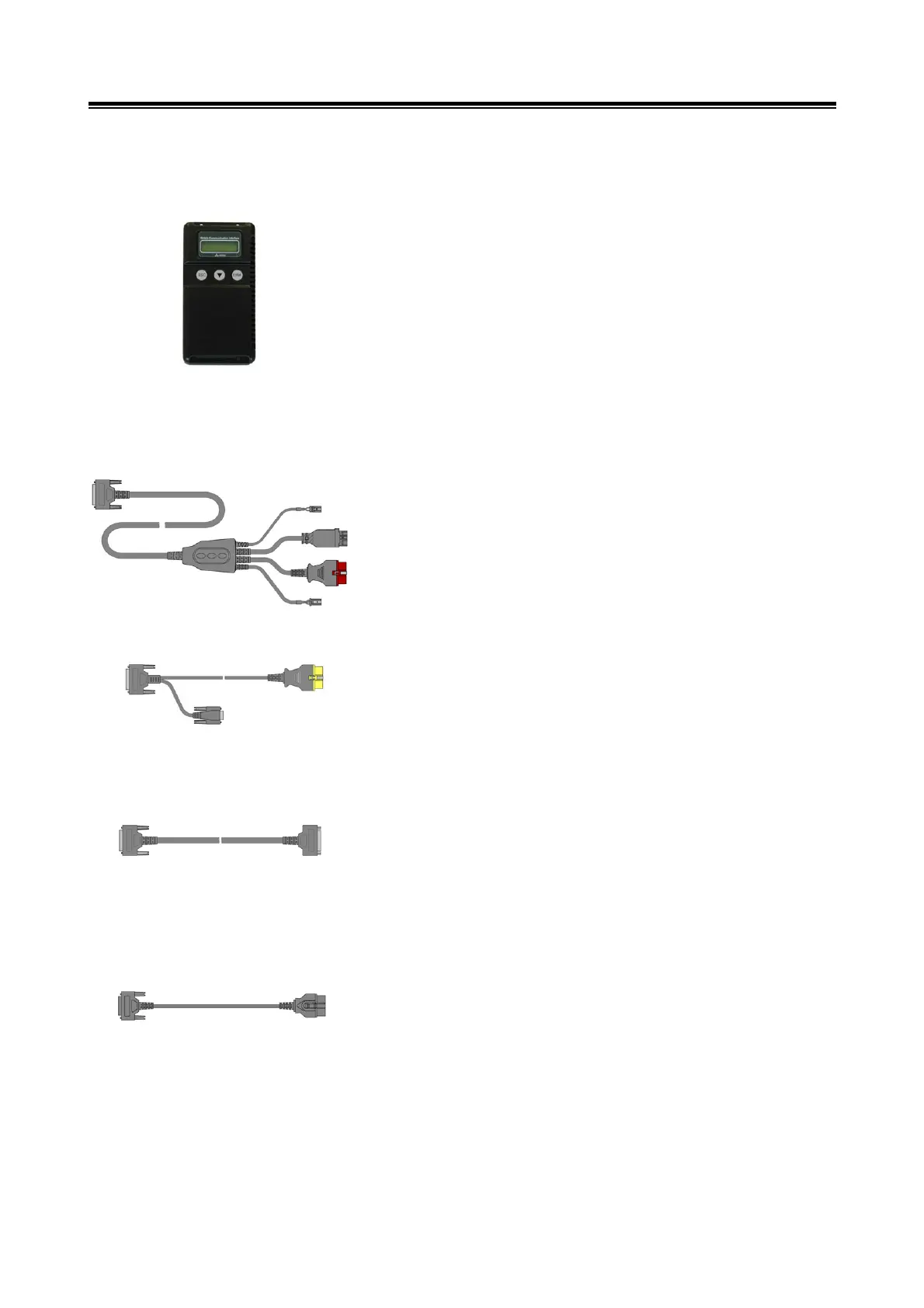

(1) V.C.I. (MH062927)
Communications interface used for connecting the vehicle
ECU to a PC
1. When Connected to PC
• Provides ECU fault diagnosis (interactive fault
diagnosis)
2. V.C.I. Stand-Alone Usage (usage while disconnected
from PC)
• Drive recorder
The V.C.I. can be utilized, without modification, for both
12V / 24V vehicles.
(2) Harness, MUT-III TYPE-B (MH062962)
This harness is used to connect the V.C.I. to a vehicle.
Power can be supplied to the V.C.I. via the cigarette lighter
plug, depending upon the particular model of vehicle.
Refer to section 1-5 for connection of harness and vehicle
combinations.
(3) Harness, MUT-III TYPE-C (MH062930)
This harness is used for checking or data recording of the
Air Suspension ECU, manufactured by WABCO.
This harness is used with Air Suspension I/F Cartridge.
(4) Harness, MUT-III TYPE-D (MH062951)
This harness is used as an extension for TYPE-B/TYPE-E
harnesses.
(5) Harness, MUT-III TYPE-E
(MH063661)
(MH063662) Only for Europe.
This harness is used to connect the V.C.I. to a vehicle.
Refer to section 1-5 for connection of harness and vehicle
combinations.
Please refer to the service guide for each vehicle.
