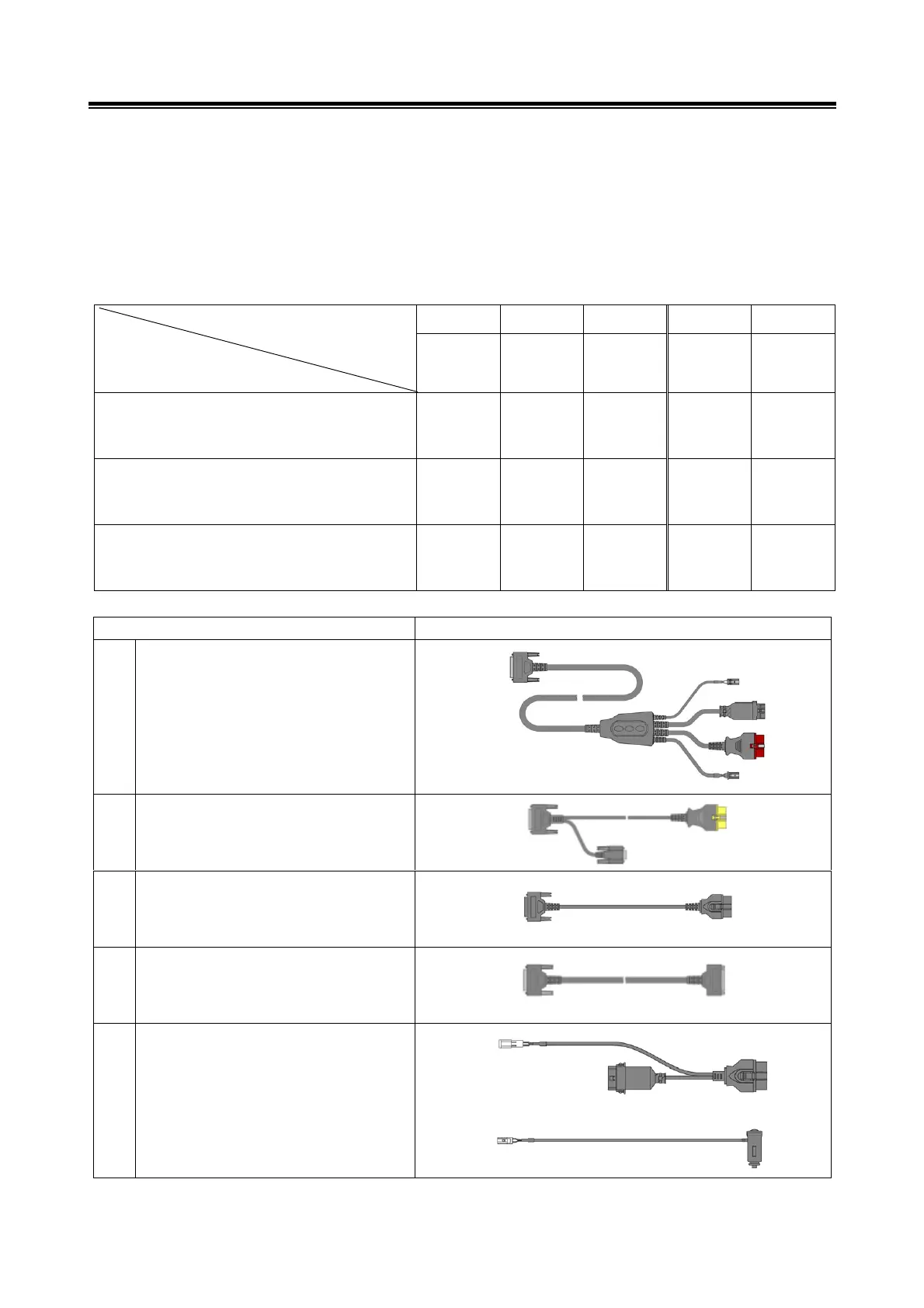

1-5. Connection Harness and Vehicle Combinations
• Connect either a "TYPE-B" or “TYPE-C” or "TYPE-E " harness to the vehicle’s 16-pole / 12-pole
connector and perform fault diagnosis.
• A "TYPE-D" harness can be utilized as an extension for "TYPE-B / TYPE-E" harnesses.
• Use a combination of harnesses, either a "TYPE-B" or “TYPE-C” or "TYPE-E " (O), and either a
"TYPE-D" or “Drive recorder" (●), depending upon the performing operation.
*1 : Thailand, Chile
Harness Name Appearance
01 TYPE-B
MH062962
02 TYPE-C
MH062930
03 TYPE-E
MH063661
MH063662(Only for Europe.)
04 TYPE-D
MH062951
05 Drive recorder
MH063663
01 02 03 04 05
Harness Name
Vehicle
TYPE-B TYPE-C TYPE-E TYPE-D
Drive
recorder
~EURO3, ~EPA04, ~Taiwan 3rd terms
O ●
EURO4~, EPA07~, Taiwan 4th terms~,
EURO3(Limited country*
1
)~
O ● ●
Equipped with Air Suspension
manufactured by WABCO
O
