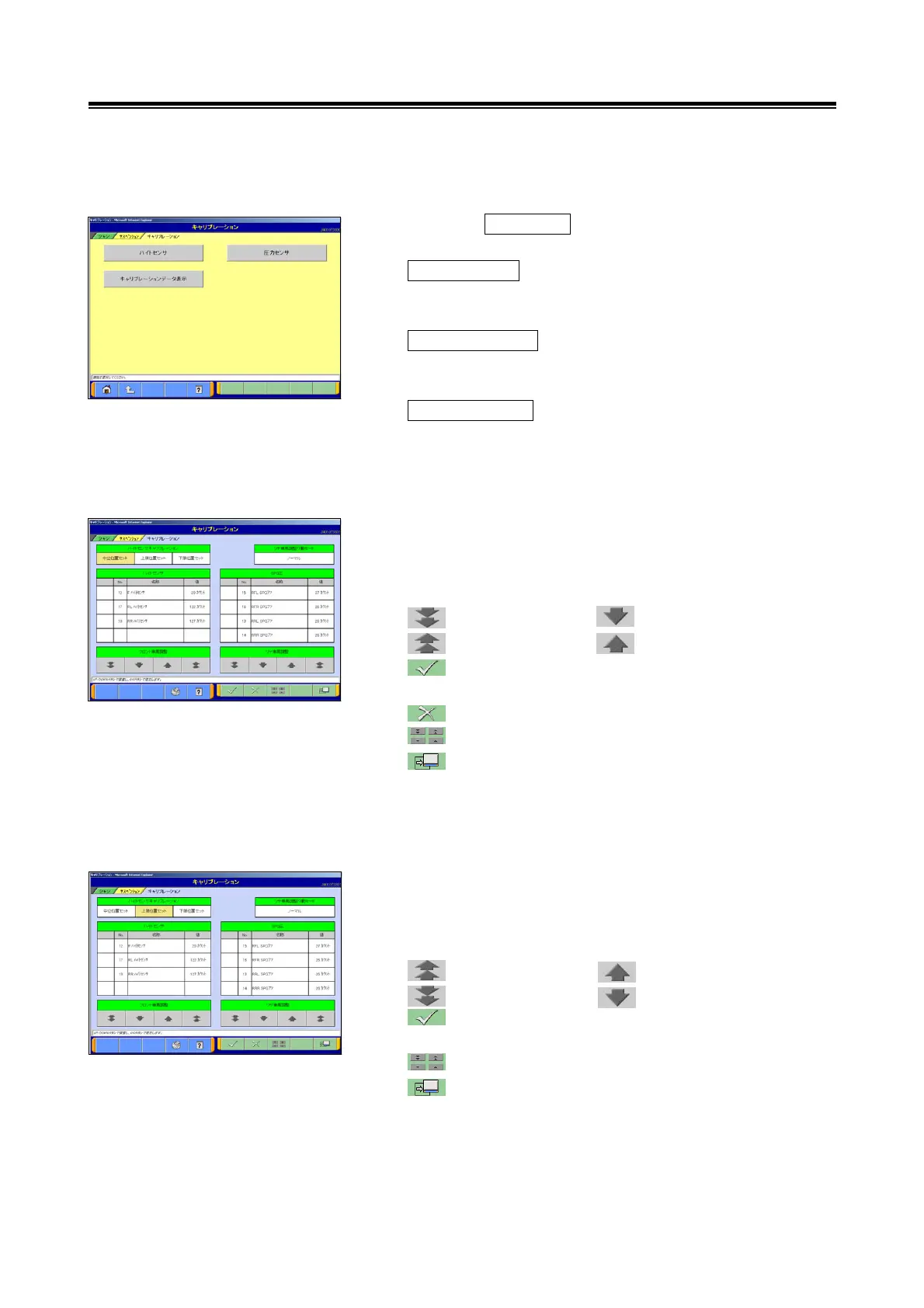

7-6. Operating Procedures for Air Suspension Calibration
7-6-1. Calibration Menu
Select the Calibration button from Suspension System.
Air Suspension calibration menu is displayed.
Height Sensor
Height sensor calibration is performed.
→ go to section 7-6-2.
Pressure Sensor
Pressure sensor calibration is performed.
→ go to section 7-6-3.
Calibration Data
Calibration data list is displayed.
→ go to section 7-6-4.
7-6-2. Height Sensor Calibration
(1) Set the Normal Level
Car height on each of the front / rear can be adjusted.
For the adjustment method, please refer to the service
guide for each vehicle.
--- greatly down --- small down
--- greatly up --- small up
--- Go to the Upper level set screen, after the
adjustment state is set.
--- Cancel : go to section 7-6-1.
--- Enlarged view of the 4 buttons : go to section (5).
--- The operate mode display: go to section (4).
For ensuring safety, the declining operation is stopped
automatically, by the consecutive operation in a given time.
(It stops after 3 Seconds for Front, 10 Seconds for Rear.)
Press the button again if you continue declining operation.
(2) Set the Upper Level
Car height on each of the front / rear can be adjusted.
For the adjustment method, please refer to the service
guide for each vehicle.
--- greatly up --- small up
--- greatly down --- small down
--- Go to the Lower level set screen, after the
adjustment state is set.
--- Enlarged view of the 4 buttons : go to section (5).
--- The operate mode display : go to section (4).
For ensuring safety, the declining operation is stopped
automatically by the consecutive operation in a given time
(It stops after 3 Seconds for Front, 10 Seconds for Rear.).
Press the button again if you continue declining operation.
