Fuso Multi Use Tester III - Exterior Diagram and Part Names

V.C.I. Exterior Diagram and Part Names
3
1-2. V.C.I. Exterior Diagram and Part Names

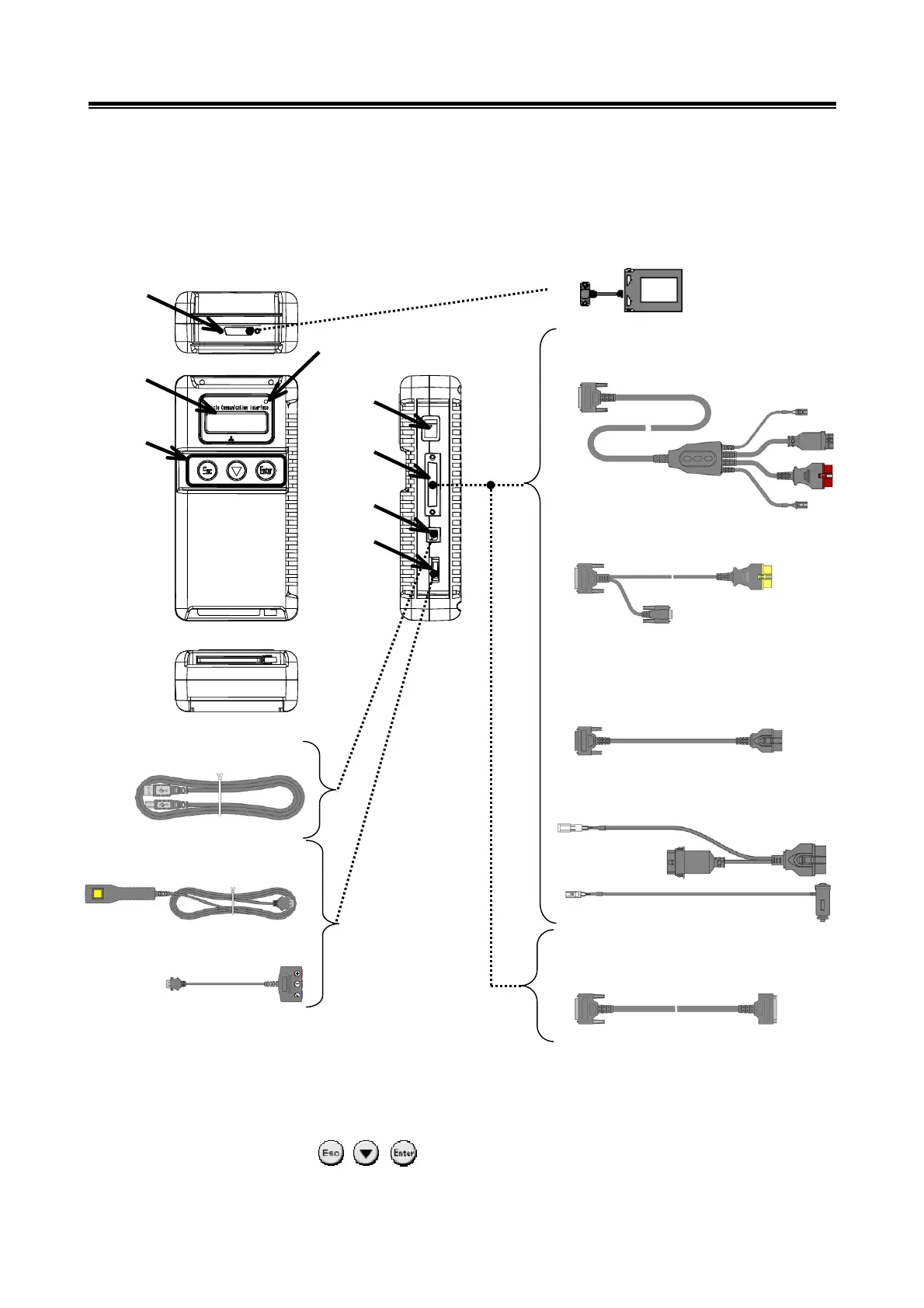

Part names for the main unit are shown in the figure below.
I/F Cartridge
Harness, MUT-III TYPE-B
(MH062962)
Harness, MUT-III TYPE-C
(MH062930)
Harness, MUT-III TYPE-E
(MH063661)
(MH063662) Only for Europe.
Sub harness for drive recorder
(MH063663)
Harness, MUT-III TYPE-D
(MH062951)
< Part Names >
1. I/F Cartridge Port 5. Power Switch
2. LCD Display Screen 6. Harness Port
3. Indicator Lamp 7. USB Port
4. Control Buttons <
, ,
>
(Used for V.C.I. stand-alone functions)
8. Trigger Port
Measuring Adapter (MH063670)
Trigger Harness (MH063669)
USB Cable (MH063668)
1
2
4
5
6
7
3
ＦＵＳＯ
8
