Model Menu (Airplane/Glider)
＞
ڀ
ŪŲŃƗƒŃŷ
ŤťůŨŃŲũŃŦŲűŷŨűŷŶ
*\URVHWWLQJ
>&RUUHVSRQGLQJPRGHOW\SH@$LUSODQHJOLGHUJHQHUDO

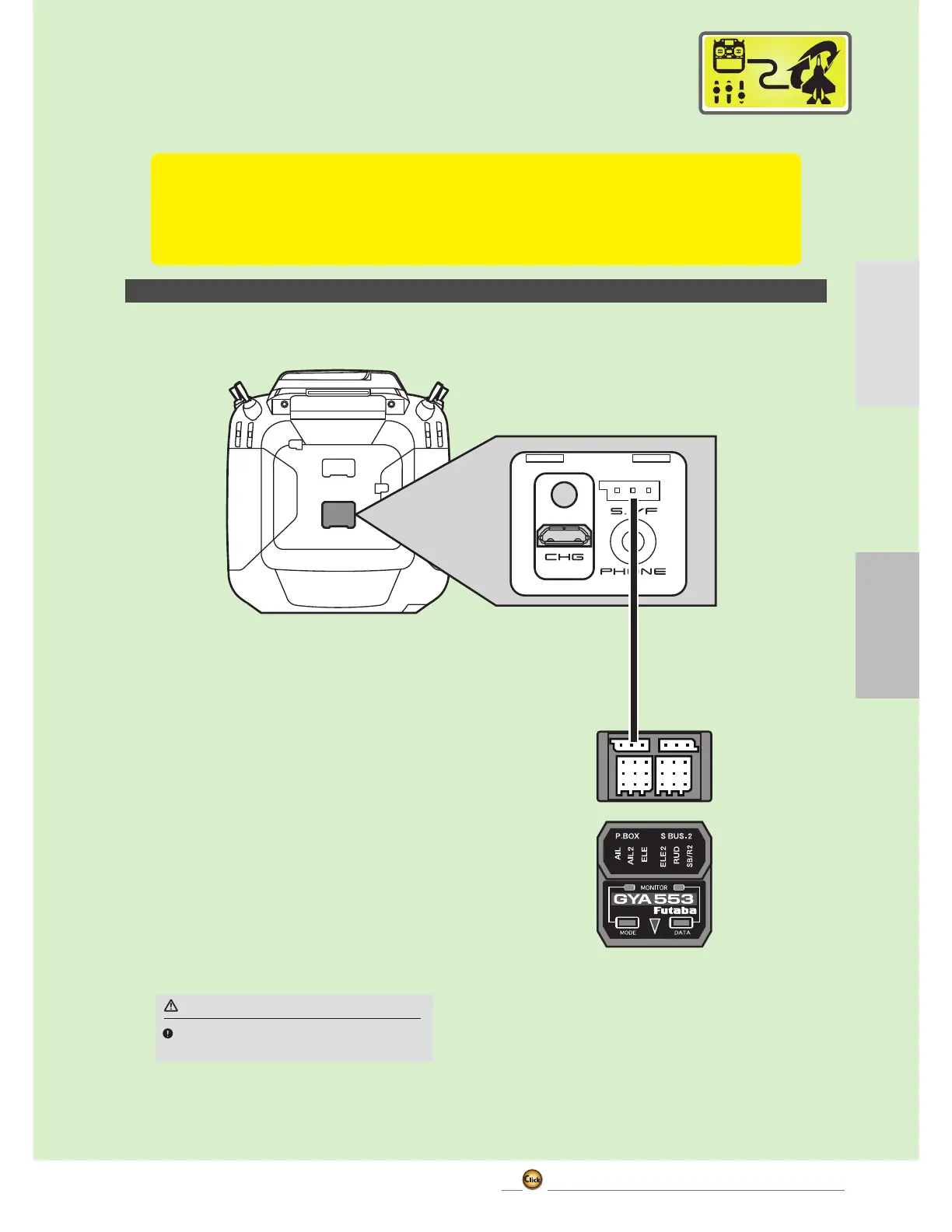

ConnectionT32MZ-WCandGY
A553
T32MZ-WC
S.I/F
GY
A553
ReceiverConnectionCable
(includedwithgyro)
ByinstallingthelatestsoftwareontheGY
A553,youcansettin
gthe
airplanegyroGY
A553ontheT32MZ-WC.
CAUTION
Be
sure
to
connect
and
disconnect
the
GYA553
andT32MZ-WCconnectioncablewiththepower
off.
$,53/$1(
*/,'(5
168
170
Table of Contents
Table of Contents
2
Introduction
5
Precautions
7
Flying Precautions
7
Battery and Charger Handling Precautions
8
Microsd Card Handling Precautions
9
Storage and Disposal Precautions
9
Other Precautions
9
Features
10
Contents
10
Transmitter
11
Cautions on Handling Antenna
11
Rotating Antenna
12
Angle Adjustment of the Antenna
12
LED Monitor
12
Toggle Switch
13
Volume
14
Back Side Switch
14
Slide Lever
14
Digital Trim
15
Touch Panel
15
HOME/EXIT & U.MENU/MON. Button
16
Stick Adjustment
17
Battery Exchange
20
Battery Charging
22
Microsd Card (Sold Separately)
23
Connector for Trainer Function (TRAINER)
24
S.BUS Connector (S.I/F)
24
Audio Plug (PHONE)
24
Connector for Battery Charger (CHG)
24
Adrcss 900Mhz/Crsf Connector
24
Receiver
25
S.bus2
25
Antenna Instructions
25
Channel Modes
26
Dual Rx Link System
26
How to Change to Dual RX Link Mode
27
Fasstest12Ch
27
How to Dual Rx Link
28
Telemetry for Fasstest12Ch
28
Receiver Switch ESW-1J
28
Servo (Option)
28
Toolbox
29
Safety Precautions When You Install Receiver and Servos
29
Basic Operation
30
How to Turn ON/OFF the Power Ofthe Transmitter 3
30
Quick Start
30
Home Screen
31
Sub-Display
32
Link Procedue (T32MZ-WC ↔ R7208SB)
33
Model ID
34
How to Change the Number of Value
35
How to Activate the Function
35
How to Return to Home Screen or Go Back One Step
35
Page of each Setting Screen
35
Switch Selection
36
Display of Operation Status
36
Home2 Screen
37
Panel Lock
37
Registration of the User's Name
38
Updating
39
Specifications
40
Compatibility of Fasstest26Ch with Receivers
41
About Fasstest26Ch S.BUS2 Connect and Servos
41
Model Basic Setting Procedure
42
Airplane/Glider Basic Setting Procedure
42
Helicopter Basic Setting Procedure
44
Servos Connection by Model Type
48
System Menu
53
Trainer
54
Display
57
Date and Time
58
User Name
59
Switch
60
H/W Setting
61
Sound Volume
64
Player
65
S.BUS Servo
66
Dlph-2
70
Receiver
71
Information
72
Unit System
73
Range Check
74
Linkage Menu
75
Servo Monitor
76
Model Select
77
Model Type
78
80
Sound
81
System Type
83
Function
86
Sub-Trim
88
Sub-Trim → Balance
89
Servo Reverse
91
Fail Safe
92
End Point (ATV)
93
Throttle Cut
94
Idle down
95
Swash Ring
96
Swash
97
Timer
99
Dial Monitor
101
Function Name
102
Telemetry
103
Audible Telemetry Information
104
A Setup of each Sensor Display
105
Receiver Battery Display
105
Temperature Display
106
RPM Display
106
Altitude Display
107
Variometer Melody Function
107
Vario Melody Setting
108
GPS Display
109
Voltage Display
111
Current/Voltage/Capacity Display
112
Servo Sensor Display
113
Airspeed Sensor Display
114
ESC Display
115
Sensor
116
Sensor Name
121
Telemetry Setting
122
Warning
124
Data Reset
125
User Menu
126
Condition Hold
127
