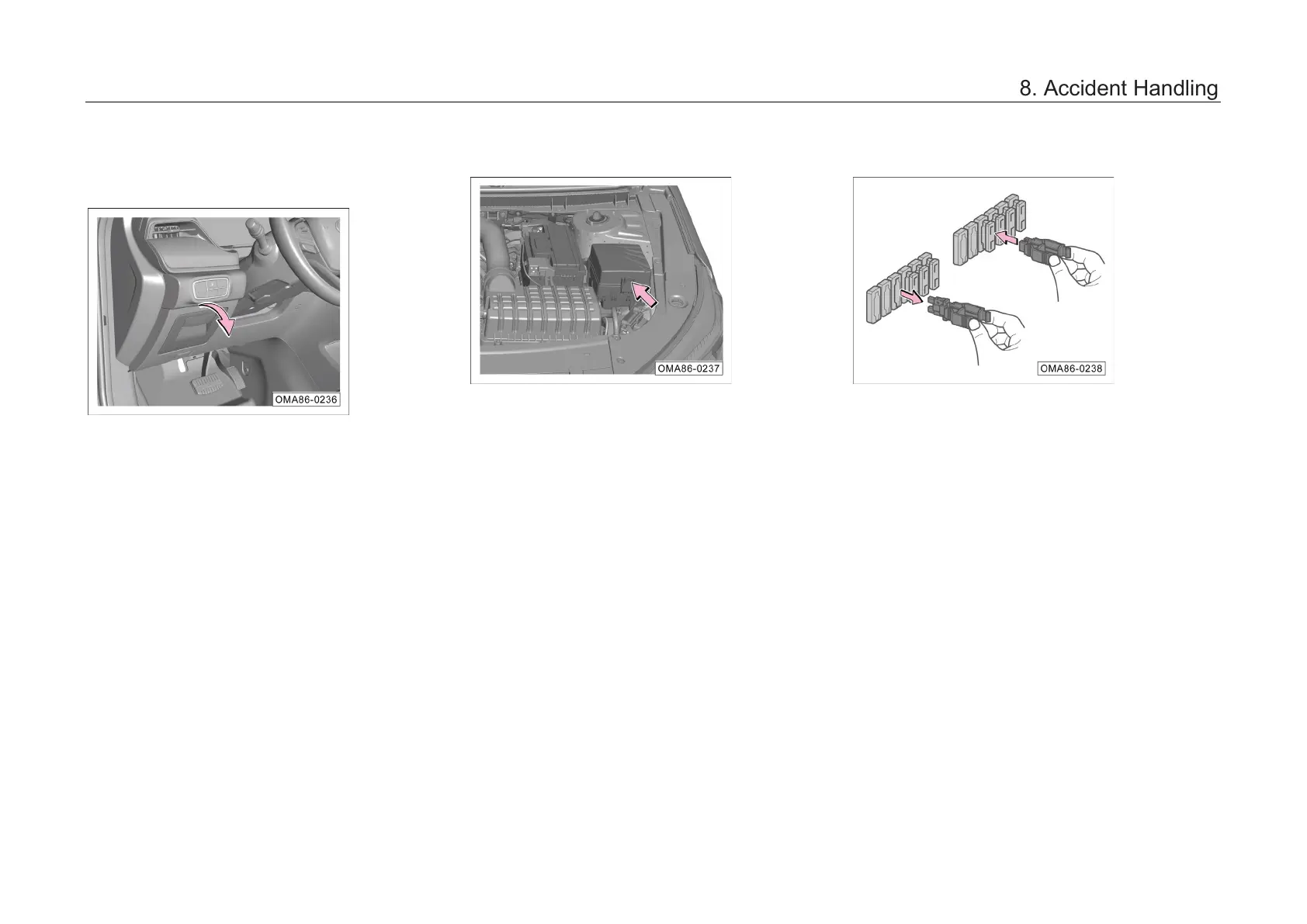

8.6 Fuse
Instrument panel PDU
–
Open the cab lower protective plate storage
box in the arrowed direction and pull it out to
see the fuse above the instrument panel
PDU.
Engine compartment PDU
– Open the engine hood.
– Press the fix
ing clip in the arrowed direction to
release the cover of the PDU.
– Remove the cover of the PDU to see the fuse
above the engine compartment PDU.
Replace the fuse
– Pull out or install the
fuse using the fuse puller
in the engine compartment PDU.
