5
3. Installing the Controller in the System

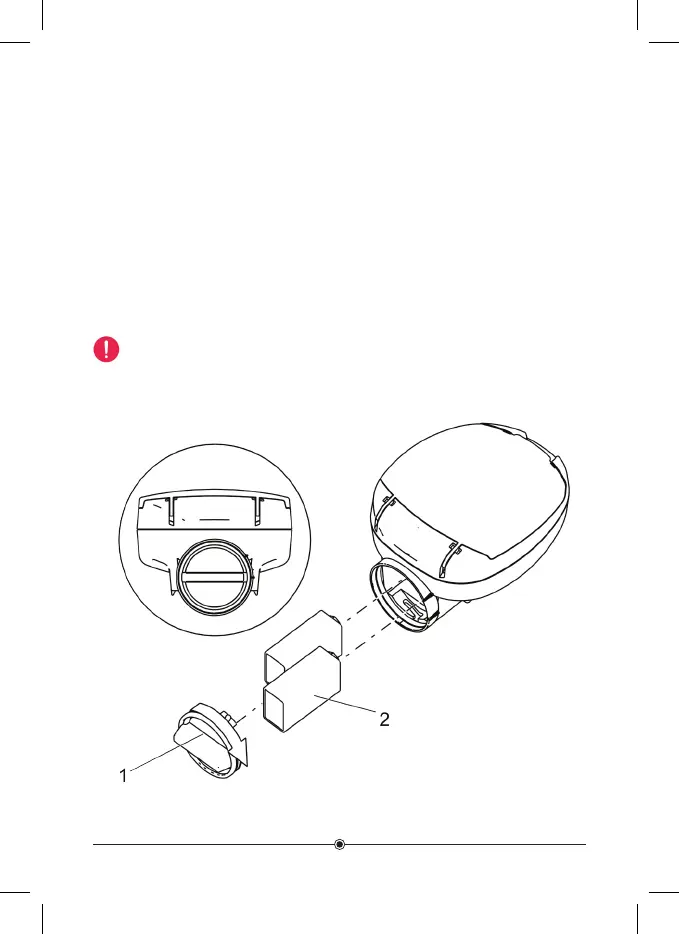

3.1 Battery Connection
a. Open the battery compartment cover (1).
b. lnsert the batteries according to your model (for 9V controller one battery
needs to be inserted, and for 18V two batteries) (2).
NOTE - AII controller display elements appear briefly on the display,
followed by a blinking at 12:00. The controller is now ready to be
programmed.
Replace the battery compartment cover, making sure the pins are in
place, and then rotate the cover 1/8 of a turn to the right. Be sure to do
so, otherwise the battery cover pins might break!
