Garmin ECHOMAP UHD User Manual

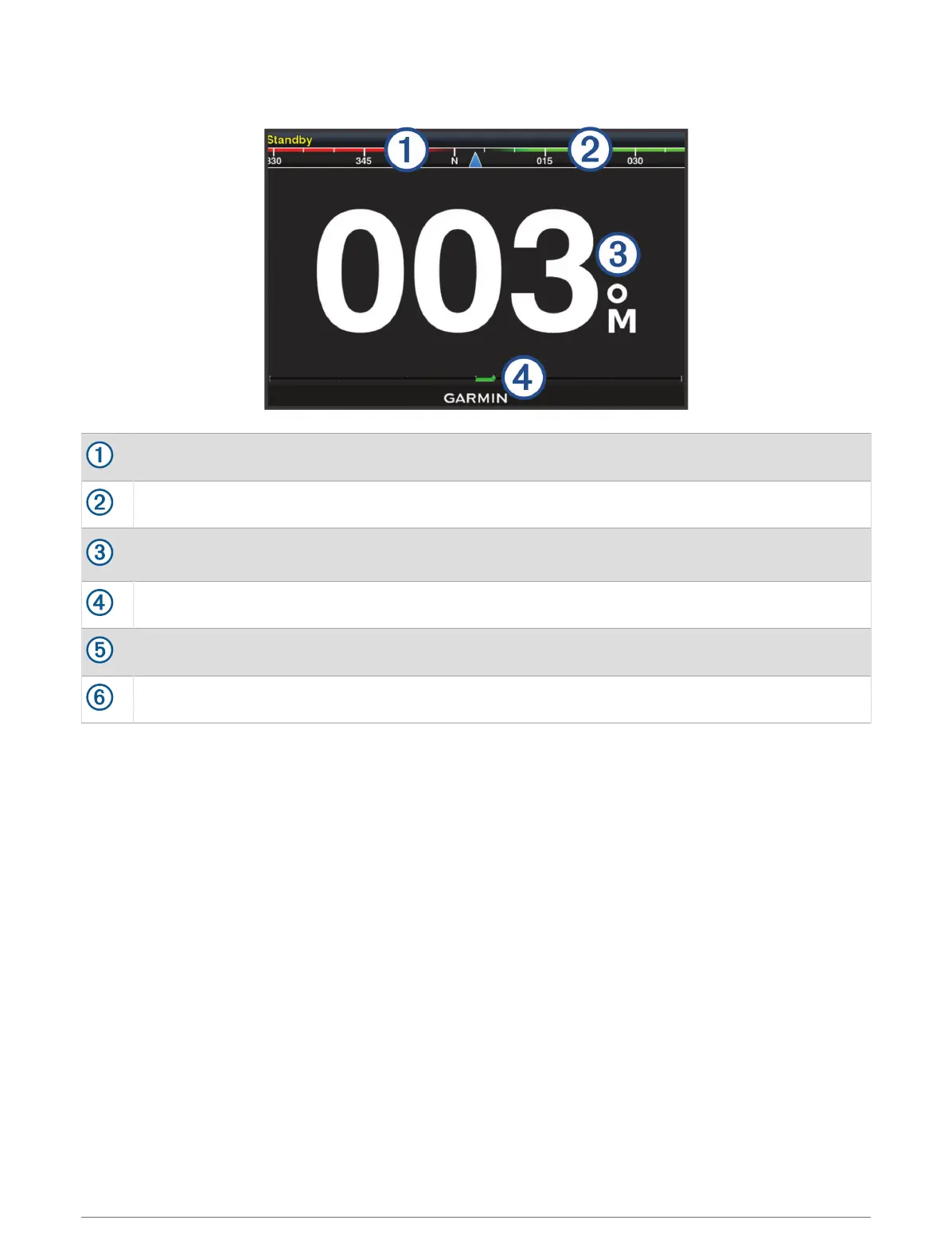

Autopilot Screen
Actual heading
Intended heading (heading the autopilot is steering toward)
Actual heading (when in standby mode)
Intended heading (when engaged)
Rudder position indicator (available when a rudder sensor is connected)
Step turn to port (to adjust the intended heading by amount shown)
Step turn to starboard (to adjust the intended heading by amount shown)
Adjusting the Step Steering Increment
1 From the autopilot screen, select Menu > Autopilot Setup > Step Turn Size.
2 Select an increment.
Setting the Power Saver
You can adjust the level of rudder activity.
1 From the autopilot screen, select Menu > Autopilot Setup > Power Mode Setup > Power Saver.
2 Select a percentage.
Selecting a higher percentage reduces rudder activity and heading performance. The higher the percentage,
the more the course deviates before the autopilot corrects it.
TIP: In choppy conditions at low speeds, increasing the Power Saver percentage reduces rudder activity.
74 Autopilot

Garmin ECHOMAP UHD Specifications

General

Water Rating	IPX7
Routes	100
Sonar	Yes (CHIRP, ClearVü, SideVü)
GPS	Yes
Preloaded Maps	Yes
Network Support	Yes, Garmin Marine Network
Wi-Fi	Yes
Mounting Options	Flush mount
Antenna	Internal
Transmitter Power	500W (RMS), 4000W (peak to peak)
Sonar Frequencies Supported	ClearVü/SideVü: 260/455/800 kHz
Maximum Depth	2, 300 ft (freshwater)
Wireless Connectivity	Wi-Fi
