Garmin ECHOMAP UHD User Manual

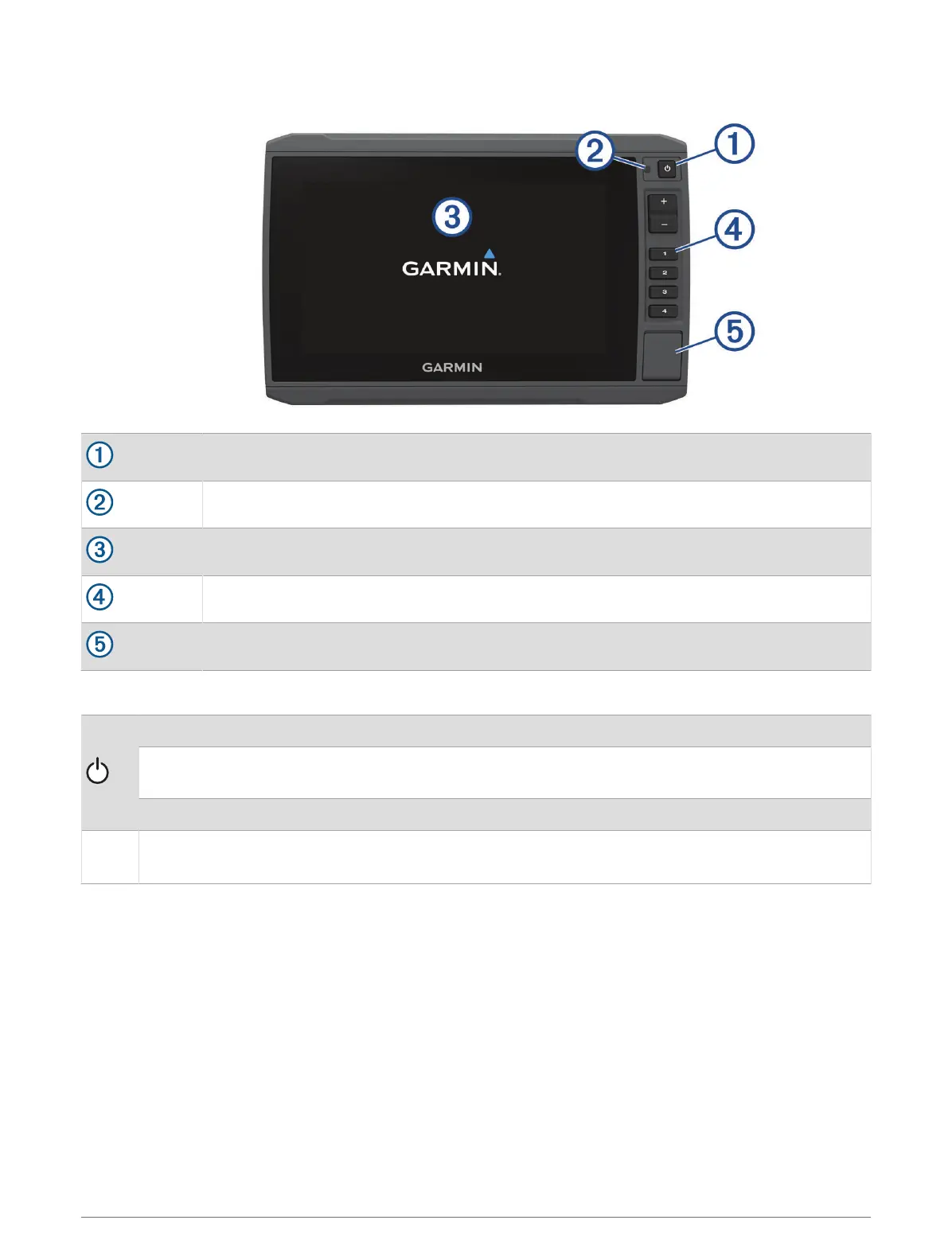

ECHOMAP UHD 70/90 Front View
Power key
Automatic backlight sensor
Touchscreen
Shortcut keys
microSD memory card slot
Device Keys
Turns on and off the device when held.
Opens a shortcut menu to backlight, color mode, and sonar transmission when quickly pressed and
released.
Scrolls through the brightness levels when pressed repeatedly.
1 2 3 4
Assigns a shortcut key to the active screen when held.
Opens the assigned screen when pressed.
Introduction 3

Garmin ECHOMAP UHD Specifications

General

Water Rating	IPX7
Routes	100
Sonar	Yes (CHIRP, ClearVü, SideVü)
GPS	Yes
Preloaded Maps	Yes
Network Support	Yes, Garmin Marine Network
Wi-Fi	Yes
Mounting Options	Flush mount
Antenna	Internal
Transmitter Power	500W (RMS), 4000W (peak to peak)
Sonar Frequencies Supported	ClearVü/SideVü: 260/455/800 kHz
Maximum Depth	2, 300 ft (freshwater)
Wireless Connectivity	Wi-Fi
