Garmin ECHOMAP UHD User Manual

Creating a New Combination Page with the ECHOMAP UHD 60
You can create a custom combination page to suit your needs.
1 Select Combos > Customize > Add.

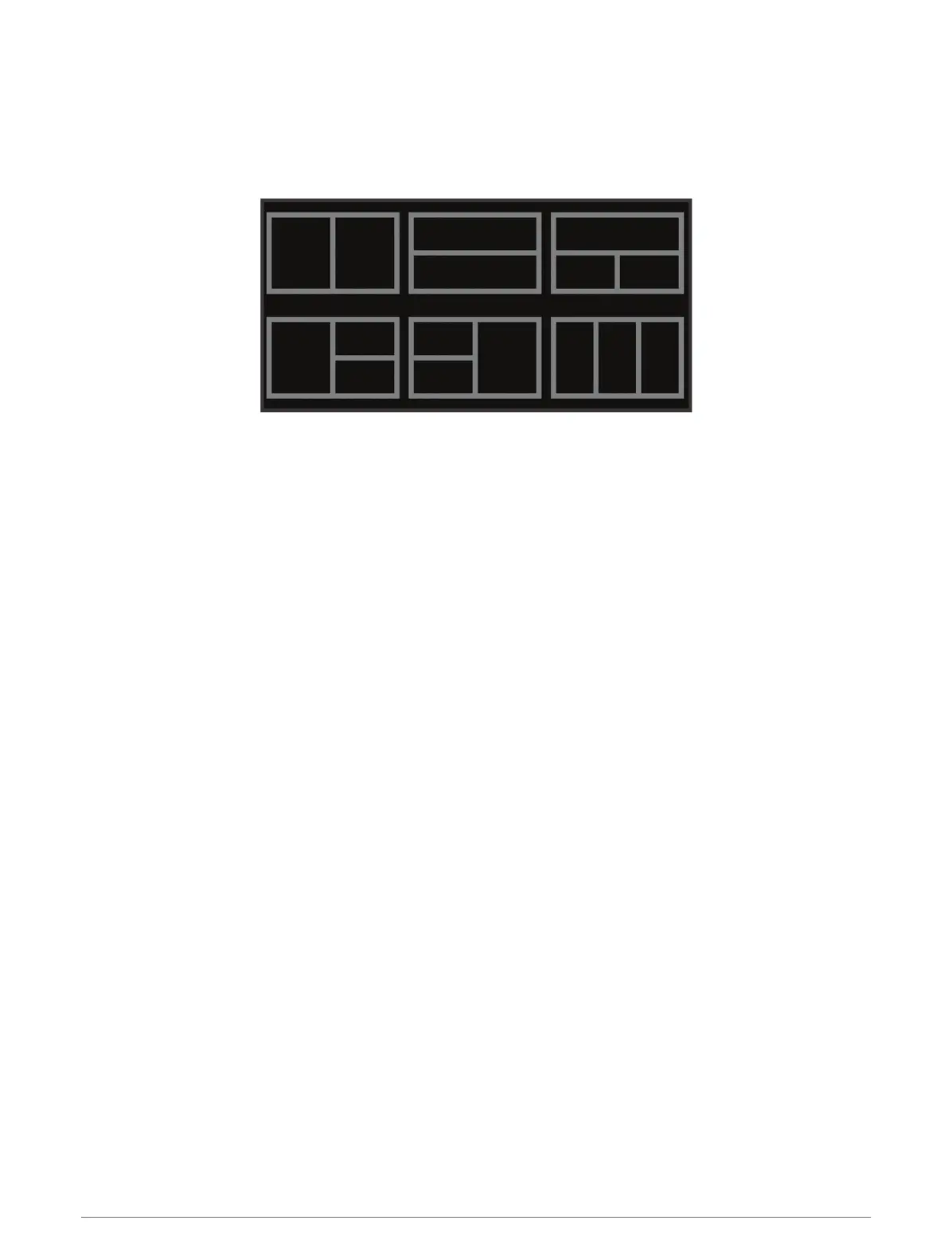

2 Select a layout.
3 Select an area.
4 Select a function for the area.
5 Repeat these steps for each area of the page.
6 Select Data, and customize the data shown.
7 Select Next when you are done customizing the page.
8 Enter a name for the page, and select Done.
9 Use the arrow keys to resize the windows.
10 Select to Back to exit.
Customizing the Chartplotter 7

Garmin ECHOMAP UHD Specifications

General

Water Rating	IPX7
Routes	100
Sonar	Yes (CHIRP, ClearVü, SideVü)
GPS	Yes
Preloaded Maps	Yes
Network Support	Yes, Garmin Marine Network
Wi-Fi	Yes
Mounting Options	Flush mount
Antenna	Internal
Transmitter Power	500W (RMS), 4000W (peak to peak)
Sonar Frequencies Supported	ClearVü/SideVü: 260/455/800 kHz
Maximum Depth	2, 300 ft (freshwater)
Wireless Connectivity	Wi-Fi
