Model 560XL Appendix – Systems Description
190-02313-03 Rev. 8 Textron Aviation Citation 560XL
A-19

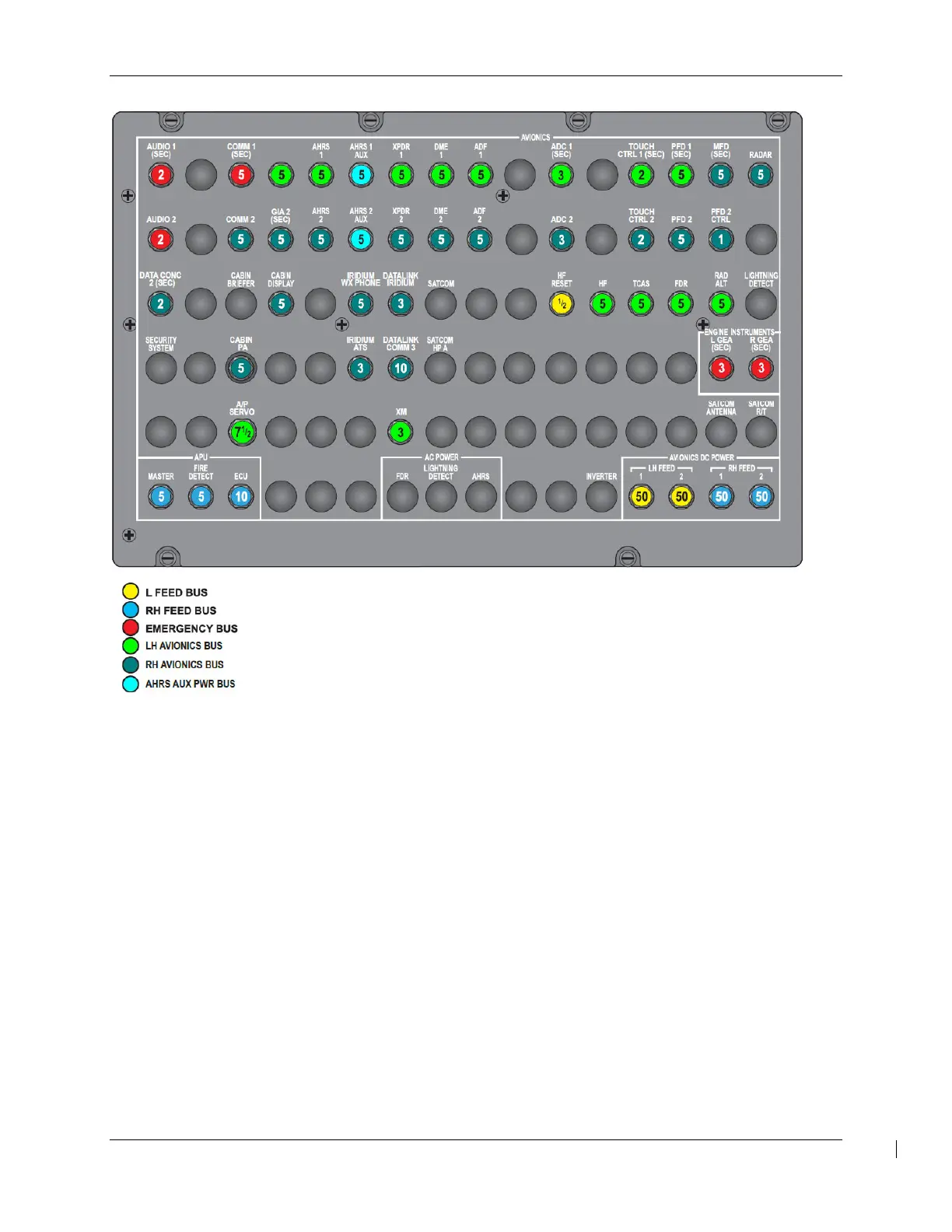

Figure A-5, Right Circuit Breaker Panel
Lighting Systems
Cockpit
The original lighting dimming controls are all retained on the instrument panel, and their function is
essentially unchanged.
Dimming Panel
A Display Format and Dimming panel (DFD) is located on the center pedestal which contains five
dimming controls for the G5000 displays. See Figure A-3 of this AFMS. These controls are labeled
PFD 1, MFD, PFD 2, GTC 1, and GTC 2. These dimming controls will be activated and will control the
display brightness when the PANEL LIGHT switch on the pilot’s instrument panel is set to ON. If the
PANEL LIGHT switch is set to OFF, these controls are deactivated.
