Gasboy 9800A Series - LCD Display PCB

Electronic Head Assembly
03/07/03
3-9

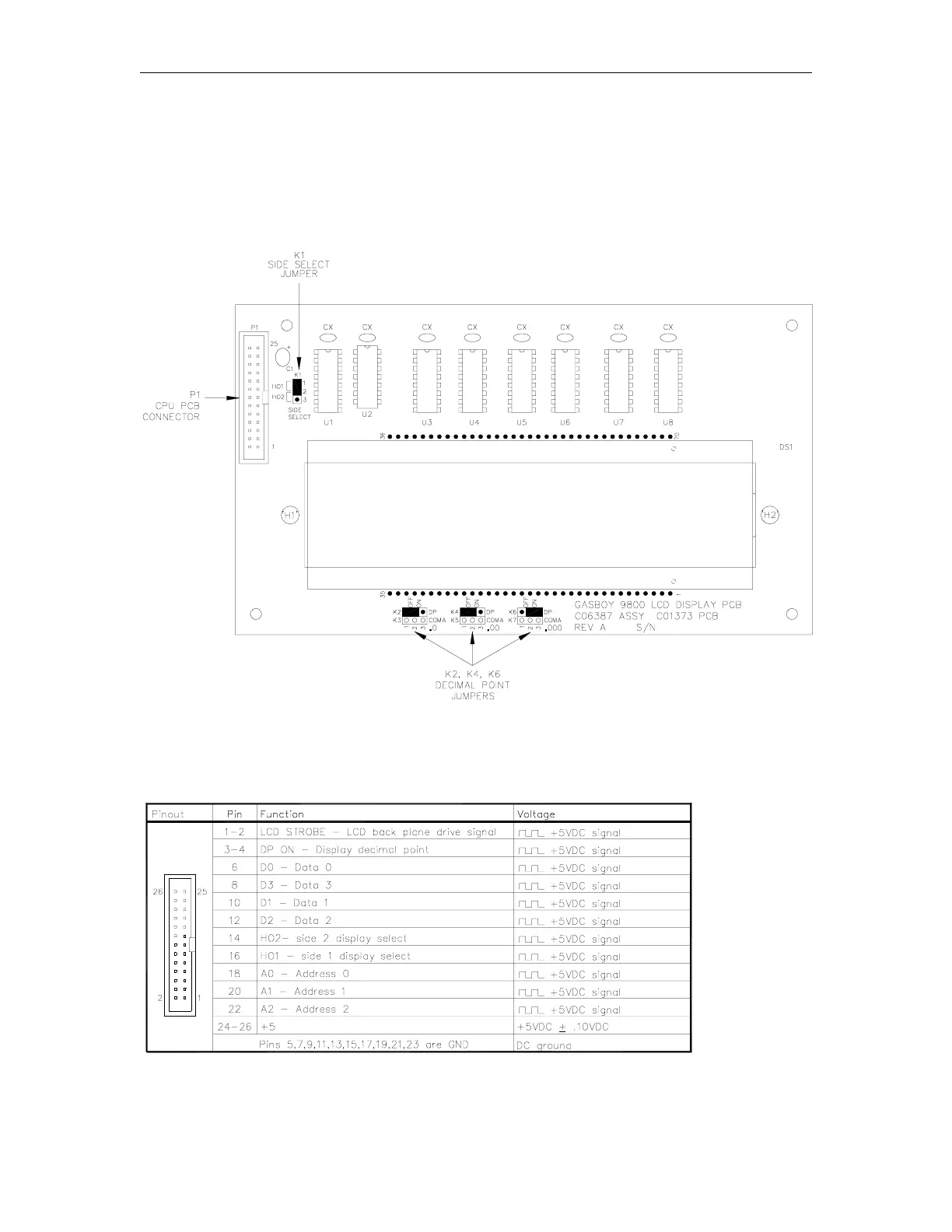

LCD DISPLAY PCB (C01373)
The LCD Display PCB contains the quantity display viewed by the user. This PCB:
• displays the quantity per sale, totalizer data, and diagnostic information
Connector
P1 - CPU PCB Interface
