Gasboy 9800A Series - Sale Backlight PCB

Electronic Head Assembly
03/07/03
3-11

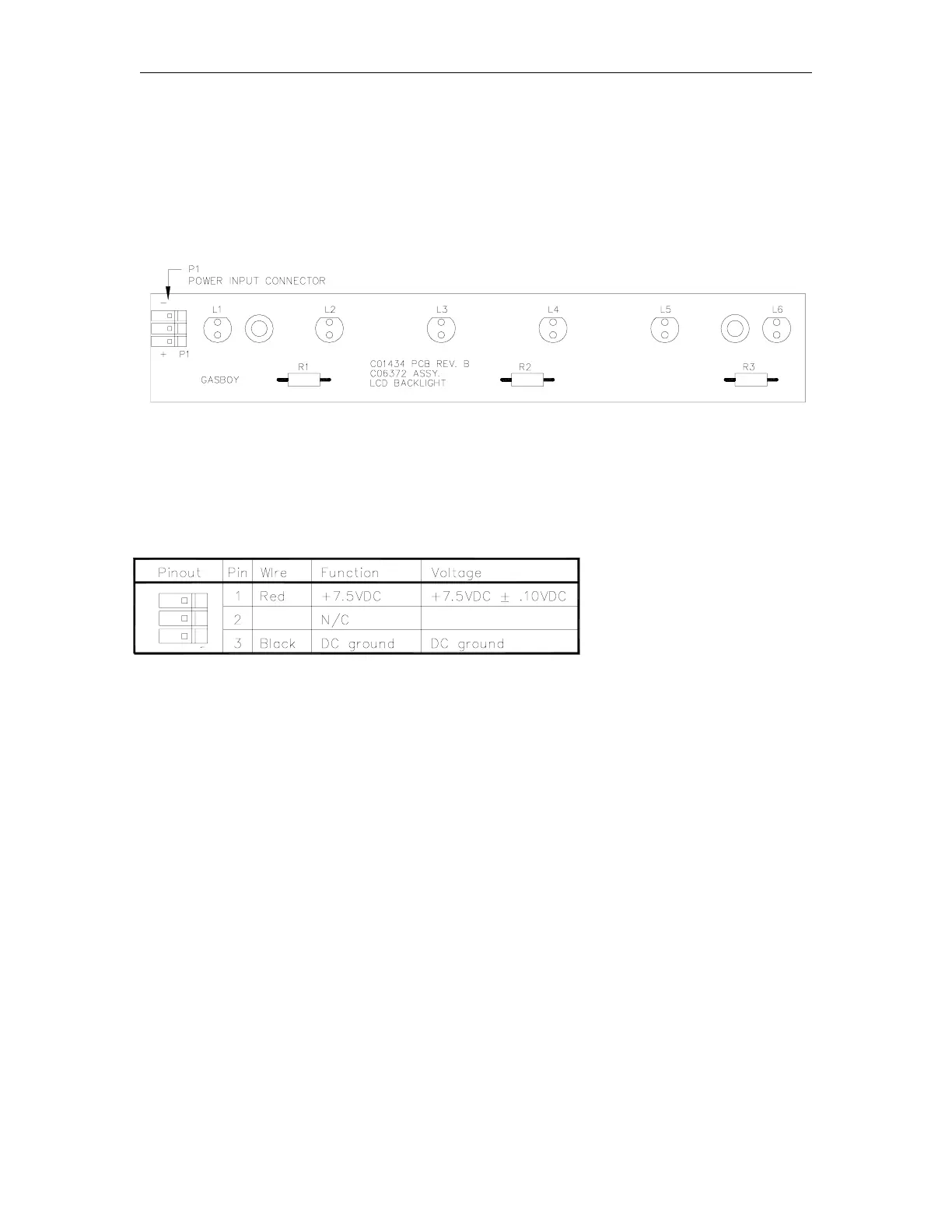

SALE BACKLIGHT PCB (C06372)
The backlight PCB illuminates the LCD display for night viewing. This PCB:
• attaches to the 9800A LCD display PCB
• combines long-life, super-bright LED’s with a reflector for increased surface illumination
Connector
P1 - Power Input Connector
