REPLACING THE SALE BACKLIGHT PCB

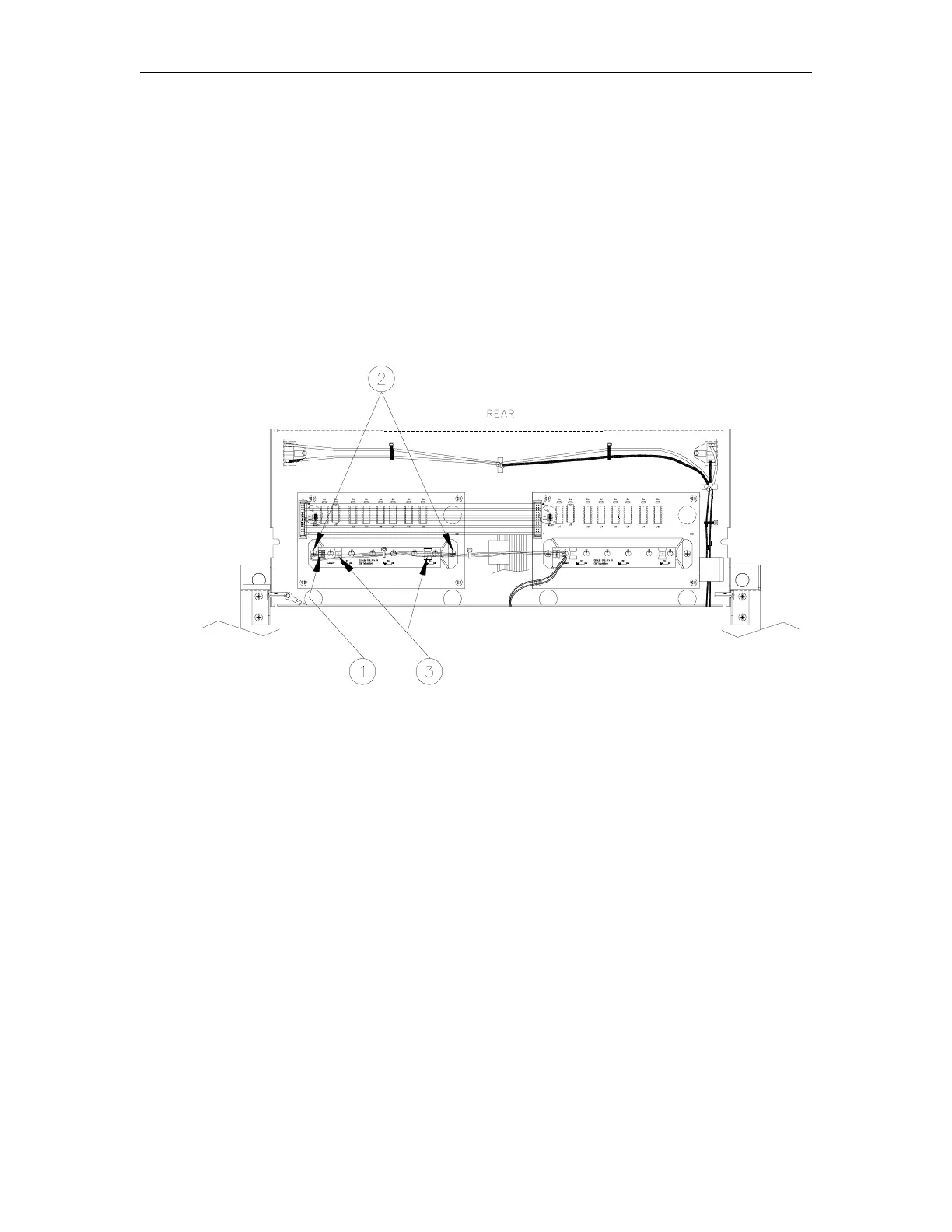

1. Disconnect the cable [1] from the Sale Backlight PCB.
2. Remove the two Phillips screws [2] and washers securing the Sale Backlight PCB to the
LCD Display PCB.
3. Unsnap and remove the two plastic buttons [3] securing the Sale Backlight PCB to the
reflector.
4. Reverse Steps 1 through 3 to install the new Sale Backlight PCB.
