GASBOY Series 9800A
5-14 03/07/03
REPLACING THE HEATER CABLE ASSEMBLY
1. The platform assembly must be removed in order to
replace the heater cable assembly. See Replacing
the Platform Assembly earlier in this section.
Proceed to Step 2 once platform assembly is
removed.

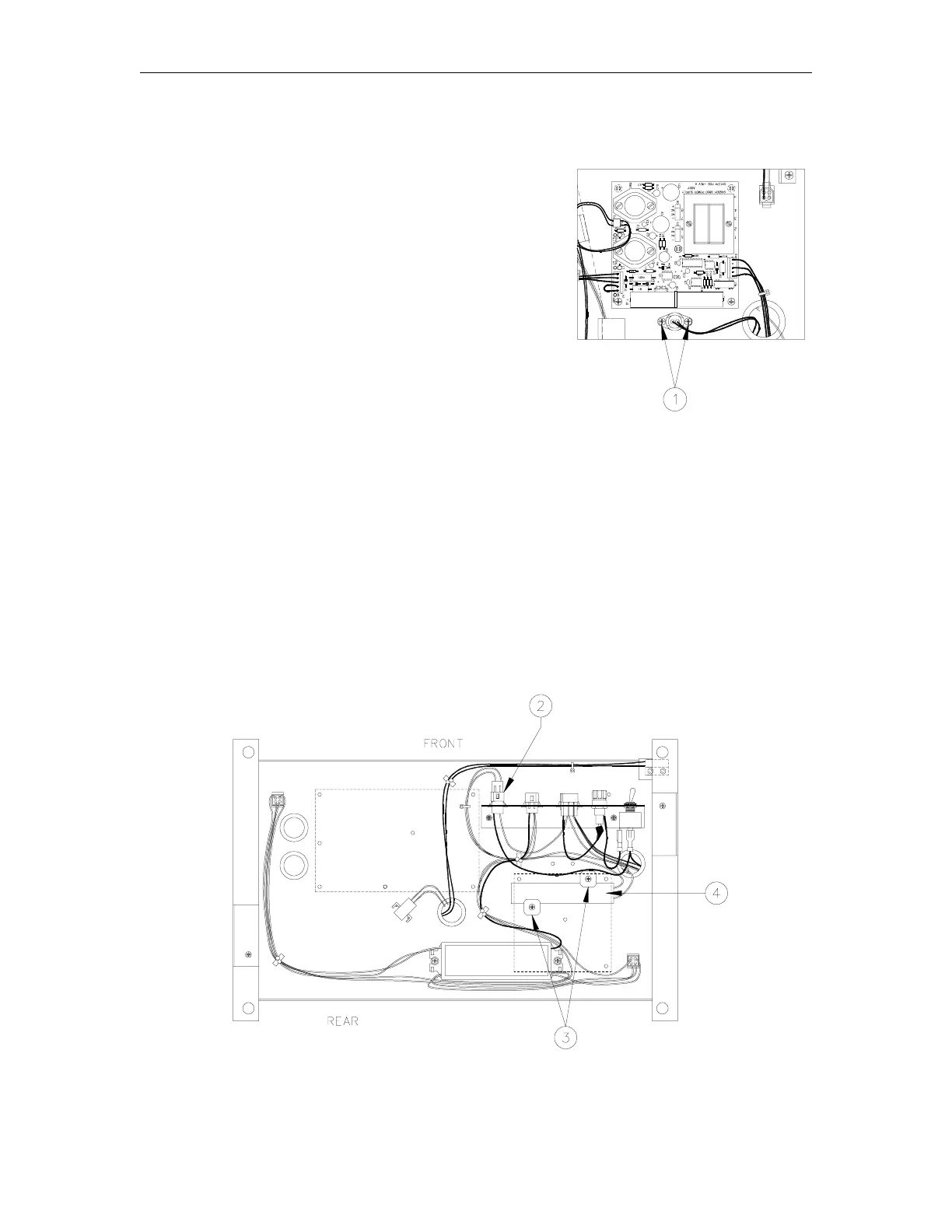

2. Remove the two Phillips screws [1] securing the
thermostat to the platform. Push the thermostat
through the bushing.
3. Disconnect the HEATER connector [2] from the power bracket.
4. Remove the two Phillips screws [3] and fiber washers retaining the heater strip.
5. Peel the heater strip [4] from the platform.
6. Remove backing from the new heater strip and secure it to the platform in the same position
as the old heater.
7. Reverse Steps 2 through 4 to install the new heater cable assembly. See Replacing the
Platform Assembly earlier in this section to complete the procedure.
