Gasboy 9800A Series - Pump Relays

GASBOY Series 9800A
3-18 03/07/03

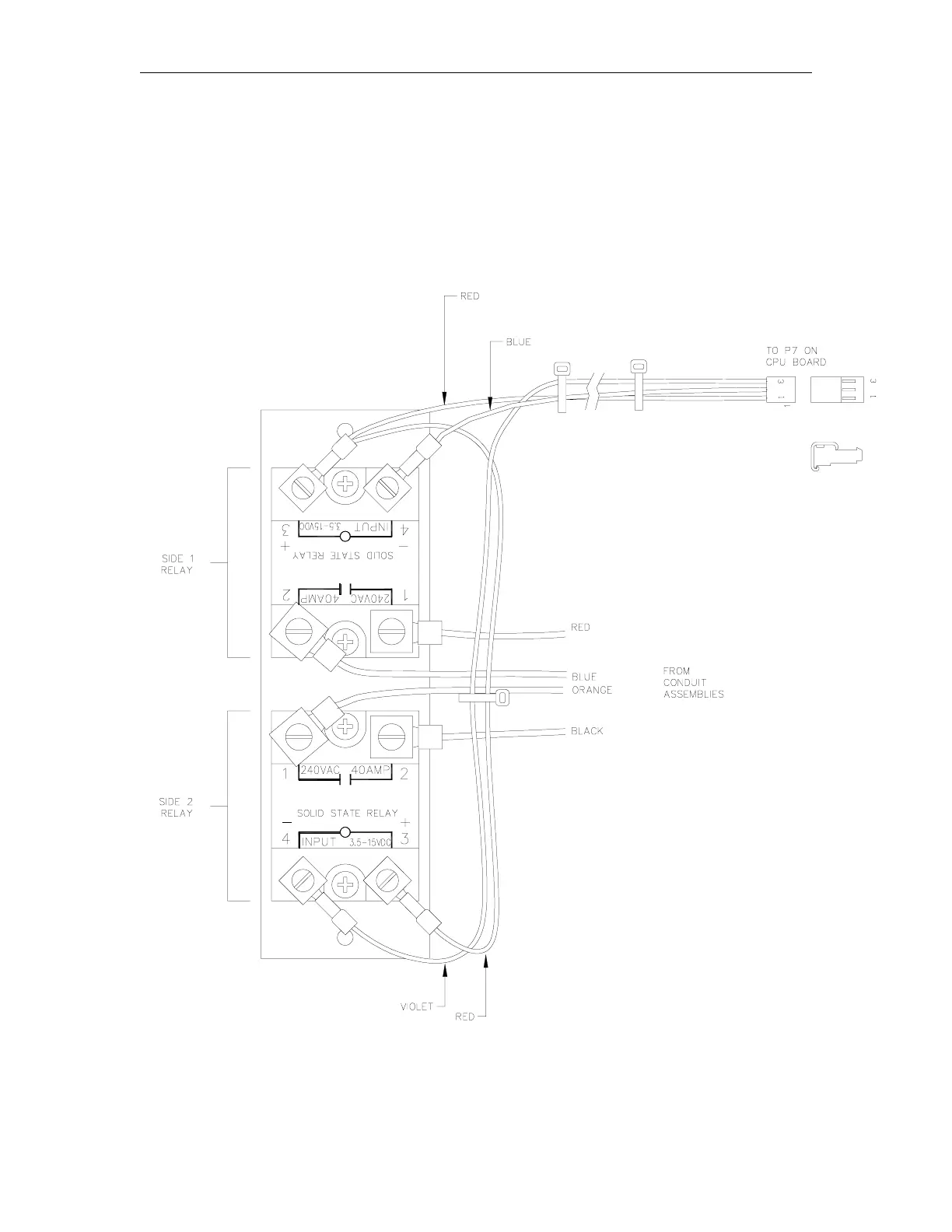

PUMP RELAYS
The pump relays are always used for suction pumps and may be used for submersible pumps up
to and including 1-1/2 HP at 230 VAC. These relays:
• control the motor that drives the suction or submersible pump (one each side)
• are controlled by the CPU PCB
