GASBOY Series 9800A
3-16 03/07/03
POWER SUPPLY PCB
115 VAC (C06396)
Battery-Backed 115 VAC (C06397)
230 VAC (C06488)
Battery-Backed 230 VAC (C06489)
The power supply PCB provides:
• +5VDC logic power and +7.5VDC LED backlight power
• diagnostic LED’s to monitor DC voltages
• a signal to warn the microprocessor of an impending power failure
• rechargeable battery-backup to display last transaction for a minimum of 15 minutes (C06397
and C06489 versions).

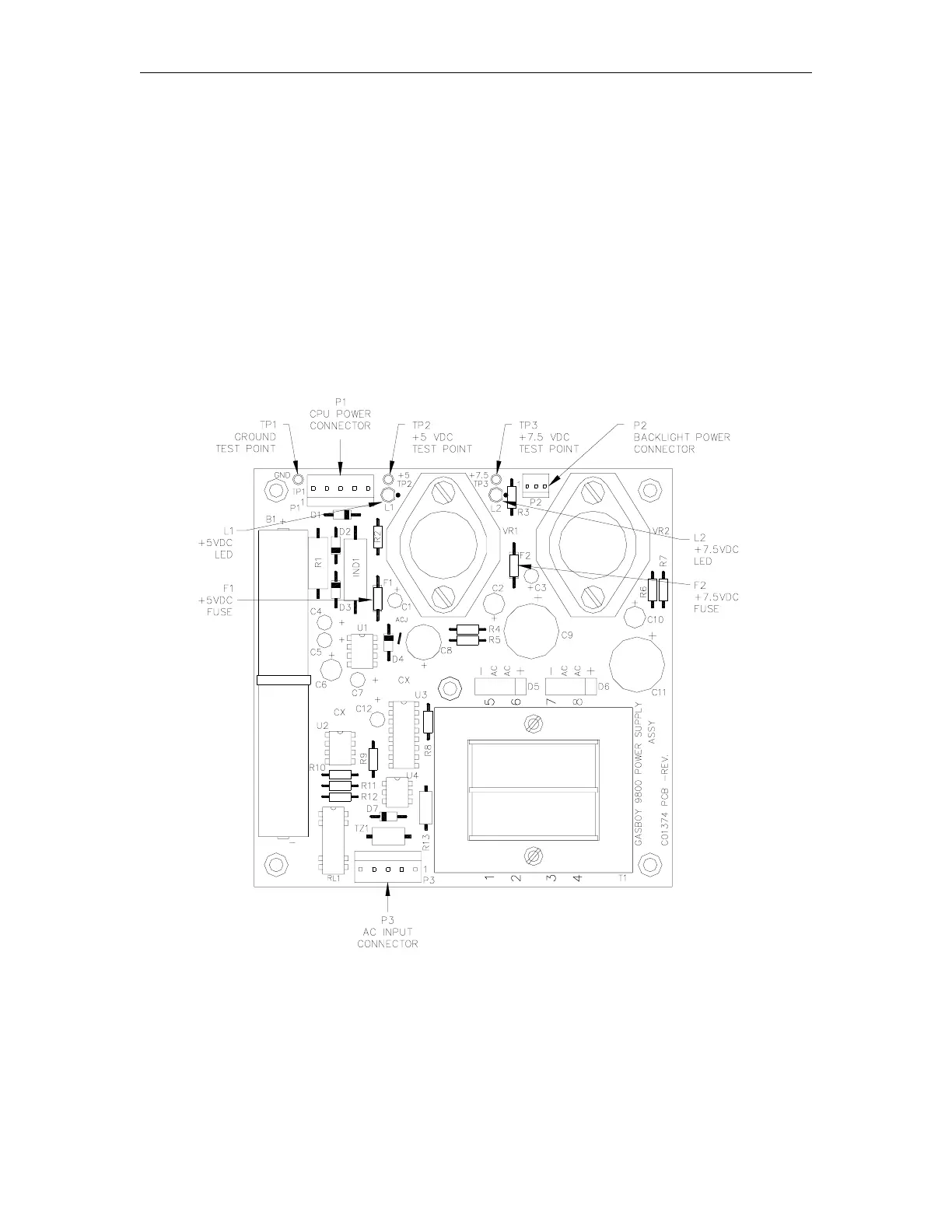

Version shown is C06397.
