Gasboy 9800A Series - Connectors; LED Indicators; Test Points

Electronic Head Assembly
03/07/03
3-17

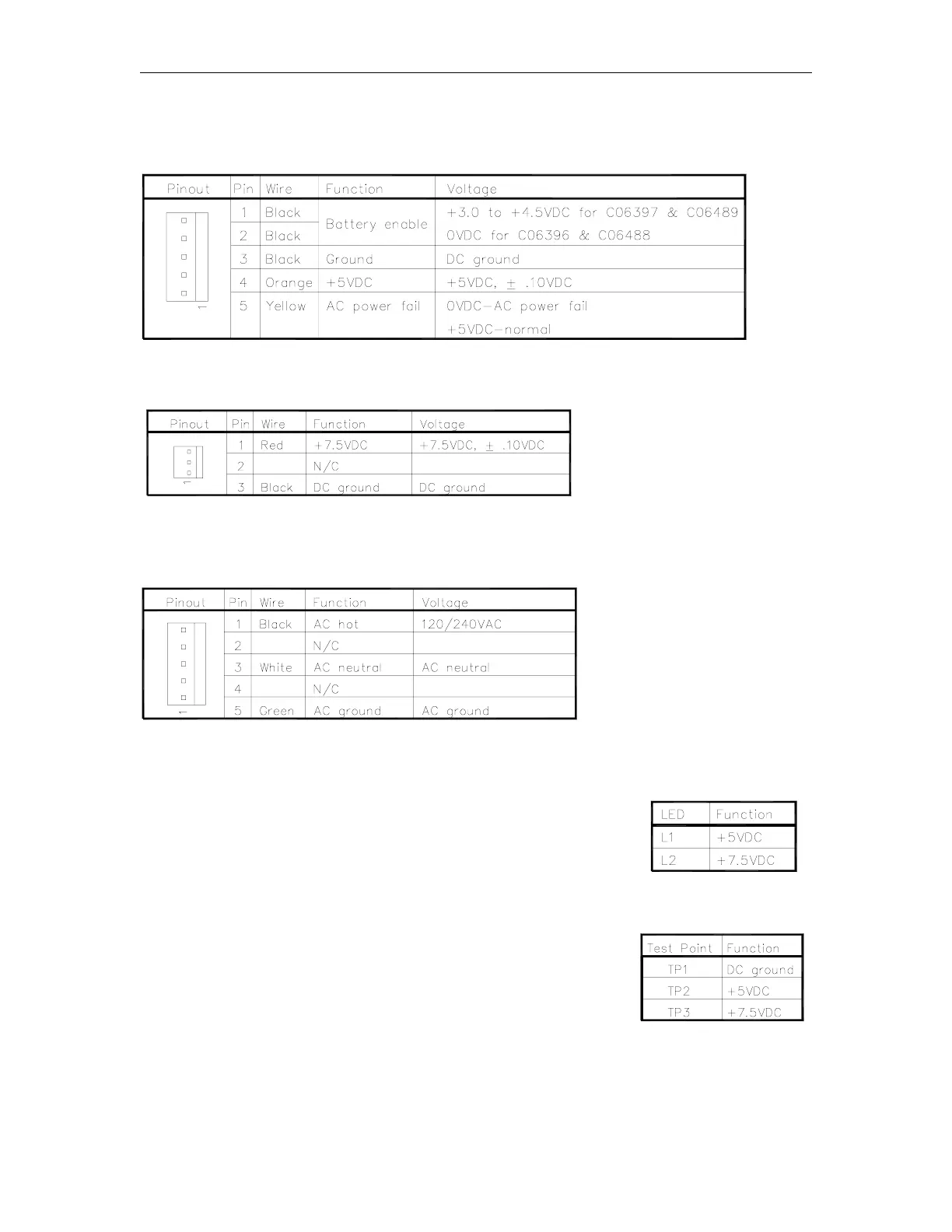

Connectors
P1 - CPU Power Output
P2 - Backlight Power Output
P3 - AC Input
LED Indicators
LED indicators are provided to allow you to monitor the DC voltages.
Test Points
Test points are provided for voltage measurement.
