Chapter 1: Checking Out Your Gateway M675
www.gateway.com
Bottom

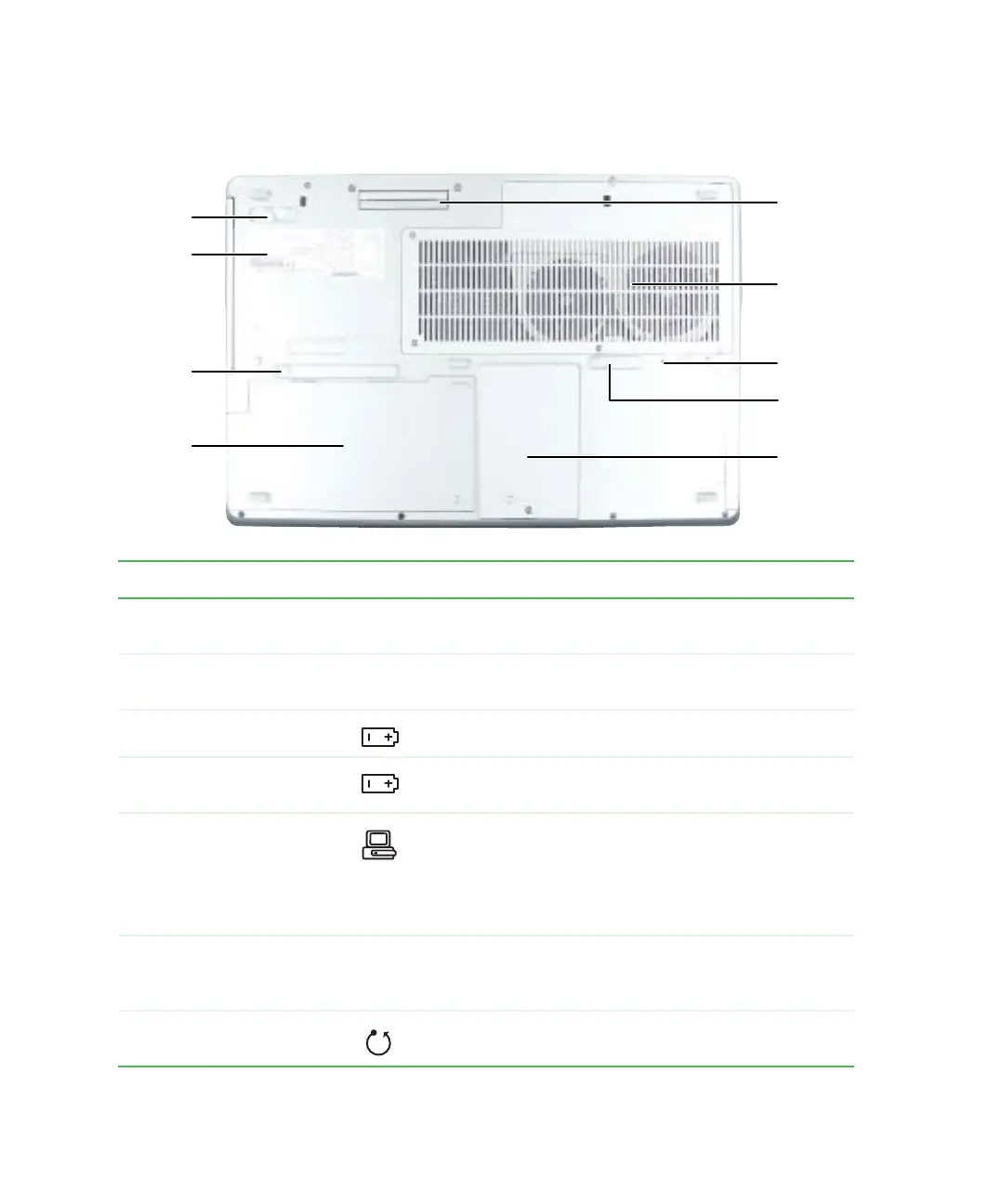

Component Icon Description
Module latch Slide to release the module For more information, see
“Changing modules” on page 105.
System label Includes the product model number. For more
information, see “Identifying your model” on page 12.
Battery latch Slide to release the battery.
Battery bay Insert the battery into this bay. For more information, see
“Changing batteries” on page 171.
Docking port Connect the port replicator to this port.
Warning! Power is passed through this port. This
docking connection is certified to UL 1950 for use only
with port replicators designed for your Gateway
notebook.
Memory bay cover Open this cover to install a memory module. For more
information, see “Adding or replacing memory” on
page 259.
Reset hole Insert a straightened paper clip into this hole to manually
restart the notebook.
Docking
port
Memory
bay
cover
Hard
drive
bay
Battery
bay
Battery
latch
System
label
Module
latch
Module
latch
Reset
hole
