Instructions for SL500DCL/SL800DCL
www.gatexpertstore.com
Open Position
· Position gate 150-200mm back from the gate stop open position. This will help in making sure
you do not slam the gate into the end stop/catch when setting the open position under power.
· Fit limit switch stop onto the top of chain at the point where it meets the magnetic limit switch on
the motor.
· Tighten locking screws of limit switch stop.
Test the magnetic limit switch stops by moving the gate manually until you hear a click, making sure
contact is made with the magnetic limit switch on the motor.

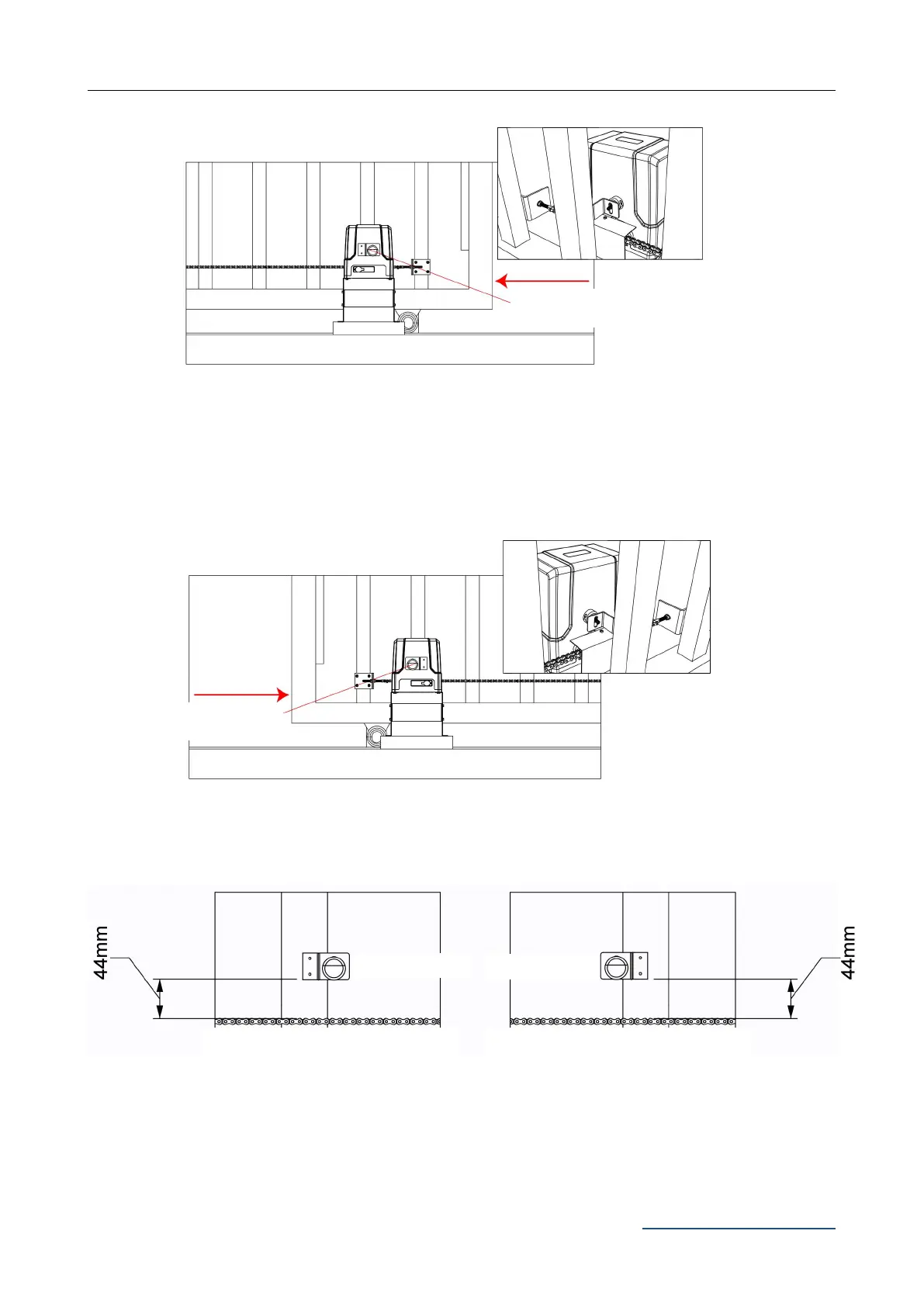

Figure 15
Magnetic limit switch
switch
Magnetic limit switch
switch
Open Position Limit Switch Stop
Closed Position Limit Switch Stop
