Instructions for SL500DCL/SL800DCL
www.gatexpertstore.com

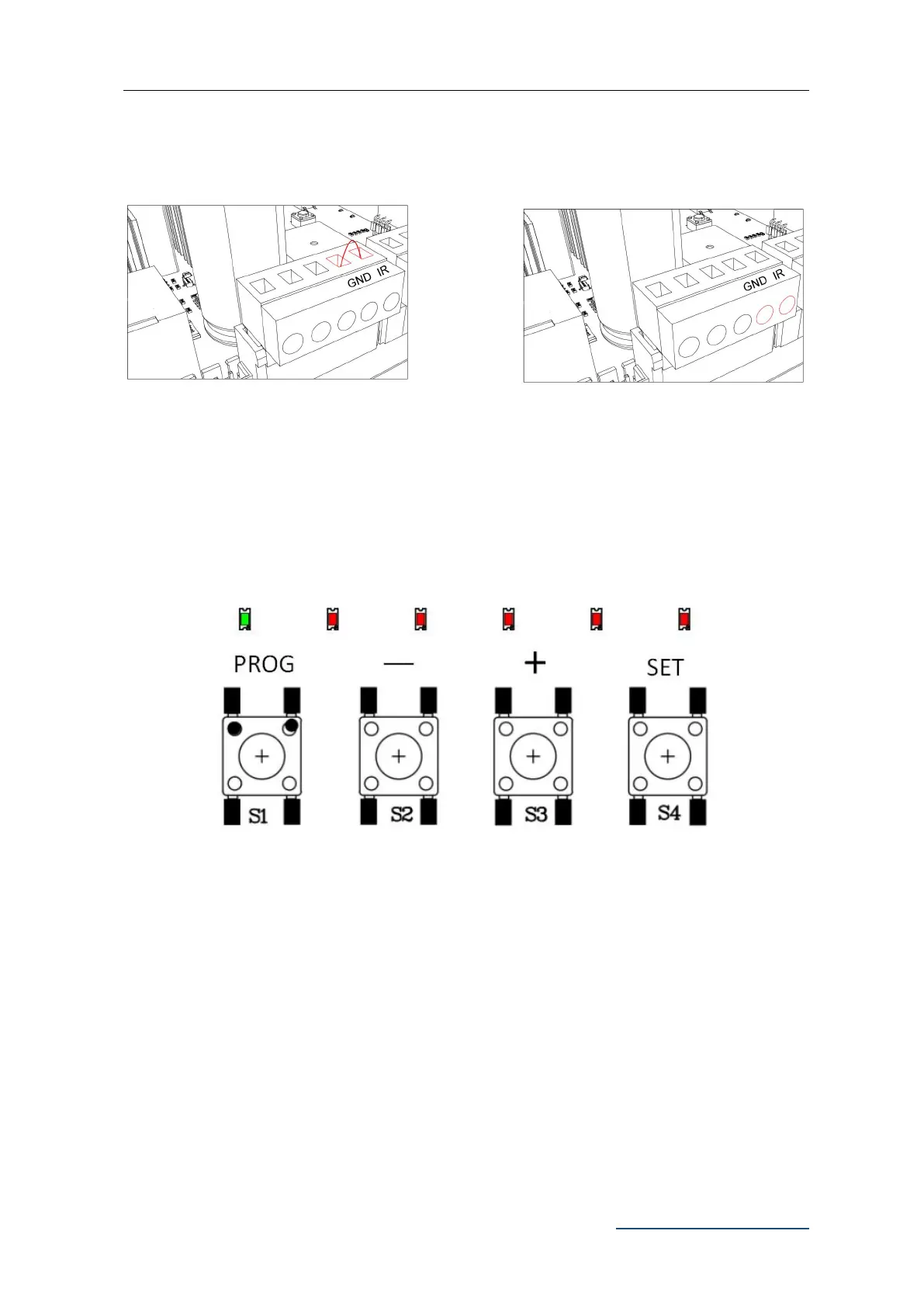

Before Installing Photocells
Loosen IR and GND ports on X5 Terminal
with a screwdriver. Make sure the power
is disconnected before doing so.
Remove the wire jumper
between ports IR & GND on
X5 Terminal.
Figure 21
Operation Interface Instruction
Figure 22
Indicator Lights:
L0 (Green): Indicating the control board working status and menu status.
L1-L5 (Red): Indicating the settings, parameters, errors and battery level.
Set Buttons:
PROG: Enter into or exit the setting menu.
- and +: Function select and parameter adjust.
SET: Choose the selection, confirm the setting.
Note:
Press the setting button for a short while (within 1 sec.) or long press the button (over 2 sec.)
will be for different functions.
