GATEXPERT SL500DCL - Opening Direction Setting

Instructions for SL500DCL/SL800DCL
www.gatexpertstore.com
38
L1
L2
L3
L4 L5
Cancel start-up delay function
Delay for 0.5 sec
Delay for 1 sec
Delay for 1.5 sec
L1
L2
L3
L4 L5
L1
L2
L3
L4 L5
L1
L2
L3
L4 L5
Indicator light status：
Off
On
Flicker
Status Instruction
Table 2 Start-up Delay Time
Opening Direction Setting (L4)
This setting is for users to change the gate opening direction without exchanging the motor
wires, but have to note the limit stop position.
A. Operation Instruction:
1. Press and hold “PROG” button for 3 sec. to enter into basic menu.  Indicator light L0
will flicker once, then L1 will be steady on.
2. Press “PROG” button again for 3 sec. to enter into advanced menu.  L0 will flicker
twice, then L1 will be steady on.
3. Press “+” button three times to select opening direction option.  Indicator light L4 will
Press “PROG”
for 3 sec.
L0 flicker once, L1
will be steady on
Press “PROG”
again for 3 sec.
L0 flicker twice, L1
will be steady on
Press “+” twice
L3 will be
steady on

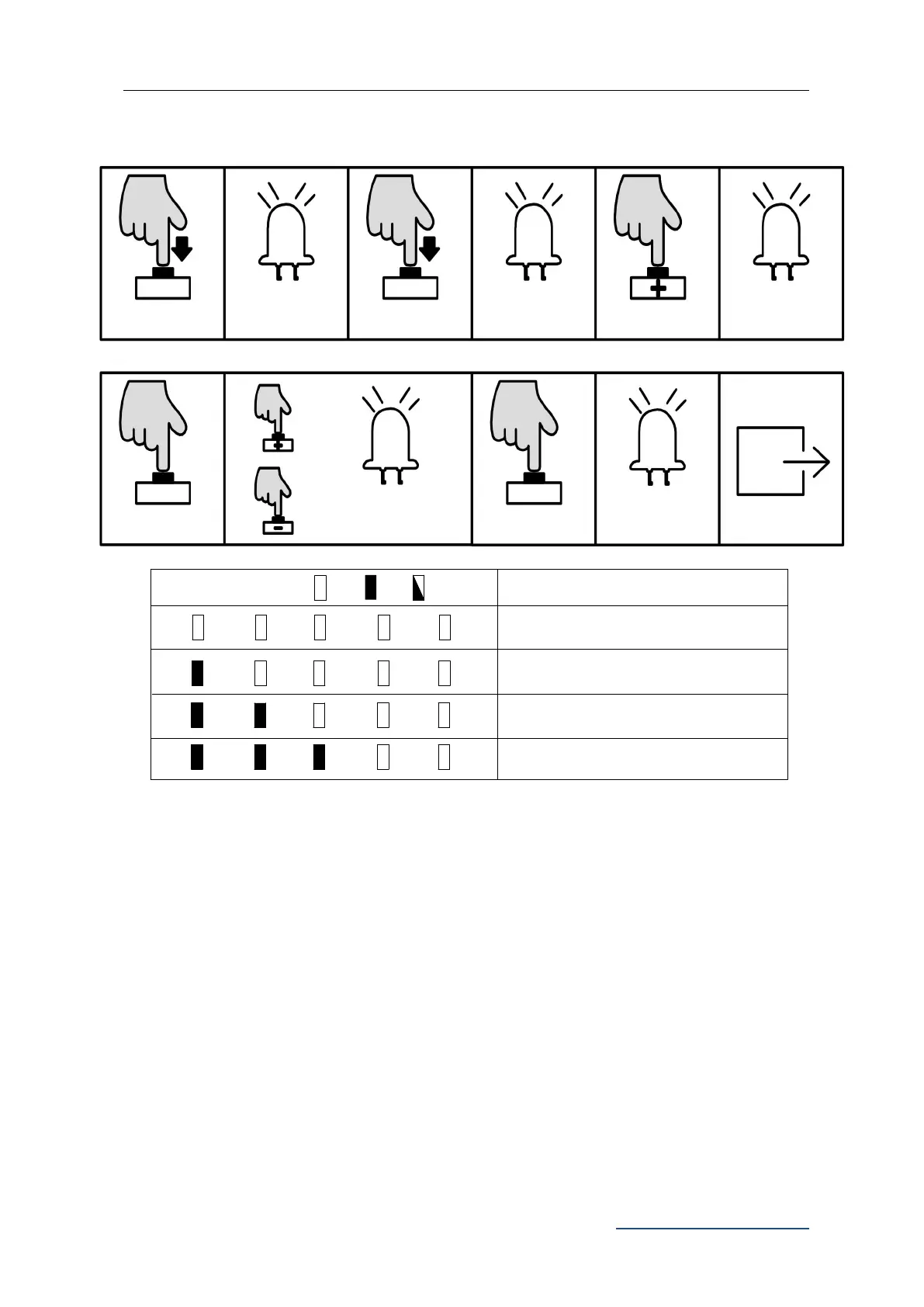

Press “SET” once
Press “+” or “-” to set, LED
will show the setting value
Press “SET” once
Save and exit
PROG
PROG
SET
SET
L1-L5 will be on in
sequence then all
flicker once and off.
