Instructions for SL500DCL/SL800DCL
www.gatexpertstore.com

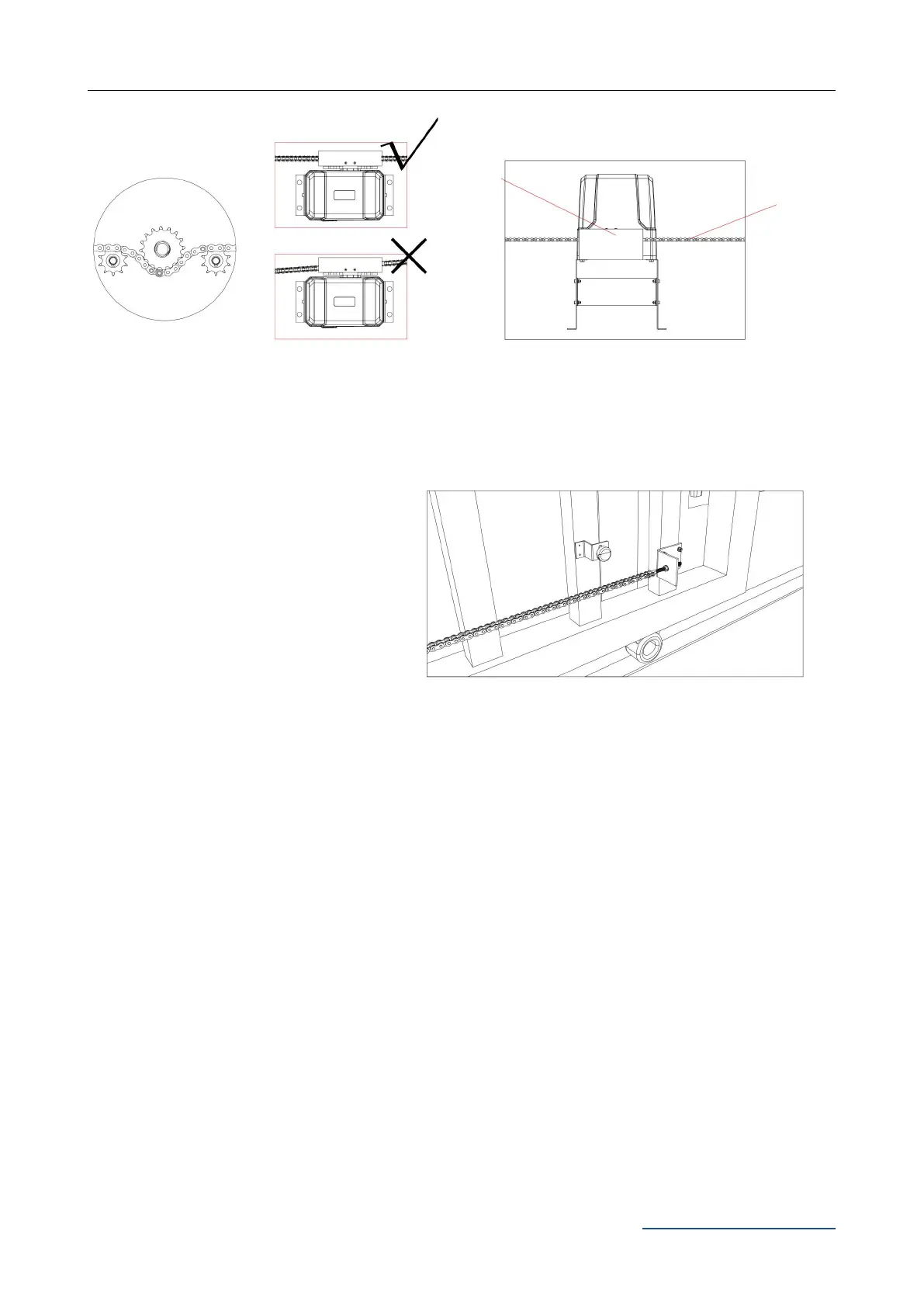

Figure 13 Figure 14
Step 7 - Limit Switch Stop
Included in your gate opener kit are two
limit switch stops which must be fitted on
your gate to ensure safe operation.
The limit switch stops are designed to set
the desired opening and closing position of
your gate. When the limit switch stops
come into contact with the magnetic limit
switch, the gate will stop moving.
It is extremely dangerous that without or incorrect installation of the limit switch stops can cause
crash of gate, damage of internal structure of the motor, moreover, the gate may slide off the guide
rail.
Setting the Limit Switch Stops
Closed Position
· Position gate 150-200mm back from the gate end catch closed position. This will help in
making sure you do not slam the gate into the end stop/catch when setting the closed position
under power.
· Fit limit switch stop onto the top of chain at the point where it meets the magnetic limit switch on
the motor.
· Tighten locking screws of limit switch stop.
