SIGA-REL programming
C.2 QS4 Technical Reference Manual

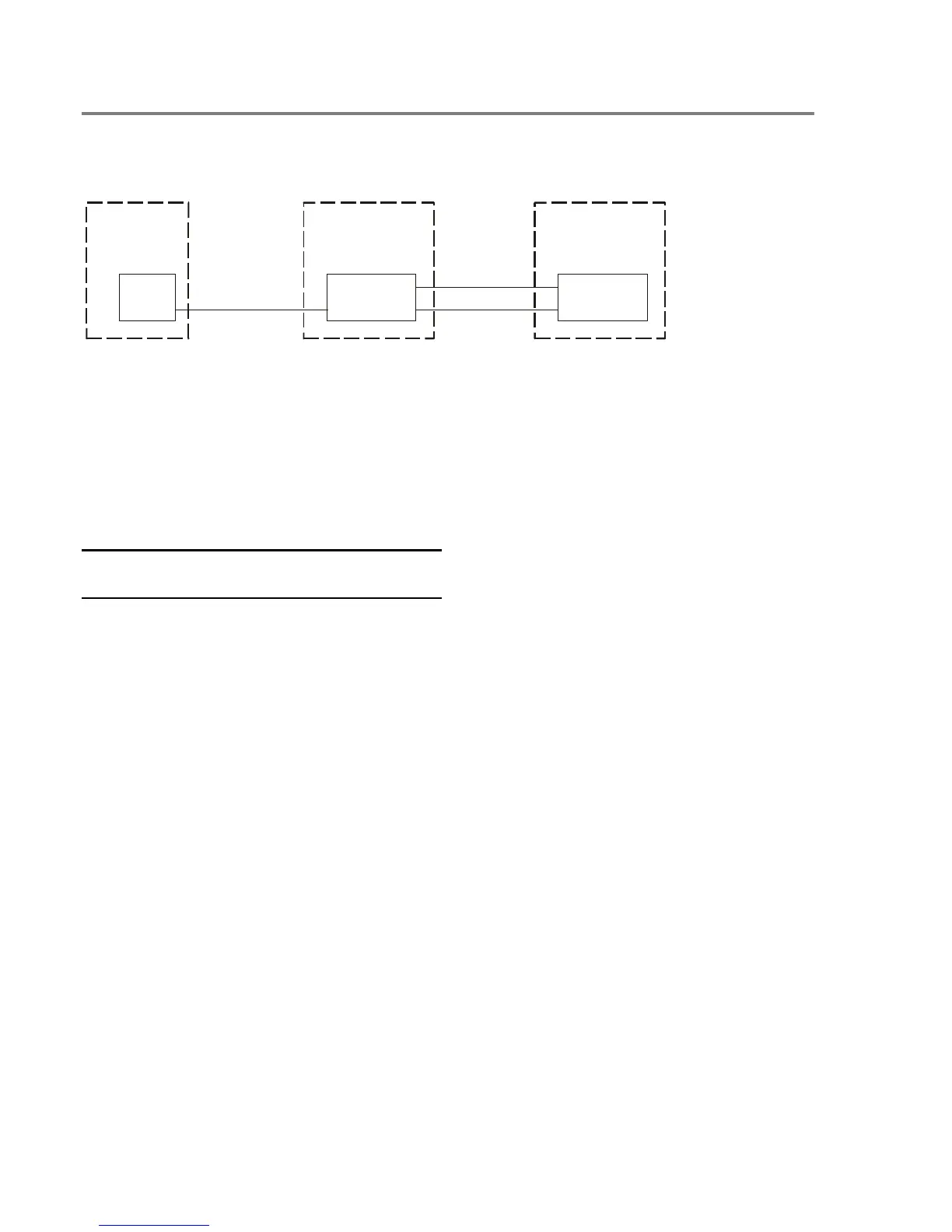

Application block diagram
FACP
SLIC
SIGA–APS
RACCR
SIGA–REL
MFC–A
LOOP DATA LOOP DATA
24VDC
Minimum system requirements
• A QS1 with SLIC card and appropriately sized
standby batteries
• A SIGA–APS mounted in an RACCR enclosure
with appropriately sized standby batteries to
supply 24 Vdc to the SIGA–REL
• A SIGA–REL mounted in an MFC–A enclosure
Caution: You can not have more than 10 SIGA–
RELs on one loop.
Related documentation
Refer to the SIGA–REL Technical Reference
Manual (P/N 387348) and the latest technical
bulletins for installation and connection information.
Refer to the SIGA–APS installation sheet for
installation and connection information.
Refer to the RACCR installation sheet for
installation information.
