Installation
QS4 Technical Reference Manual 2.11
SLIC Signature Loop Intelligent Controller

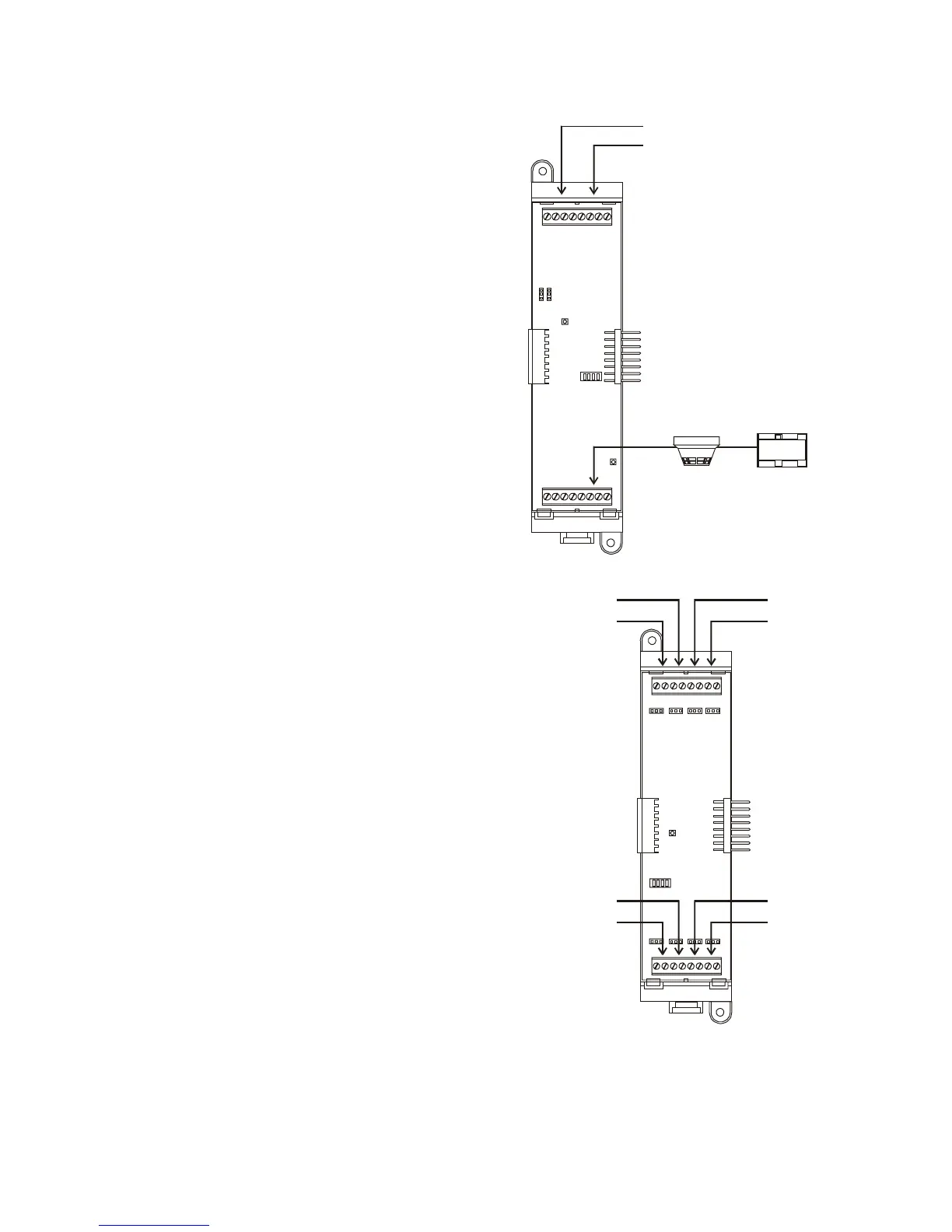

Card device addresses
The device address format is PPCCDDD,
where:
PP is the panel number (01)
CC is the card number (any number between 1
and 7 depending on the setting of SW1)
DDD is the device or circuit number, where:
• 001–125 are Signature automatic detectors
and SIGA–IM isolator modules
• 126–250 are Signature modules
• 270 is the NAC 1 output circuit
• 271 is the NAC 2 output circuit
Note: Some Signature modules use two or more
device addresses.
PPCC270
PPCC001
to
PPCC125
PPCC126
to
PPCC250
PPCC271
ZR8 Relay Card device addresses
The device address format is PPCCDDD,
where:
PP is the panel number (01)
CC is the card number (any number between 1
and 13 depending on the setting of SW1)
DDD is the device number, where 001 – 008 are
relays 1 – 8, respectively
PPCC001
PPCC002
PPCC004
PPCC003
PPCC005
PPCC006
PPCC008
PPCC007
