Installation
2.12 QS4 Technical Reference Manual

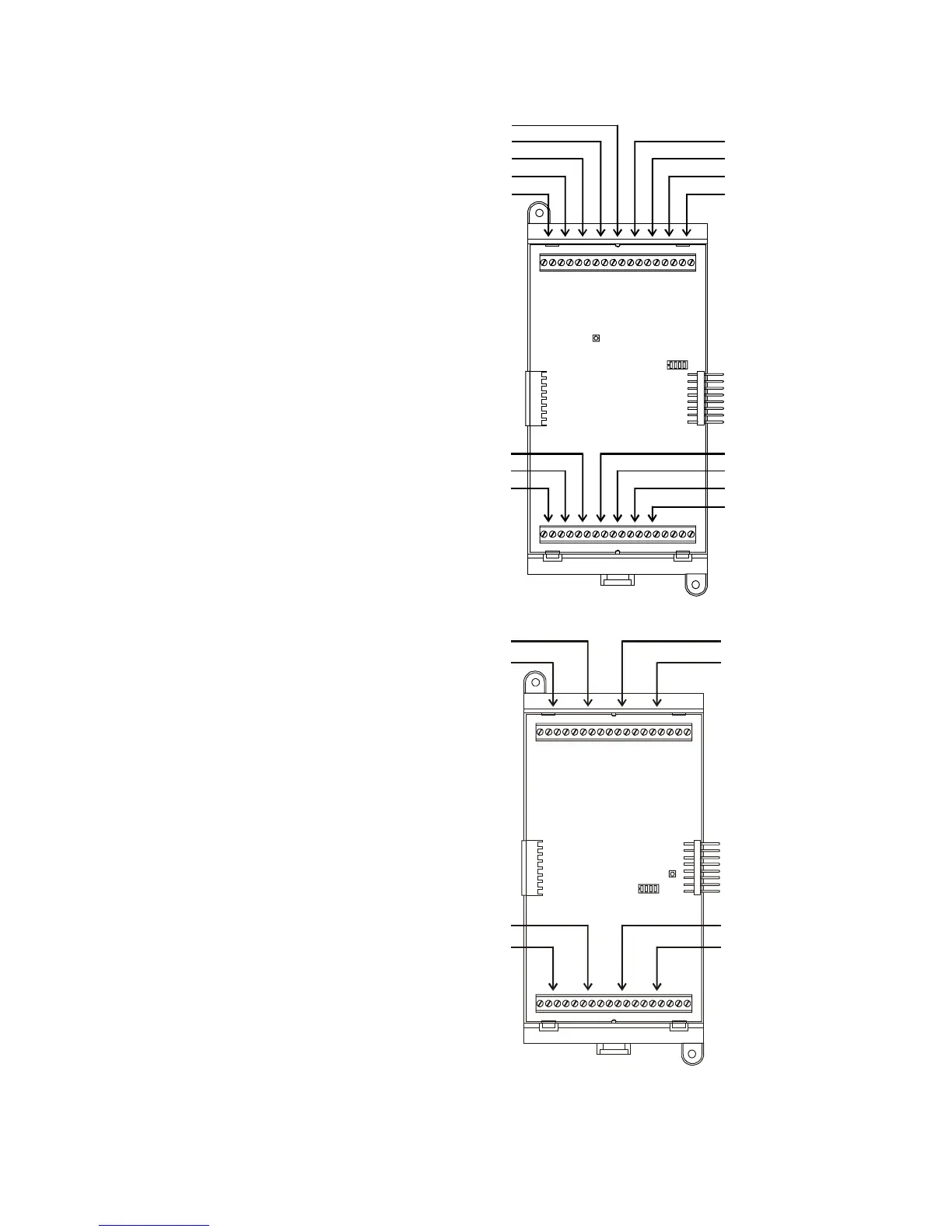

ZB16–4 Class B Conventional Zone Card
device addresses
The device address format is PPCCDDD,
where:
PP is the panel number (01)
CC is the card number (any number between
1 and 13 depending on the setting of SW1)
DDD is the circuit number, where:
• 001 – 012 are IDC circuits Z1 – Z12,
respectively
• 013 – 016 are NAC circuits Z13 – Z16,
respectively
Note: NAC circuits Z13 – Z16 can also be
programmed as IDC circuits.
PPCC009
PPCC008
PPCC007
PPCC006
PPCC016
PPCC015
PPCC014
PPCC013
PPCC001
PPCC002
PPCC003
PPCC004
PPCC005
PPCC010
PPCC011
PPCC012
ZA8–2 Class A Conventional Zone Card
device addresses
The device address format is PPCCDDD,
where:
PP is the panel number (01)
CC is the card number (any number between
1 and 13 depending on the setting of SW1)
DDD is the circuit number, where:
• 001 – 003 and 005 – 007 are IDC circuits
Zone 1 – Zone 3 and Zone 5 – Zone 7,
respectively
• 004 and 008 are NAC circuits Zone 4 and
Zone 8, respectively
Note: NAC circuits Zone 4 and Zone 8 can
also be programmed as IDC circuits.
PPCC001
PPCC002
PPCC004
PPCC003
PPCC005
PPCC006
PPCC008
PPCC007
