7.18 239 MEMORY MAP

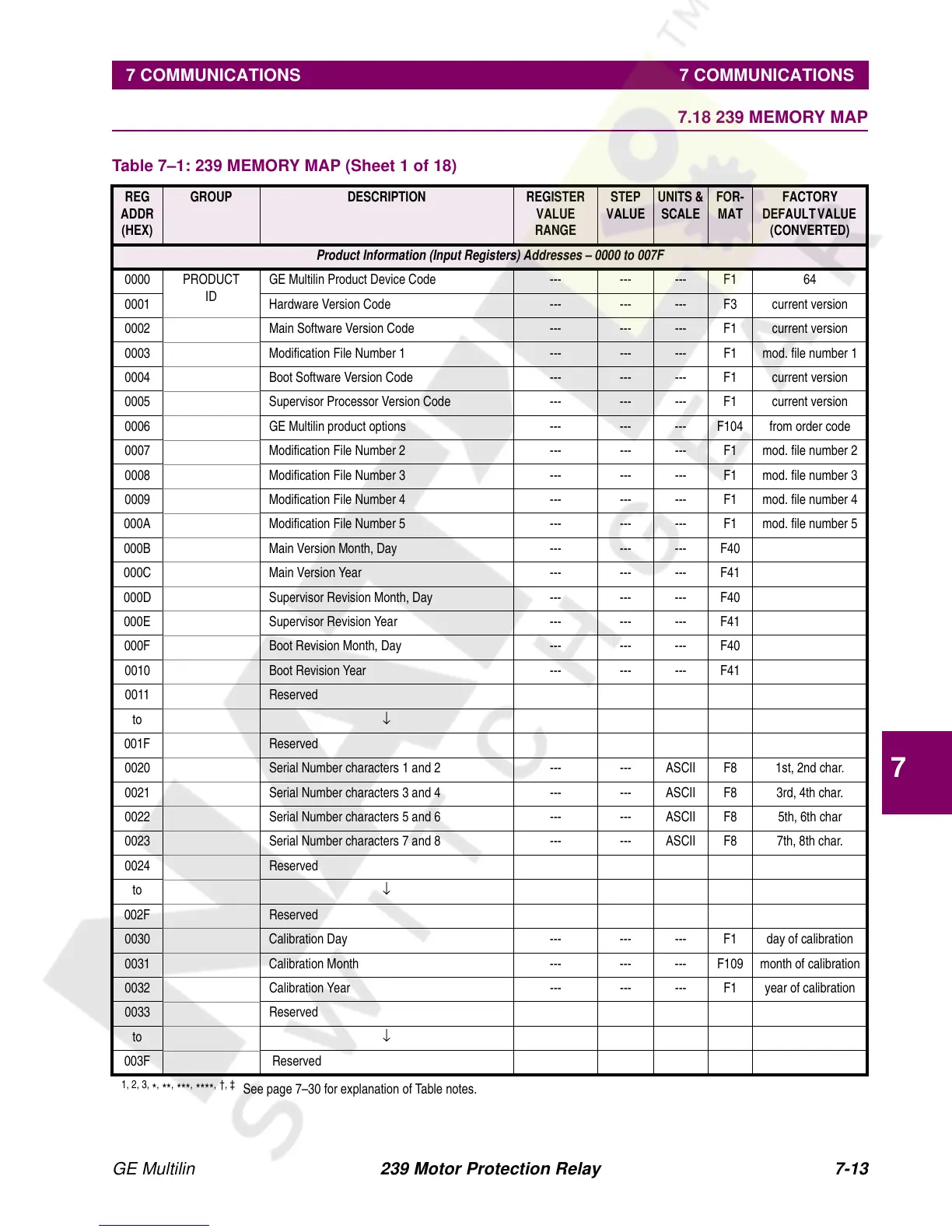

Table 7–1: 239 MEMORY MAP (Sheet 1 of 18)
REG
ADDR
(HEX)
GROUP DESCRIPTION REGISTER
VALUE
RANGE
STEP
VALUE
UNITS &
SCALE
FOR-
MAT
FACTORY
DEFAULT VALUE
(CONVERTED)
Product Information (Input Registers) Addresses – 0000 to 007F
0000 PRODUCT
ID
GE Multilin Product Device Code --- --- --- F1 64
0001 Hardware Version Code --- --- --- F3 current version
0002 Main Software Version Code --- --- --- F1 current version
0003 Modification File Number 1 --- --- --- F1 mod. file number 1
0004 Boot Software Version Code --- --- --- F1 current version
0005 Supervisor Processor Version Code --- --- --- F1 current version
0006 GE Multilin product options --- --- --- F104 from order code
0007 Modification File Number 2 --- --- --- F1 mod. file number 2
0008 Modification File Number 3 --- --- --- F1 mod. file number 3
0009 Modification File Number 4 --- --- --- F1 mod. file number 4
000A Modification File Number 5 --- --- --- F1 mod. file number 5
000B Main Version Month, Day --- --- --- F40
000C Main Version Year --- --- --- F41
000D Supervisor Revision Month, Day --- --- --- F40
000E Supervisor Revision Year --- --- --- F41
000F Boot Revision Month, Day --- --- --- F40
0010 Boot Revision Year --- --- --- F41
0011 Reserved
to ↓
001F Reserved
0020 Serial Number characters 1 and 2 --- --- ASCII F8 1st, 2nd char.
0021 Serial Number characters 3 and 4 --- --- ASCII F8 3rd, 4th char.
0022 Serial Number characters 5 and 6 --- --- ASCII F8 5th, 6th char
0023 Serial Number characters 7 and 8 --- --- ASCII F8 7th, 8th char.
0024 Reserved
to ↓
002F Reserved
0030 Calibration Day --- --- --- F1 day of calibration
0031 Calibration Month --- --- --- F109 month of calibration
0032 Calibration Year --- --- --- F1 year of calibration
0033 Reserved
to ↓
003F Reserved
1, 2, 3,
*
,
**
,
***
,
****
, †, ‡
See page 7–30 for explanation of Table notes.
