5 MONITORING 5 MONITORING
5

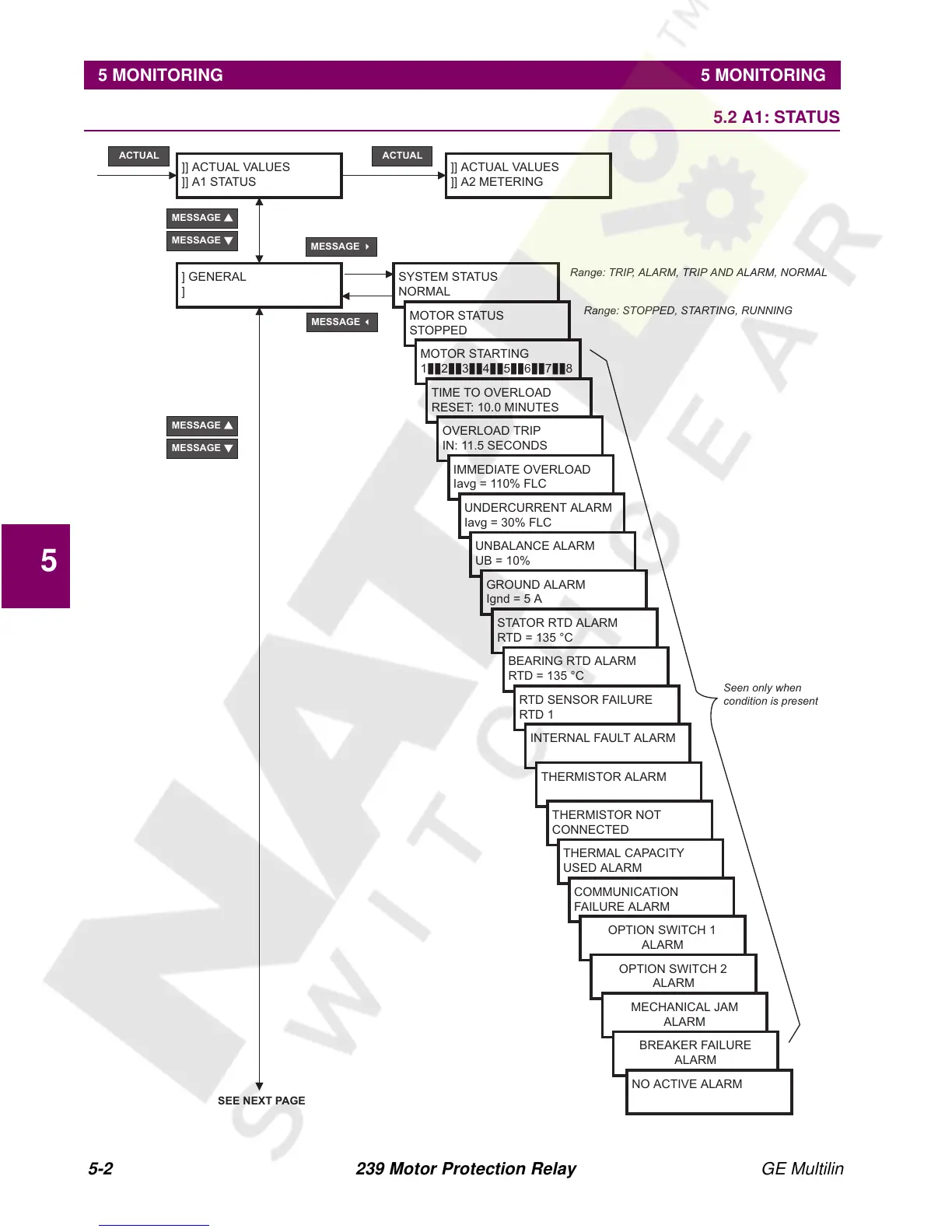

5.2 A1: STATUS
]] ACTUAL VALUES
]] A1 STATUS
ACTUAL
MESSAGE
] GENERAL
]
MESSAGE
SYSTEM STATUS
NORMAL
MOTOR STATUS
STOPPED
MOTOR STARTING
1zz2zz3zz4zz5zz6zz7zz8
TIME TO OVERLOAD
RESET: 10.0 MINUTES
]] ACTUAL VALUES
]] A2 METERING
ACTUAL
MESSAGE 4
MESSAGE 3
OVERLOAD TRIP
IN: 11.5 SECONDS
IMMEDIATE OVERLOAD
Iavg = 110% FLC
UNDERCURRENT ALARM
Iavg = 30% FLC
UNBALANCE ALARM
UB = 10%
GROUND ALARM
Ignd=5A
STATOR RTD ALARM
RTD = 135 °C
BEARING RTD ALARM
RTD = 135 °C
RTD SENSOR FAILURE
RTD 1
INTERNAL FAULT ALARM
THERMISTOR ALARM
THERMISTOR NOT
CONNECTED
THERMAL CAPACITY
USED ALARM
COMMUNICATION
FAILURE ALARM
OPTION SWITCH 1
ALARM
OPTION SWITCH 2
ALARM
MECHANICAL JAM
ALARM
BREAKER FAILURE
ALARM
NO ACTIVE ALARM
SEE NEXT PAGE
Range: TRIP, ALARM, TRIP AND ALARM, NORMAL
Range: STOPPED, STARTING, RUNNING
Seen only when
condition is present
MESSAGE s
MESSAGE t
MESSAGE s
MESSAGE t
