GE Multilin 239 Motor Protection Relay 5-1
5 MONITORING 5 MONITORING
5
239 INSTRUCTION MANUAL 5 MONITORING 5.1 ACTUAL VALUES VIEWING
Any measured value can be displayed on demand using the key. Each time the
key is pressed, the beginning of a new page of monitored values is displayed. These are grouped as:
A1: STATUS, A2: METERING, A3: PRODUCT INFO. Use the / keys in the same
fashion as for setpoints to move between actual value messages. A detailed description of each dis-
played message in these groups is given in the sections that follow.

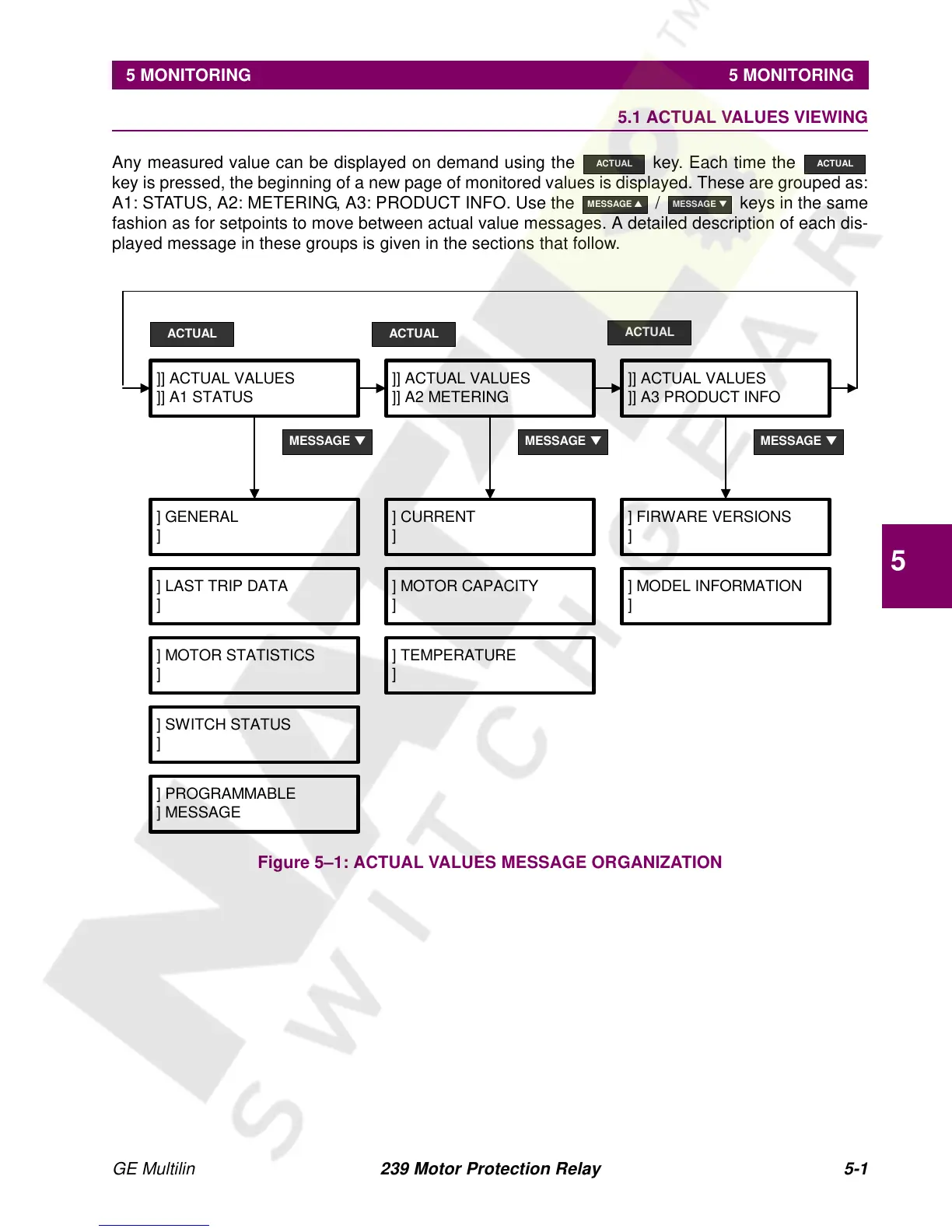

Figure 5–1: ACTUAL VALUES MESSAGE ORGANIZATION
ACTUAL ACTUAL
MESSAGE ▲
MESSAGE ▼
]] ACTUAL VALUES
]] A1 STATUS
]] ACTUAL VALUES
]] A2 METERING
]] ACTUAL VALUES
]] A3 PRODUCT INFO
ACTUAL ACTUAL
ACTUAL
MESSAGE ▼
] GENERAL
]
] LAST TRIP DATA
]
] SWITCH STATUS
]
] PROGRAMMABLE
] MESSAGE
] CURRENT
]
] MOTOR CAPACITY
]
] FIRWARE VERSIONS
]
] MODEL INFORMATION
]
MESSAGE ▼ MESSAGE ▼
] TEMPERATURE
]
] MOTOR STATISTICS
]
