1-6 239 Motor Protection Relay GE Multilin
1 OVERVIEW 1 OVERVIEW
1

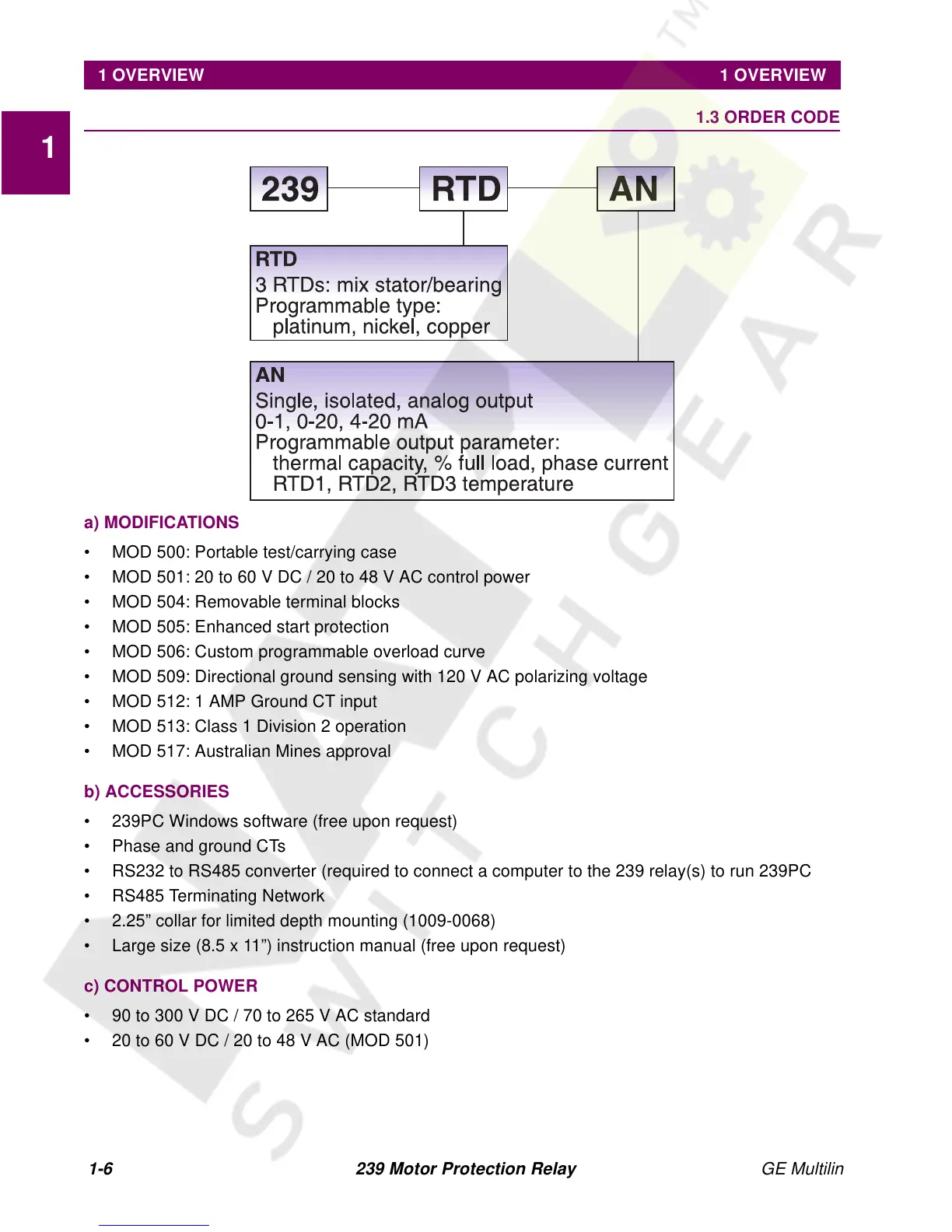

1.3 ORDER CODE
a) MODIFICATIONS
• MOD 500: Portable test/carrying case
• MOD 501: 20 to 60 V DC / 20 to 48 V AC control power
• MOD 504: Removable terminal blocks
• MOD 505: Enhanced start protection
• MOD 506: Custom programmable overload curve
• MOD 509: Directional ground sensing with 120 V AC polarizing voltage
• MOD 512: 1 AMP Ground CT input
• MOD 513: Class 1 Division 2 operation
• MOD 517: Australian Mines approval
b) ACCESSORIES
• 239PC Windows software (free upon request)
• Phase and ground CTs
• RS232 to RS485 converter (required to connect a computer to the 239 relay(s) to run 239PC
• RS485 Terminating Network
• 2.25” collar for limited depth mounting (1009-0068)
• Large size (8.5 x 11”) instruction manual (free upon request)
c) CONTROL POWER
• 90 to 300 V DC / 70 to 265 V AC standard
• 20 to 60 V DC / 20 to 48 V AC (MOD 501)
