GE 239

4-36 239 Motor Protection Relay GE Multilin
4 PROGRAMMING 4 PROGRAMMING
4

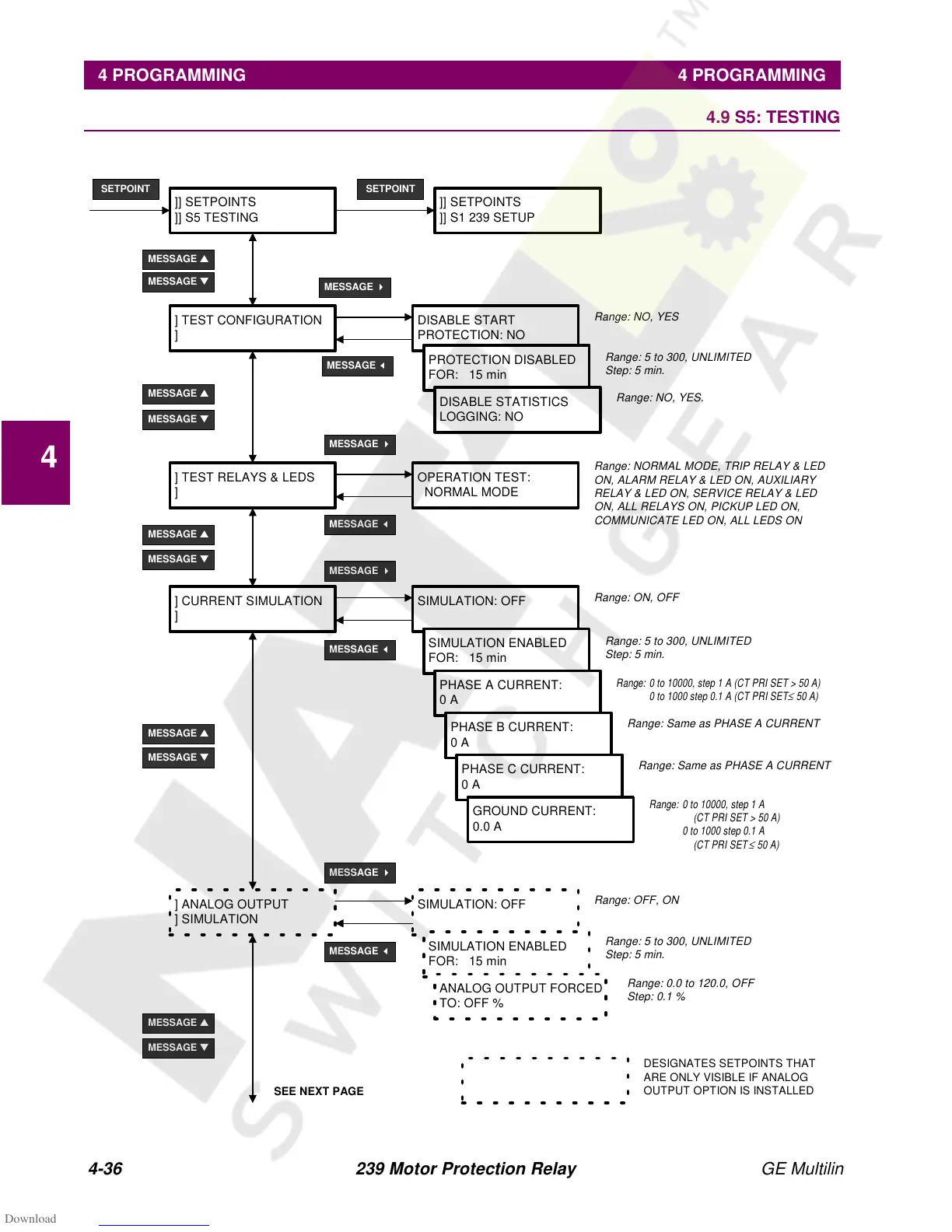

4.9 S5: TESTING
]] SETPOINTS
]] S5 TESTING
SETPOINT
MESSAGE ▼
] TEST CONFIGURATION
]
MESSAGE ▲
DISABLE START
PROTECTION: NO
PROTECTION DISABLED
FOR: 15 min
] TEST RELAYS & LEDS
]
OPERATION TEST:
NORMAL MODE
] CURRENT SIMULATION
]
SIMULATION: OFF
SIMULATION ENABLED
FOR: 15 min
PHASE A CURRENT:
0 A
PHASE B CURRENT:
0 A
] ANALOG OUTPUT
] SIMULATION
SIMULATION: OFF
SIMULATION ENABLED
FOR: 15 min
]] SETPOINTS
]] S1 239 SETUP
SETPOINT
Range: NO, YES
Range: 5 to 300, UNLIMITED
Step: 5 min.
Range: NORMAL MODE, TRIP RELAY & LED
ON, ALARM RELAY & LED ON, AUXILIARY
RELAY & LED ON, SERVICE RELAY & LED
ON, ALL RELAYS ON, PICKUP LED ON,
COMMUNICATE LED ON, ALL LEDS ON
Range: ON, OFF
Range: 5 to 300, UNLIMITED
Step: 5 min.
Range: 0 to 10000, step 1 A (CT PRI SET > 50 A)
0 to 1000 step 0.1 A (CT PRI SET
≤ 50 A)
Range: Same as PHASE A CURRENT
Range: OFF, ON
Range: 5 to 300, UNLIMITED
Step: 5 min.
MESSAGE ▲
MESSAGE ▲
MESSAGE ▲
MESSAGE ▲
MESSAGE ▼
MESSAGE ▼
MESSAGE ▼
MESSAGE ▼
MESSAGE 4
MESSAGE 4
MESSAGE 4
MESSAGE 4
MESSAGE 3
MESSAGE 3
MESSAGE 3
MESSAGE 3
DESIGNATES SETPOINTS THAT
ARE ONLY VISIBLE IF ANALOG
OUTPUT OPTION IS INSTALLED
SEE NEXT PAGE
PHASE C CURRENT:
0 A
GROUND CURRENT:
0.0 A
ANALOG OUTPUT FORCED
TO: OFF %
Range: Same as PHASE A CURRENT
Range: 0 to 10000, step 1 A
(CT PRI SET > 50 A)
0 to 1000 step 0.1 A
(CT PRI SET
≤ 50 A)
Range: 0.0 to 120.0, OFF
Step: 0.1 %
DISABLE STATISTICS
LOGGING: NO
Range: NO, YES.
