4 PROGRAMMING 4 PROGRAMMING
4

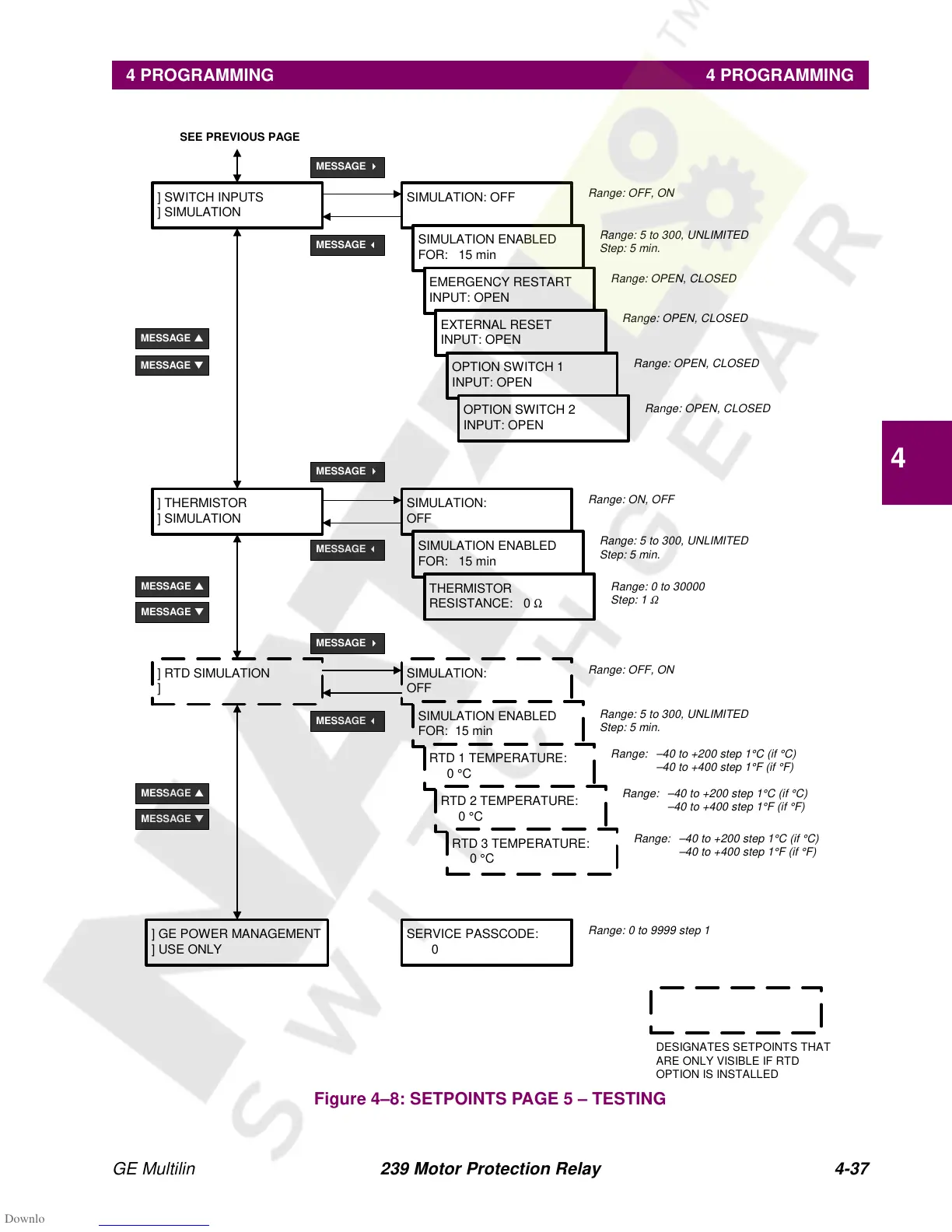

Figure 4–8: SETPOINTS PAGE 5 – TESTING
] SWITCH INPUTS
] SIMULATION
SEE PREVIOUS PAGE
SIMULATION: OFF
] THERMISTOR
] SIMULATION
SIMULATION ENABLED
FOR: 15 min
EMERGENCY RESTART
INPUT: OPEN
EXTERNAL RESET
INPUT: OPEN
OPTION SWITCH 1
INPUT: OPEN
OPTION SWITCH 2
INPUT: OPEN
] RTD SIMULATION
]
MESSAGE 4
MESSAGE 4
MESSAGE 3
MESSAGE 3
MESSAGE ▲
MESSAGE ▼
Range: OFF, ON
Range: 0 to 9999 step 1
SIMULATION:
OFF
SIMULATION ENABLED
FOR: 15 min
THERMISTOR
RESISTANCE: 0
Ω
SIMULATION:
OFF
SIMULATION ENABLED
FOR: 15 min
RTD 1 TEMPERATURE:
0 °C
RTD 2 TEMPERATURE:
0 °C
RTD 3 TEMPERATURE:
0 °C
] GE POWER MANAGEMENT
] USE ONLY
SERVICE PASSCODE:
0
MESSAGE ▼
MESSAGE ▲
MESSAGE ▼
MESSAGE ▲
MESSAGE 4
MESSAGE 3
Range: OFF, ON
Range: 5 to 300, UNLIMITED
Step: 5 min.
Range: –40 to +200 step 1°C (if °C)
–40 to +400 step 1°F (if °F)
Range: –40 to +200 step 1°C (if °C)
–40 to +400 step 1°F (if °F)
Range: –40 to +200 step 1°C (if °C)
–40 to +400 step 1°F (if °F)
Range: 5 to 300, UNLIMITED
Step: 5 min.
Range: 5 to 300, UNLIMITED
Step: 5 min.
Range: OPEN, CLOSED
Range: OPEN, CLOSED
Range: OPEN, CLOSED
Range: OPEN, CLOSED
Range: ON, OFF
Range: 0 to 30000
Step: 1
Ω
DESIGNATES SETPOINTS THAT
ARE ONLY VISIBLE IF RTD
OPTION IS INSTALLED
