GE Multilin 239 Motor Protection Relay 7-15
7 COMMUNICATIONS 7 COMMUNICATIONS
7
0108 User Definable Data 0008 --- --- --- --- ---
0109 User Definable Data 0009 --- --- --- --- ---
010A User Definable Data 000A --- --- --- --- ---
010B User Definable Data 000B --- --- --- --- ---
to ↓↓↓↓↓↓
0177 User Definable Data 0077 --- --- --- --- ---
0178 Reserved
to ↓
017F Reserved
User Definable Register Index (Holding Registers) Addresses – 0180 to 01FF
0180 USER
DEFINABLE
REGISTER
INDEX
Register address for User Definable Data 0000 †1---F1 0
0181 Register address for User Definable Data 0001 † 1 --- F1 0
0182 Register address for User Definable Data 0002 † 1 --- F1 0
0183 Register address for User Definable Data 0003 † 1 --- F1 0
0184 Register address for User Definable Data 0004 † 1 --- F1 0
0185 Register address for User Definable Data 0005 † 1 --- F1 0
0186 Register address for User Definable Data 0006 † 1 --- F1 0
0187 Register address for User Definable Data 0007 † 1 --- F1 0
0188 Register address for User Definable Data 0008 † 1 --- F1 0
0189 Register address for User Definable Data 0009 † 1 --- F1 0
018A Register address for User Definable Data 000A † 1 --- F1 0
to ↓↓↓↓↓↓
01F7 Register address for User Definable Data 0077 † 1 --- F1 0
01F8 Reserved
to ↓
01FF Reserved
Actual Values (Input Registers) Addresses – 0200 to 027F
0200 STATUS Switch Input Status --- --- --- F100 N/A
0201 LED Status Flags --- --- --- F101 N/A
0202 LED Attribute Flags --- --- --- F108 N/A
0203 Output Relay Status Flags --- --- --- F107 N/A
0204 Auxiliary Active Status Flags --- --- --- F106 N/A
0205 Auxiliary Pickup Status Flags --- --- --- F106 N/A
0206 Alarm Active Status Flags --- --- --- F102 N/A
0207 Alarm Pickup Status Flags --- --- --- F102 N/A
0208 Trip Active Status Flags --- --- --- F103 N/A

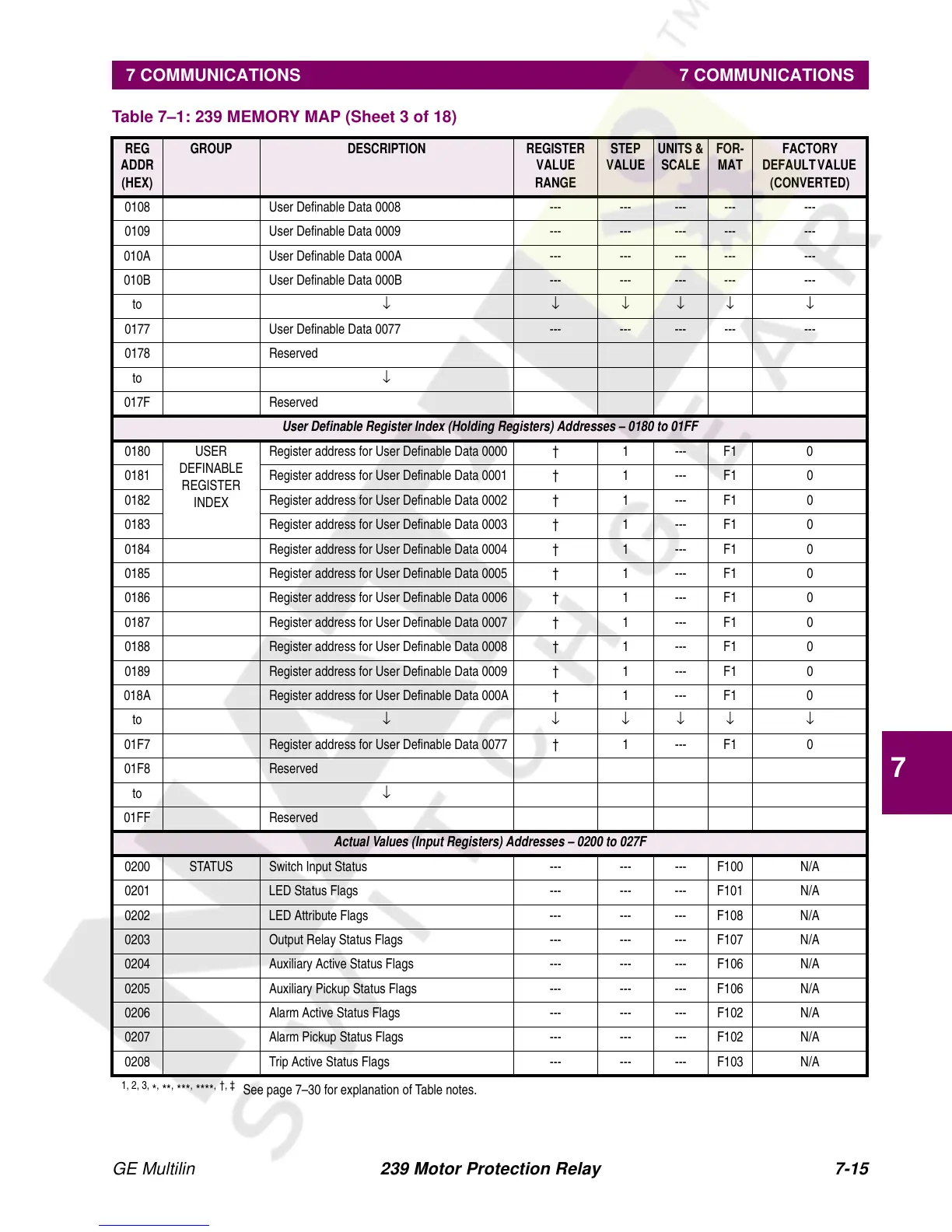

Table 7–1: 239 MEMORY MAP (Sheet 3 of 18)
REG
ADDR
(HEX)
GROUP DESCRIPTION REGISTER
VALUE
RANGE
STEP
VALUE
UNITS &
SCALE
FOR-
MAT
FACTORY
DEFAULT VALUE
(CONVERTED)
1, 2, 3,
*
,
**
,
***
,
****
, †, ‡
See page 7–30 for explanation of Table notes.
