7-24 239 Motor Protection Relay GE Multilin
7 COMMUNICATIONS 7 COMMUNICATIONS
7
109D Reserved
109E Reserved
109F Reserved
10A0 RTD 1 RTD 1 Application (RTD Option) 0-2 1 --- F24 1 = STATOR
10A1 RTD 1 Type (RTD Option) 0-3 1 --- F25 0 = 100 PT
10A2 RTD 1 Trip Temp. (RTD Option) 0 - 201 1 °C F1 ** 130 °C
10A3 RTD 1 Trip Temp. (RTD Option) 0 - 401 1 °F F1 ** 266 °F
10A4 RTD 1 Alarm Temp. (RTD Option) 0 - 201 1 °C F1 ** 110 °C
10A5 RTD 1 Alarm Temp. (RTD Option) 0 - 401 1 °F F1 ** 230 °F
10A6 Reserved
10A7 Reserved
10A8 RTD 2 RTD 2 Application (RTD Option) 0-2 1 --- F24 2 = BEARING
10A9 RTD 2 Type (RTD Option) 0-3 1 --- F25 0 = 100 PT
10AA RTD 2 Trip Temp. (RTD Option) 0 - 201 1 °C F1 ** 90 °C
10AB RTD 2 Trip Temp. (RTD Option) 0 - 401 1 °F F1 ** 194 °F
10AC RTD 2 Alarm Temp. (RTD Option) 0 - 201 1 °C F1 ** 75 °C
10AD RTD 2 Alarm Temp. (RTD Option) 0 - 401 1 °F F1 ** 167 °F
10AE Reserved
10AF Reserved
10B0 RTD 3 RTD 3 Application (RTD Option) 0-2 1 --- F24 2 = BEARING
10B1 RTD 3 Type (RTD Option) 0-3 1 --- F25 0 = 100 PT
10B2 RTD 3 Trip Temp. (RTD Option) 0 - 201 1 °C F1 ** 90 °C
10B3 RTD 3 Trip Temp. (RTD Option) 0 - 401 1 °F F1 ** 194 °F
10B4 RTD 3 Alarm Temp. (RTD Option) 0 - 201 1 °C F1 ** 75 °C
10B5 RTD 3 Alarm Temp. (RTD Option) 0 - 401 1 °F F1 ** 167 °F
10B6 Reserved
10B7 Reserved
10B8 RTD SENSOR RTD Sensor Fail Alarm (RTD Option) 0-1 1 --- F20 0 = OFF
10B9 Reserved
10BA Reserved
10BB Reserved
10BC Reserved
10BD Reserved
10BE Reserved
10BF Reserved

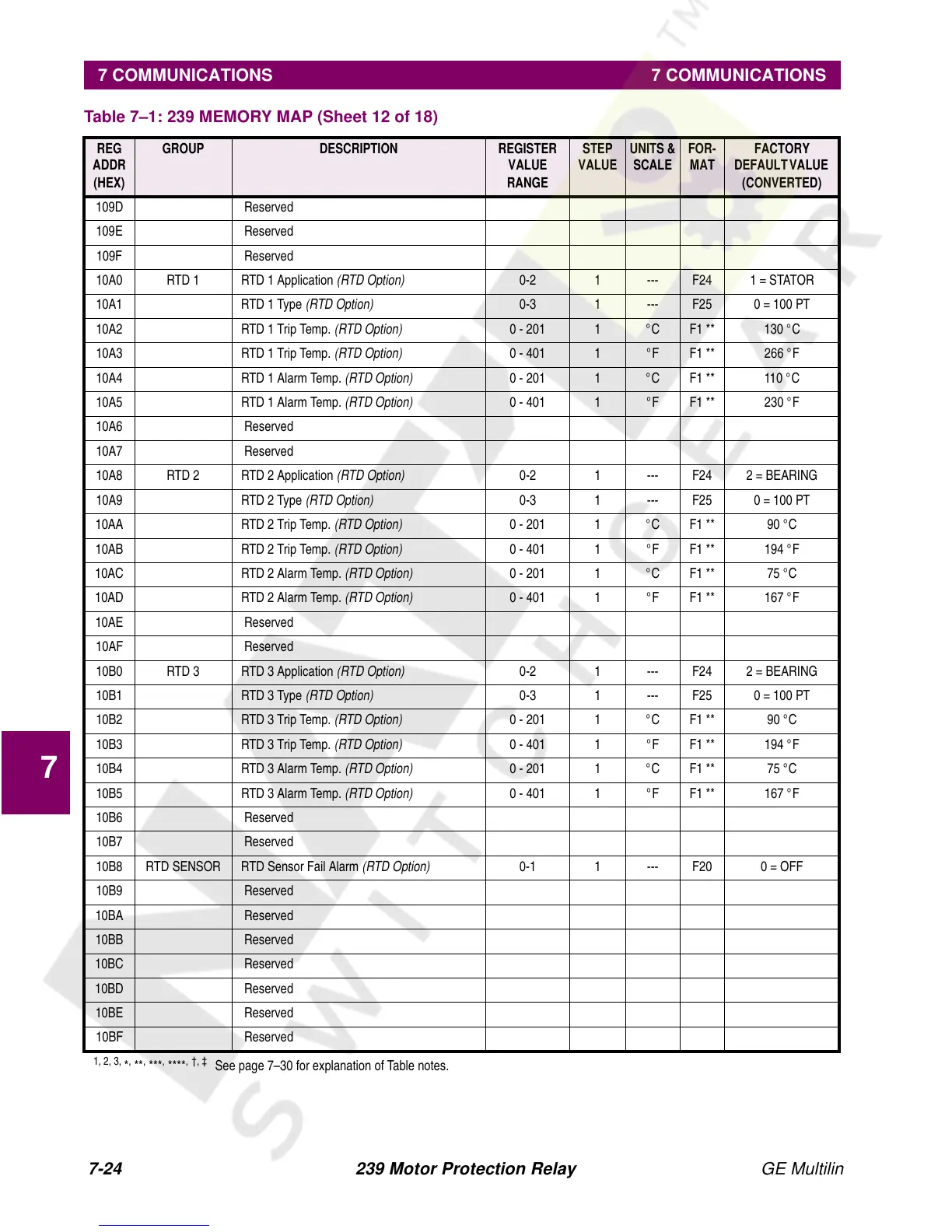

Table 7–1: 239 MEMORY MAP (Sheet 12 of 18)
REG
ADDR
(HEX)
GROUP DESCRIPTION REGISTER
VALUE
RANGE
STEP
VALUE
UNITS &
SCALE
FOR-
MAT
FACTORY
DEFAULT VALUE
(CONVERTED)
1, 2, 3,
*
,
**
,
***
,
****
, †, ‡
See page 7–30 for explanation of Table notes.
