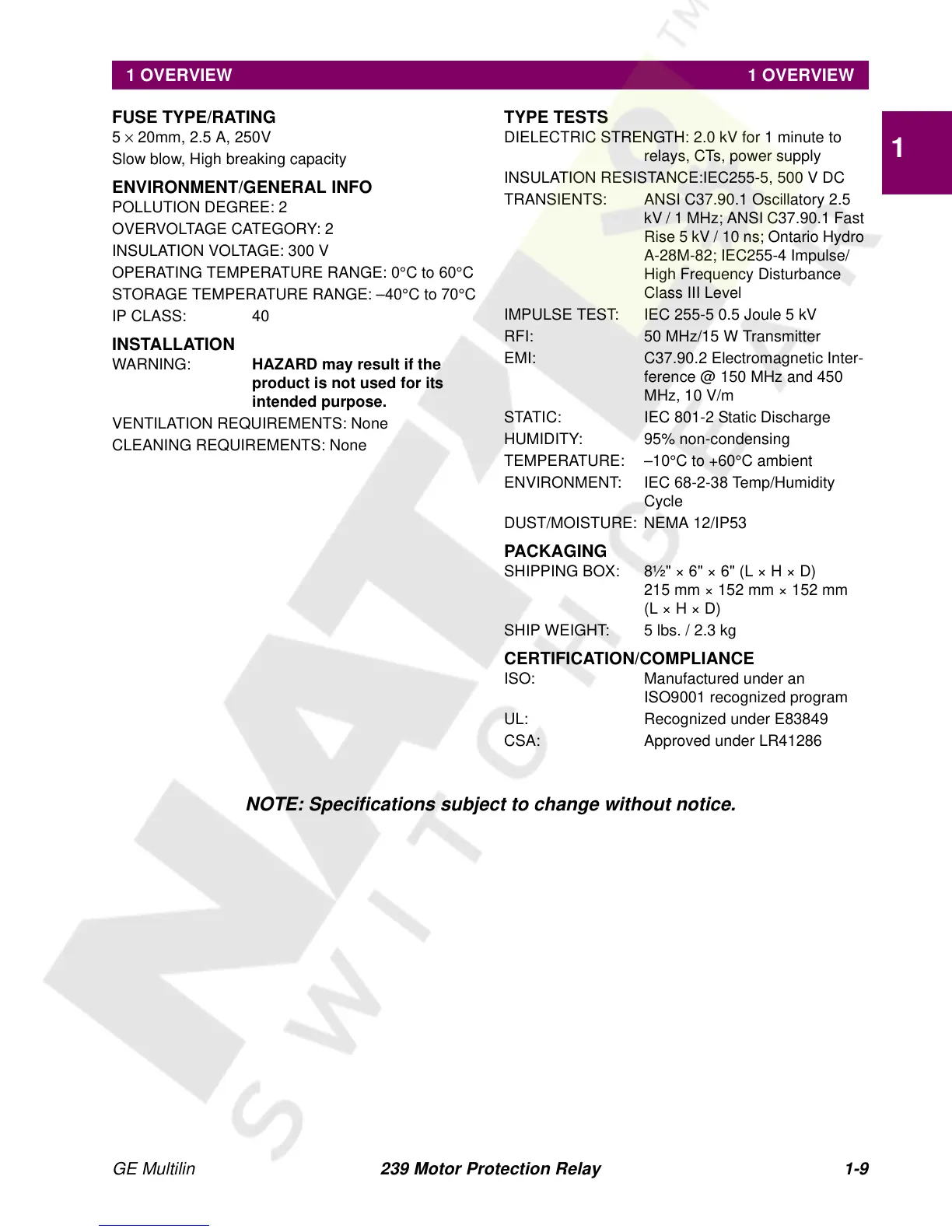

GE Multilin 239 Motor Protection Relay 1-9
1 OVERVIEW 1 OVERVIEW
1
FUSE TYPE/RATING
5 × 20mm, 2.5 A, 250V
Slow blow, High breaking capacity
ENVIRONMENT/GENERAL INFO
POLLUTION DEGREE: 2
OVERVOLTAGE CATEGORY: 2
INSULATION VOLTAGE: 300 V
OPERATING TEMPERATURE RANGE: 0°C to 60°C
STORAGE TEMPERATURE RANGE: –40°C to 70°C
IP CLASS: 40
INSTALLATION
WARNING: HAZARD may result if the
product is not used for its
intended purpose.
VENTILATION REQUIREMENTS: None
CLEANING REQUIREMENTS: None
TYPE TESTS
DIELECTRIC STRENGTH: 2.0 kV for 1 minute to
relays, CTs, power supply
INSULATION RESISTANCE:IEC255-5, 500 V DC
TRANSIENTS: ANSI C37.90.1 Oscillatory 2.5
kV / 1 MHz; ANSI C37.90.1 Fast
Rise 5 kV / 10 ns; Ontario Hydro
A-28M-82; IEC255-4 Impulse/
High Frequency Disturbance
Class III Level
IMPULSE TEST: IEC 255-5 0.5 Joule 5 kV
RFI: 50 MHz/15 W Transmitter
EMI: C37.90.2 Electromagnetic Inter-
ference @ 150 MHz and 450
MHz, 10 V/m
STATIC: IEC 801-2 Static Discharge
HUMIDITY: 95% non-condensing
TEMPERATURE: –10°C to +60°C ambient
ENVIRONMENT: IEC 68-2-38 Temp/Humidity
Cycle
DUST/MOISTURE: NEMA 12/IP53
PACKAGING
SHIPPING BOX: 8½" × 6" × 6" (L × H × D)
215 mm × 152 mm × 152 mm
(L × H × D)
SHIP WEIGHT: 5 lbs. / 2.3 kg
CERTIFICATION/COMPLIANCE
ISO: Manufactured under an
ISO9001 recognized program
UL: Recognized under E83849
CSA: Approved under LR41286
NOTE: Specifications subject to change without notice.
