3 OPERATION 3 OPERATION
3
The 239 will scroll through the default messages in the sequence shown.

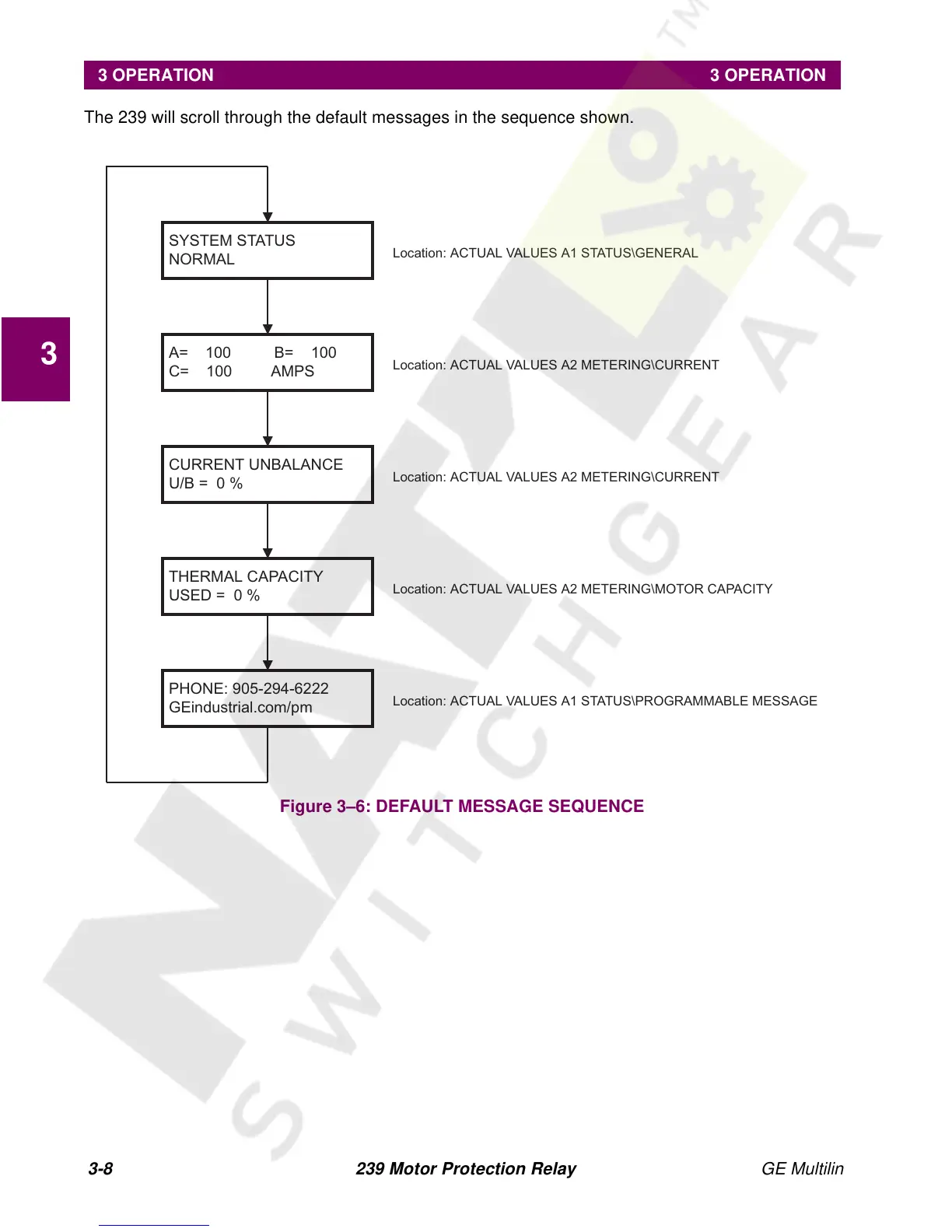

Figure 3–6: DEFAULT MESSAGE SEQUENCE
SYSTEM STATUS
NORMAL
A= 100 B= 100
C= 100 AMPS
CURRENT UNBALANCE
U/B = 0 %
THERMAL CAPACITY
USED = 0 %
PHONE: 905-294-6222
GEindustrial.com/pm
Location: ACTUAL VALUES A1 STATUS\GENERAL
Location: ACTUAL VALUES A2 METERING\CURRENT
Location: ACTUAL VALUES A2 METERING\CURRENT
Location: ACTUAL VALUES A2 METERING\MOTOR CAPACITY
Location: ACTUAL VALUES A1 STATUS\PROGRAMMABLE MESSAGE
