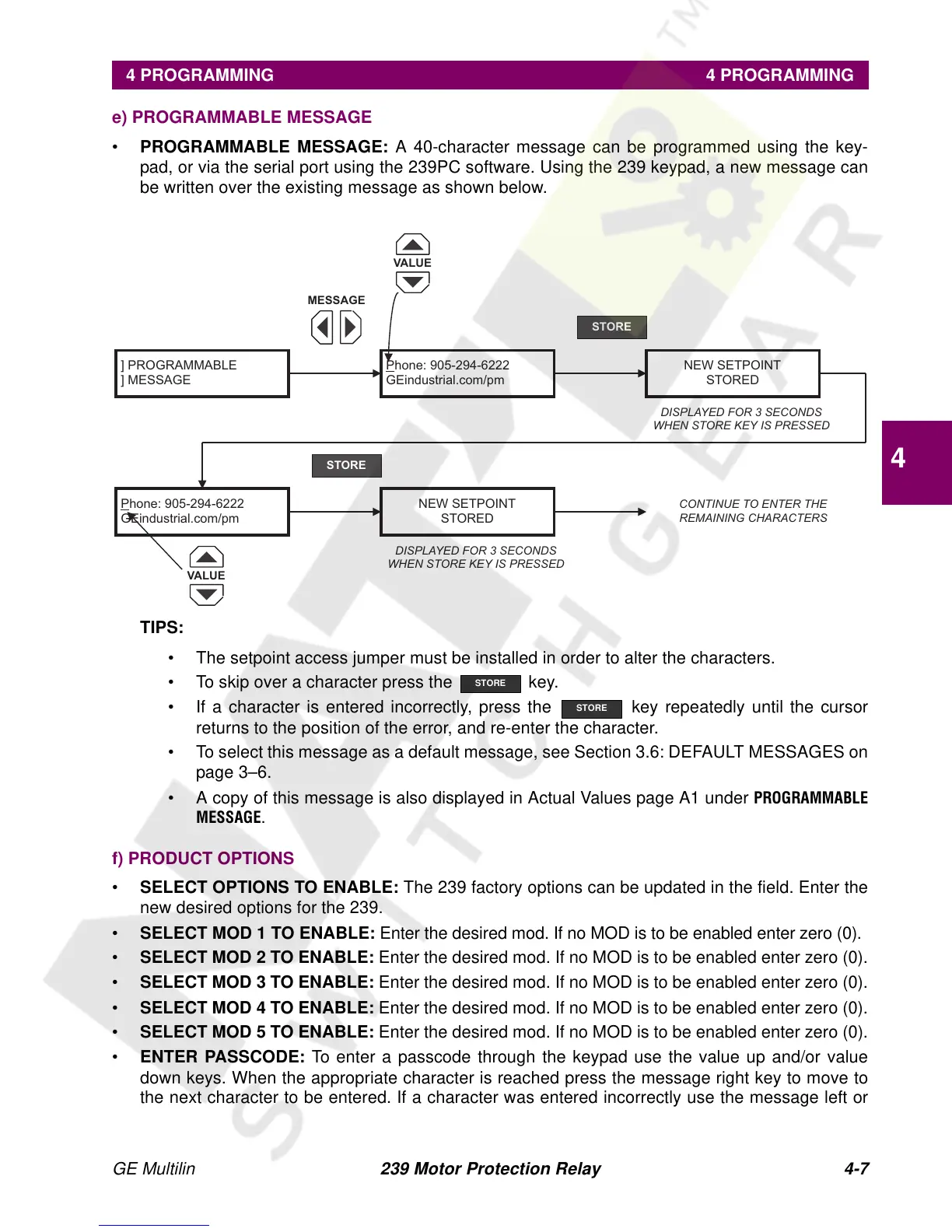

e) PROGRAMMABLE MESSAGE
• PROGRAMMABLE MESSAGE: A 40-character message can be programmed using the key-
pad, or via the serial port using the 239PC software. Using the 239 keypad, a new message can
be written over the existing message as shown below.
TIPS:
• The setpoint access jumper must be installed in order to alter the characters.
• To skip over a character press the key.
• If a character is entered incorrectly, press the key repeatedly until the cursor
returns to the position of the error, and re-enter the character.
• To select this message as a default message, see Section 3.6: DEFAULT MESSAGES on
page 3–6.
• A copy of this message is also displayed in Actual Values page A1 under
352*5$00$% / (
0(66$*(
.
f) PRODUCT OPTIONS
• SELECT OPTIONS TO ENABLE: The 239 factory options can be updated in the field. Enter the
new desired options for the 239.
• SELECT MOD 1 TO ENABLE: Enter the desired mod. If no MOD is to be enabled enter zero (0).
• SELECT MOD 2 TO ENABLE: Enter the desired mod. If no MOD is to be enabled enter zero (0).
• SELECT MOD 3 TO ENABLE: Enter the desired mod. If no MOD is to be enabled enter zero (0).
• SELECT MOD 4 TO ENABLE: Enter the desired mod. If no MOD is to be enabled enter zero (0).
• SELECT MOD 5 TO ENABLE: Enter the desired mod. If no MOD is to be enabled enter zero (0).
• ENTER PASSCODE: To enter a passcode through the keypad use the value up and/or value
down keys. When the appropriate character is reached press the message right key to move to
the next character to be entered. If a character was entered incorrectly use the message left or
] PROGRAMMABLE
] MESSAGE
MESSAGE
Phone: 905-294-6222
GEindustrial.com/pm
NEW SETPOINT
STORED
Phone: 905-294-6222
GEindustrial.com/pm
NEW SETPOINT
STORED
STORE
STORE
VALUE
VALUE
DISPLAYED FOR 3 SECONDS
WHEN STORE KEY IS PRESSED
CONTINUE TO ENTER THE
REMAINING CHARACTERS
DISPLAYED FOR 3 SECONDS
WHEN STORE KEY IS PRESSED
STORE
STORE
