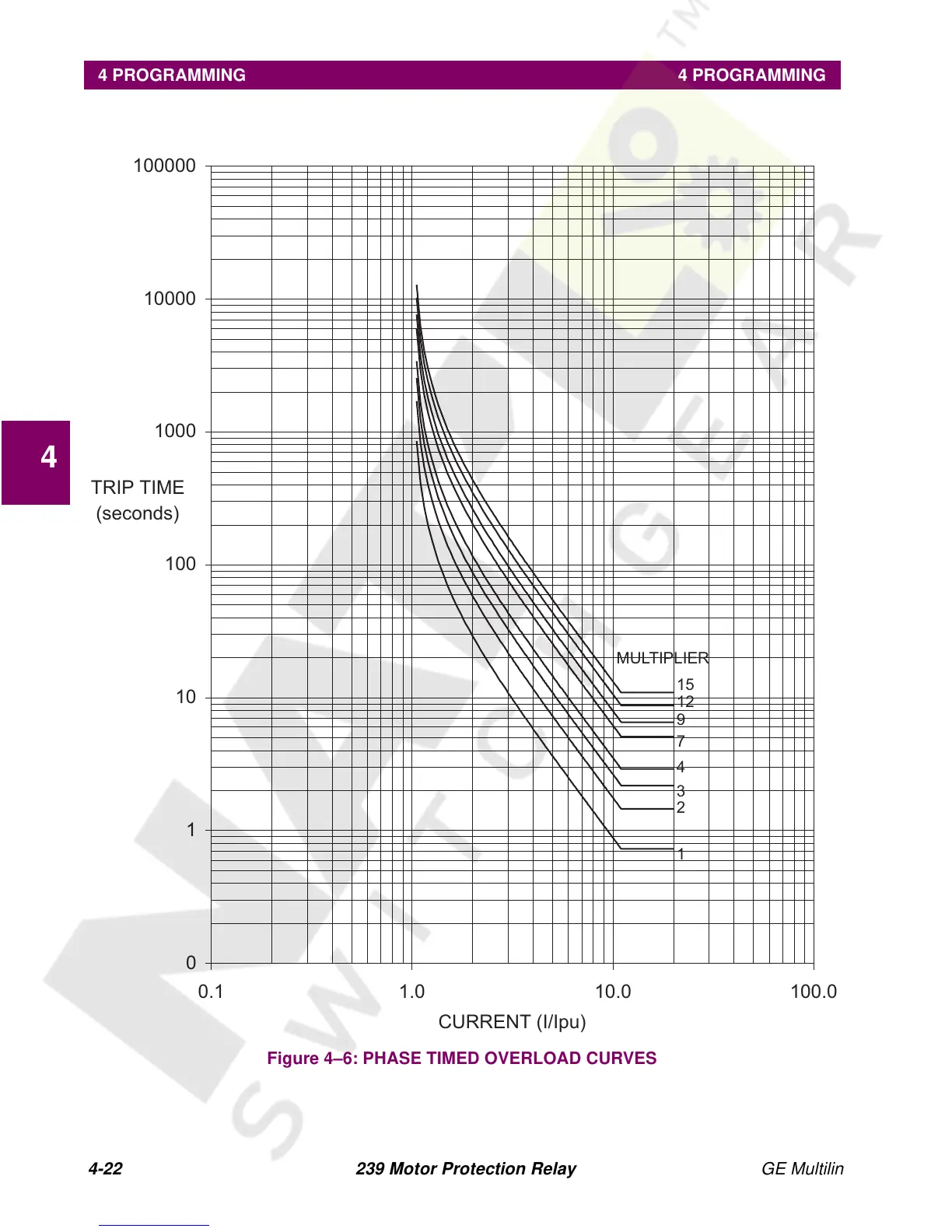

Figure 4–6: PHASE TIMED OVERLOAD CURVES
0
1
10
100
1000
10000
100000
0.1 1.0 10.0 100.0
CURRENT (I/Ipu)
TRIP TIME
(seconds)
MULTIPLIER
1
2
3
4
7
9
12
15
