GE Power Management 735/737 Feeder Protection Relay 2-
1
2 INSTALLATION 2.1 MECHANICAL
2
2 INSTALLATION 2.1 MECHANICAL 2.1.1 MOUNTING
The 735/737 is a drawout relay that slides into the panel mounted case. A hinged door covers the front panel controls to
allow protected access of the setting selector switches. This allows pickup levels and time delays to be quickly set or mod-
ified. The figure below shows the physical dimensions of the 735/737. A single cutout in the panel, as per the dimensions of
Figure 2–2: SINGLE AND DOUBLE UNIT PANEL CUTOUTS is required to mount the fixed chassis. When mounting the
735/737, provision should be made for the door to open without hitting adjacent components mounted on the panel. For 19-
inch rack mount applications, a 735/737 can be mounted individually on a panel or side-by-side with another SR series
relay (such as the 760) for backup applications. Details are shown below.

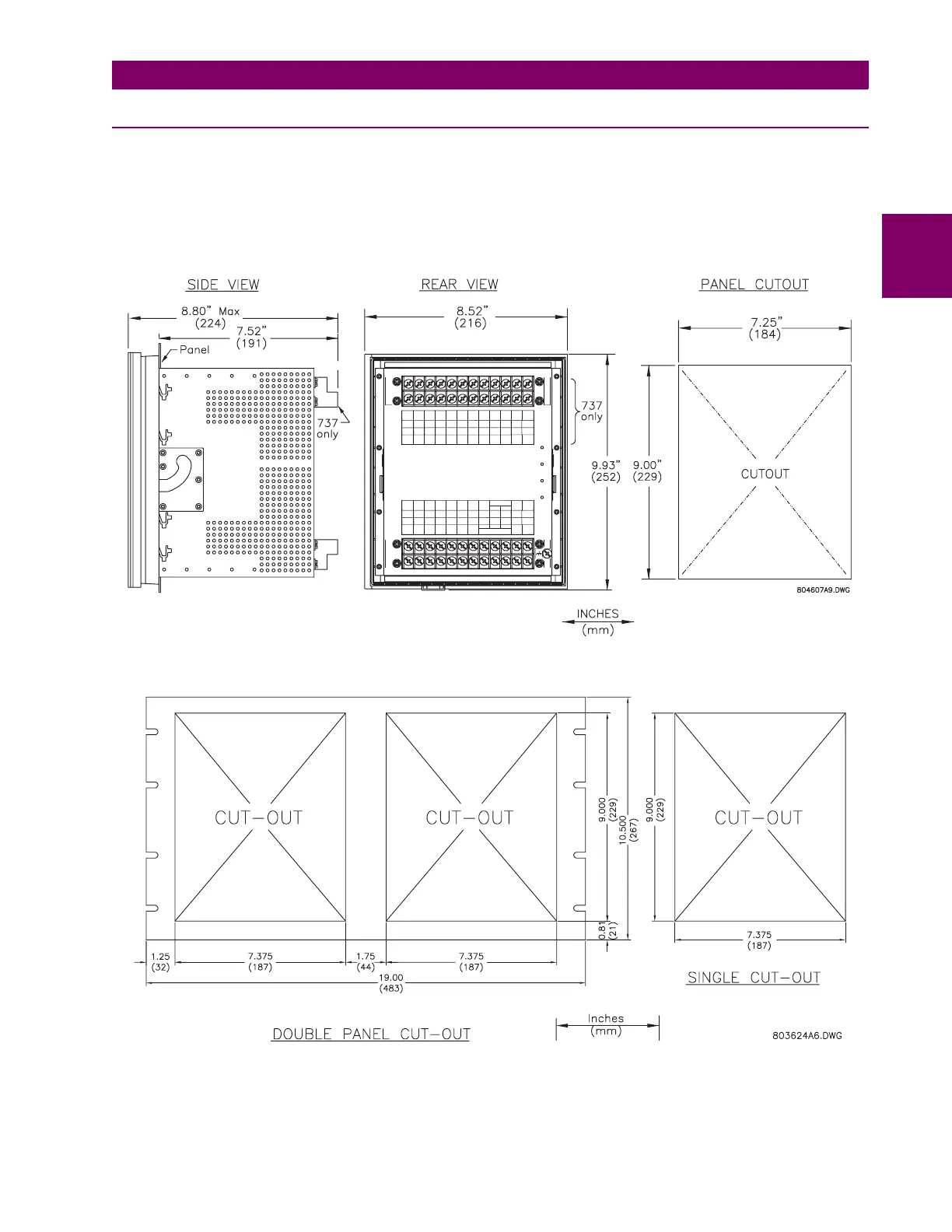

Figure 2–1: DIMENSIONS
Figure 2–2: SINGLE AND DOUBLE UNIT PANEL CUTOUTS
