GE Power Management
735/737 Feeder Protection Relay 3-11
3 SETUP AND OPERATION 3.5 SETUP PROGRAM
3
3.5 SETUP PROGRAM 3.5.1 DESCRIPTION
The
735SETUP
program can be run for training/testing purposes to read relay actual values, print out settings and simulate
operation of the relay from a computer running MS-DOS. See Section 2.2.4: COMMUNICATIONS on page 2–8 for installa-
tion procedures. When the relay is properly connected for communications, put the setup disk in the current drive and type:
"
735SETUP
" ("
737SETUP
" for 737 unit).
Menus are used to select the desired operation. Use a mouse or the arrow keys to select the desired menu item. Command
choices appear on the left side of the screen. Communication status and COM port in use are shown on the bottom of the
screen. In the upper right area of the screen the software revision will be displayed. Screen information can be printed on
the computer printer by pressing the F2 key when the desired screen is being displayed. This is useful for obtaining a hard-
copy of simulations for later reference.
The menus outlined below are used to establish communication with the relay, read/save setpoints to a computer file, con-
figure computer settings and provide product information.

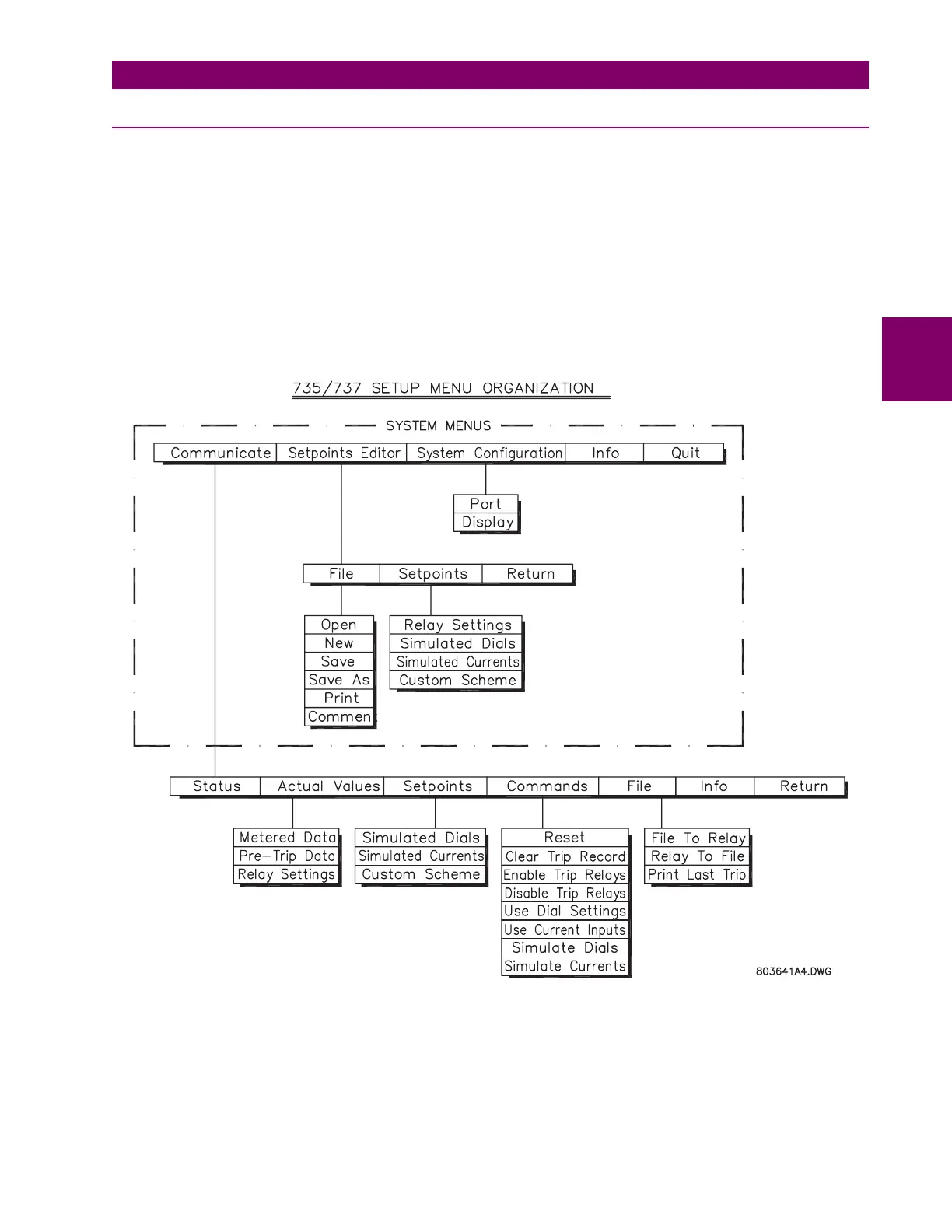

Figure 3–10: SETUP SOFTWARE SYSTEM MENUS
