GE Advent User Manual

11
Advent Commercial Fire System
wiring using the Installation Instructions included with the
module.

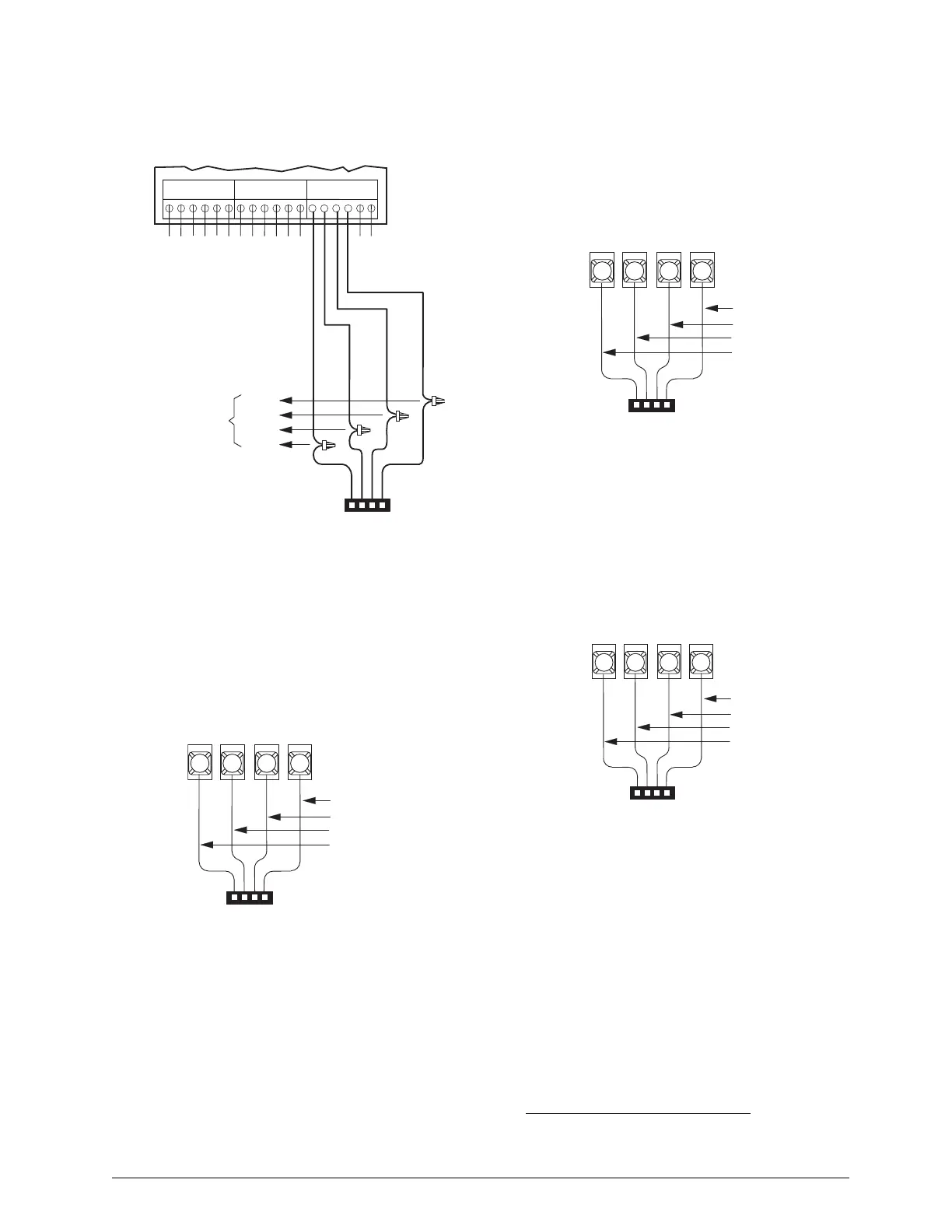

Figure 9. Connecting a 4-Relay Output Module
Dual Phone Line Module (60-768)
Connect the SuperBus 2000 Dual Phone Line Module to the
panel as shown in Figure 10. Connect all other phone wiring
using the Installation Instructions included with the mod-
ule.
Figure 10.Connecting a SuperBus 2000 Dual Phone
Line Module
Printer Module
 Printer Module in Plastic Case (60-783)
 Printer Module in Metal Case (60-854)
Note
For Commercial Fire installations the Printer Module in the
Metal Case (60-854) must be used.
Connect the SuperBus 2000 Printer Module to the panel as
shown in Figure 11. Connect all other printer wiring using
the Installation Instructions included with the module.
Figure 11.Connecting a SuperBus 2000 Printer Module
RS-232 Automation Module
*
(60-783-02)
Connect the SuperBus 2000 RS-232 Automation Module to
the panel as shown in Figure 12. For all other connections
please see the module Installation Instructions.
Figure 12.Connecting a RS-232 Automation Module
LED Module (Driver Board)
*
(60-870)
Connect the LED driver board to the panel as shown in Fig-
ure 13. For programming instructions please see “Program
LED Module” on page 41. For information on connecting
display and terminal boards please see the module Installa-
tion Instructions.
8543267A.DSF
BLACK
WHITE
GREEN
RED
SPLICE
PANEL SUPERBUS
WIRING
HARNESS 49-462
TO OTHER
SUPERBUS
DEVICES
1 2 3 4 5 6 7 8 9 1011121314151617
NO 1 NC 1 COM 1
18
ZONE 1
NO 2 NC 2 COM 2 NO 3 NC 3 COM 3 NO 4 NC 4 COM 4
ZONE COM
SUPERBUS DUAL PHONE LINE MODULE
TERMINAL STRIP
8844G05A.DSF
BLACK (GND)
WHITE (BUS B)
GREEN (BUS A)
RED (+12 VDC)
2
BUS
A
1
+12
VDC
3
BUS
B
4
GND
PANEL SUPERBUS
WIRING HARNESS 49-462
*) Not investigated by UL.
SUPERBUS PRINTER
INTERFACE MODULE
TERMINAL STRIP
8543110A.DSF
BLACK (GND)
WHITE (BUS B)
GREEN (BUS A)
RED (+12 VDC)
2
BUS
A
1
+12
VDC
3
BUS
B
4
GND
PANEL SUPERBUS
WIRING HARNESS 49-462
S U P E R B U S 2 0 0 0
A U T O M A T I O N M O D U L E
T E R M I N A L S T R I P
8 8 4 5 G 1 0 A . D S F
B L A C K ( G N D )
W H I T E ( B U S B )
G R E E N ( B U S A )
R E D ( + 1 2 V D C )
2
B U S
A
1
+ 1 2
V D C
3
B U S
B
4
G N D
P A N E L S U P E R B U S
W I R I N G H A R N E S S 4 9 - 4 6 2
