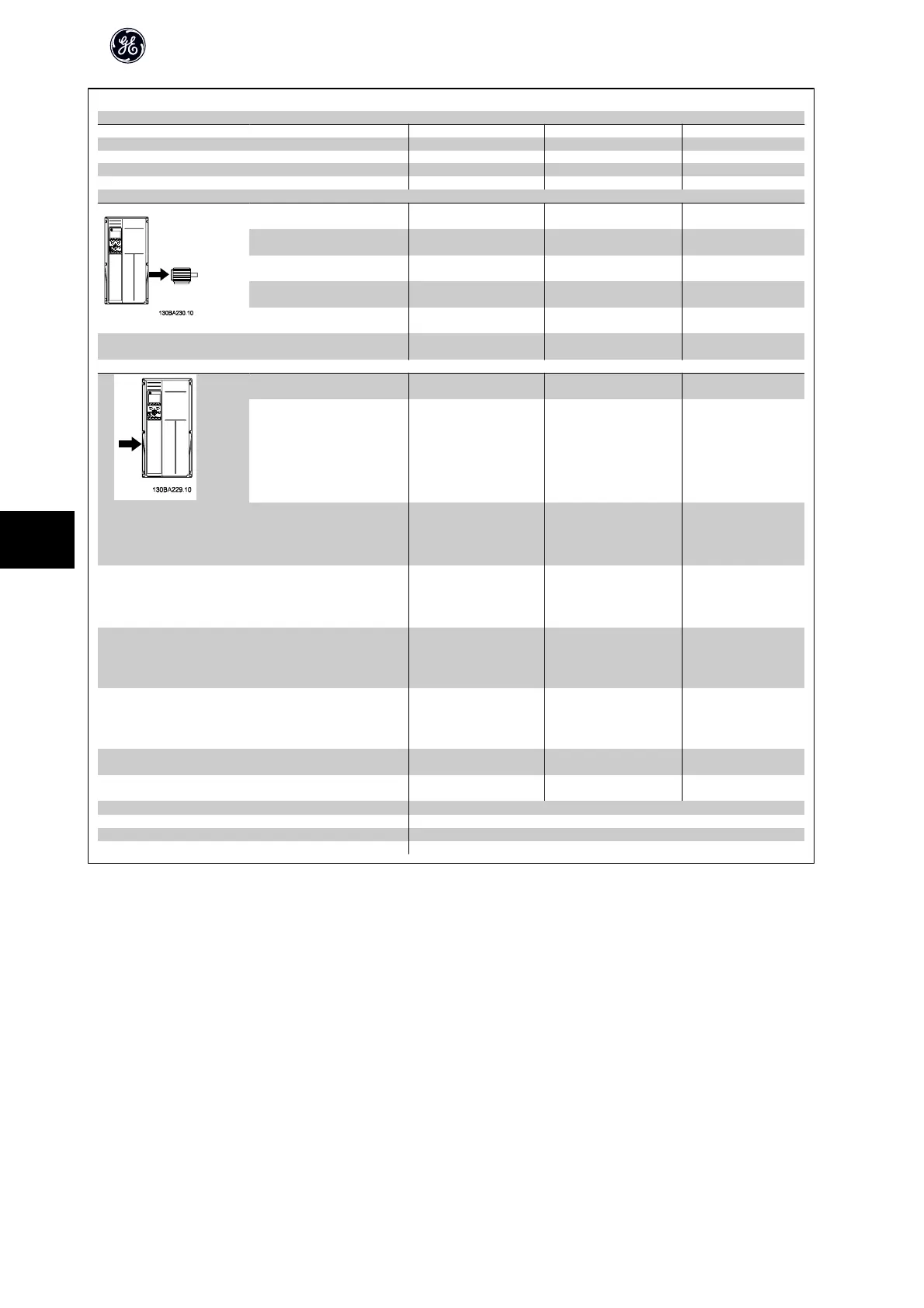

GE af-600 fp

Mains Supply 3 x 525- 600 VAC
P400 P450 P500
Typical Shaft output at 550 V [kW] 400 450 500
Typical Shaft output at 575 V [HP] 500 600 650
Unit Size IP21 51 51 51
Unit Size IP54 51 51 51
Unit Size IP00 52 52 52
Output current
Continuous
(at 550 V) [A]
523 596 630
Intermittent (60 sec overload)
(at 550 V) [A]
575 656 693
Continuous
(at 575 V) [A]
500 570 630
Intermittent (60 sec overload)
(at 575 V) [A]
550 627 693
Continuous KVA
(at 550 V) [KVA]
498 568 600
Continuous KVA
(at 575 V) [KVA]
498 568 627
Max. input current
Continuous
(at 550 V ) [A]
504 574 607
Continuous
(at 575 V) [A]
482 549 607
Max. cable size, mains, motor and
load share [mm
2
(AWG)]
4x240 (4x500 mcm) 4x240 (4x500 mcm) 4x240 (4x500 mcm)
Max. cable size, brake [mm
2
(AWG)]
2 x 185
(2 x 350 mcm)
2 x 185
(2 x 350 mcm)
2 x 185
(2 x 350 mcm)
Max. external pre-fuses [A]
1
700 900 900
Estimated power loss
at rated max. load [W]
4)
7249 8727 9673
Weight,
Unit Size IP21, IP 54 [kg]
263 272 313
Weight,
Unit Size IP00 [kg]
221 236 277
Efficiency
4)
0.98
Output frequency 0 - 500 Hz
Heatsink overtemp. trip 85 °C
Power card ambient trip 68 °C
