Terminal locations - Options Cabinet (Unit Sizes 63 and 64)

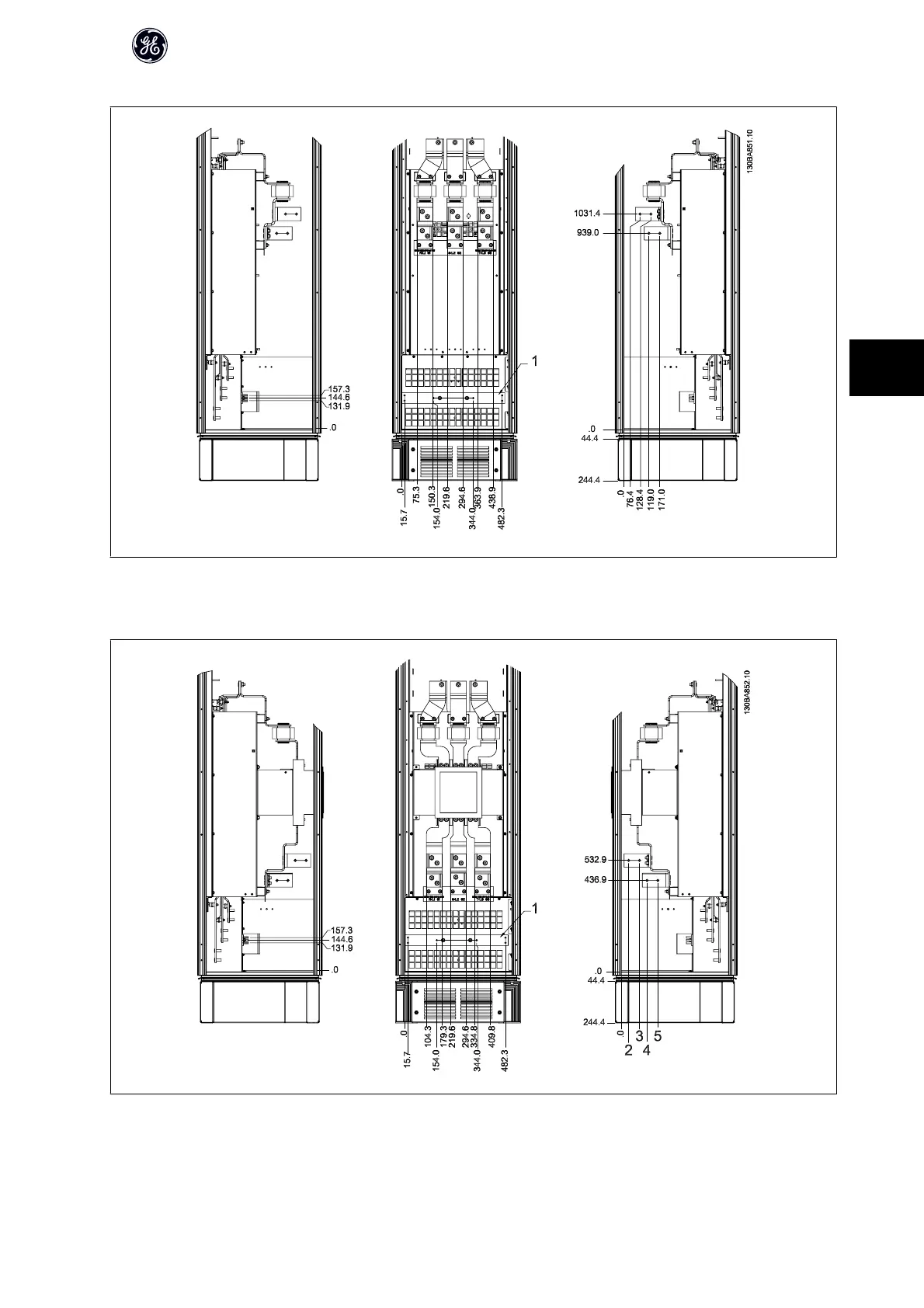

Illustration 5.26: Terminal locations - Options Cabinet (Left side, front and right side view)
1) Ground bar
Terminal locations - Options Cabinet with circuit breaker/ molded case switch (Unit Sizes 63 and 64)
Illustration 5.27: Terminal locations - Options Cabinet with circuit breaker/ molded case switch (Left side, front and right side view)
1) Ground bar
AF-600 FP High Power Operating Instructions
59
