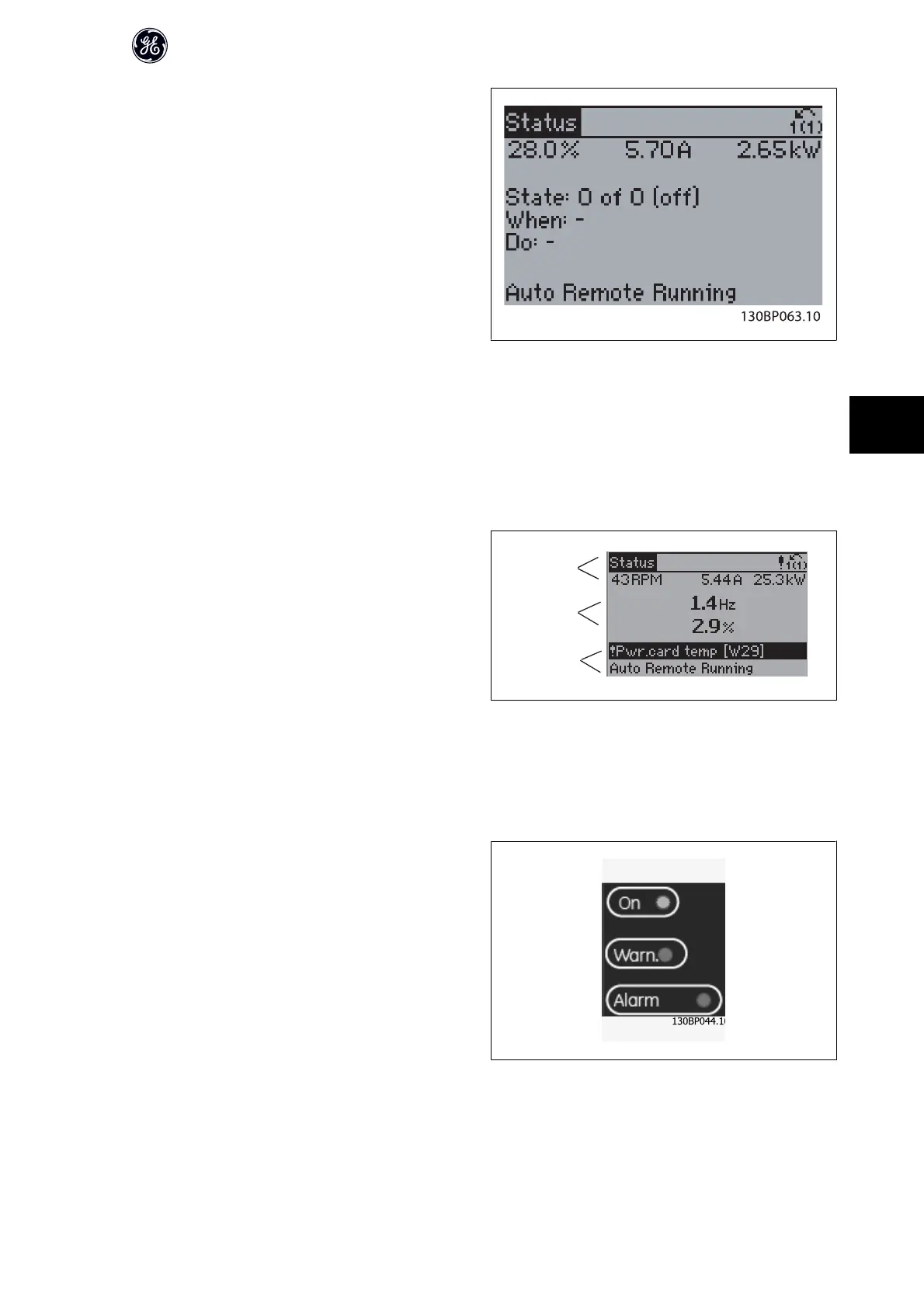

Status display III:
This state displays the event and action of the Logic Controller. For further
information, see section Logic Controller.
The Bottom section always shows the state of the frequency converter in
Status mode.
Display Contrast Adjustment
Press [status] and [
▲
] for darker display
Press [status] and [
▼
] for brighter display
130BP074.10
Top section
Middle section
Bottom section
Indicator lights (LEDs):
If certain threshold values are exceeded, the alarm and/or warning LED lights up. A status and alarm text appear on the keypad.
The On LED is activated when the frequency converter receives power from mains voltage, a DC bus terminal, or the field installed external 24 V supply option
module (OPC24VPS). At the same time, the back light is on.
• Green LED/On: Control section is working.
• Yellow LED/Warn.: Indicates a warning.
• Flashing Red LED/Alarm: Indicates an alarm.
AF-600 FP High Power Operating Instructions
73
