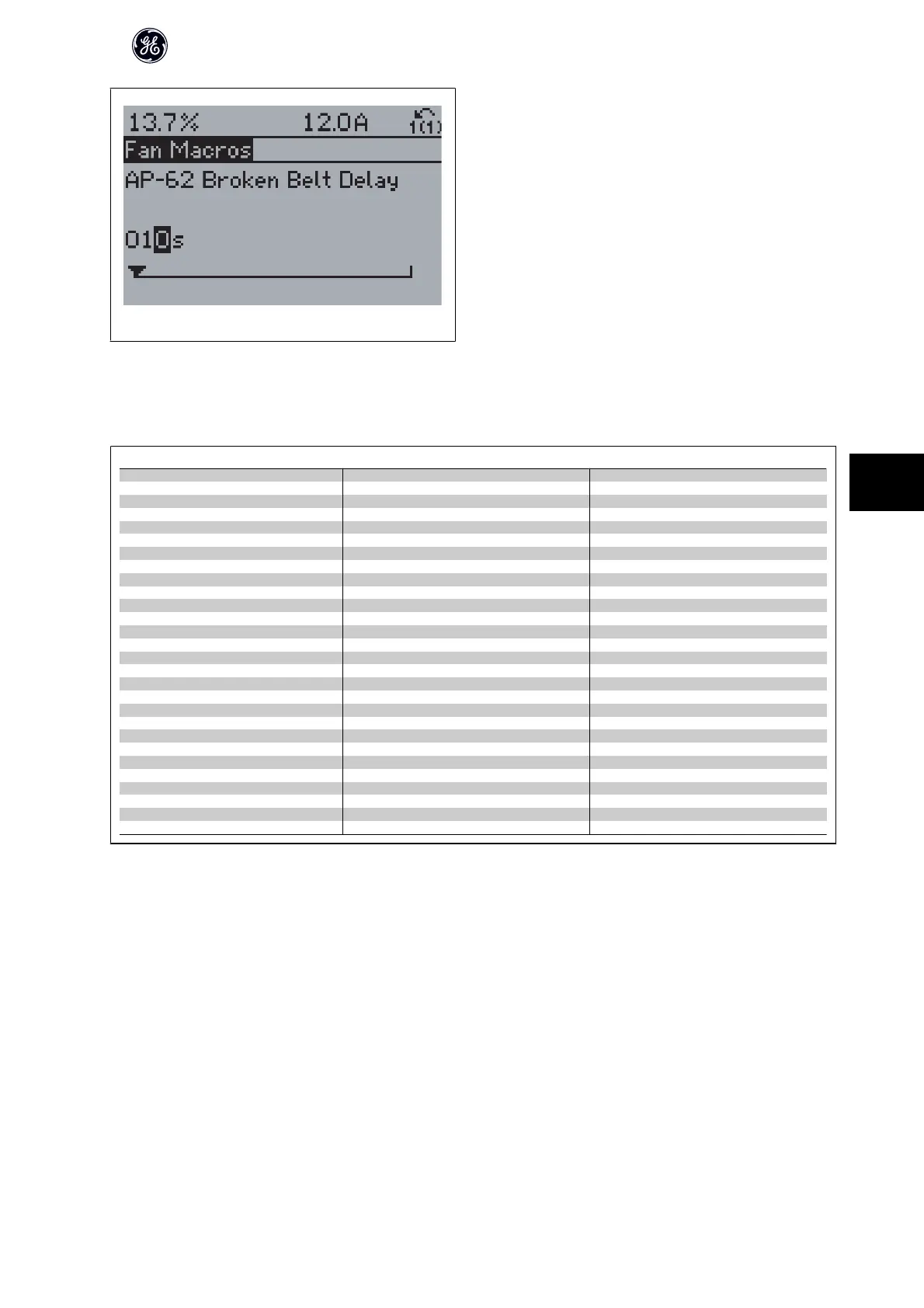

Illustration 7.1: Step 6: Use the up/down navigation keys to change the delay
time.
The Quick Menu parameters are grouped in the following way:
Application Settings
Fan Macros Pump Macros Compressor Macros
par. AP-60 Broken Belt Function par. AP-20 Low Power Auto Set-up par. H-43 Torque Characteristics
par. AP-61 Broken Belt Torque par. AP-21 Low Power Detection par. F-24 Holding Time
par. AP-62 Broken Belt Delay par. AP-22 Low Speed Detection par. AP-75 Short Cycle Protection
par. C-40 Semi-Auto Jump Freq Set-up par. AP-23 No-Flow Function par. AP-76 Interval between Starts
par. H-43 Torque Characteristics par. AP-24 No-Flow Delay par. AP-77 Minimum Run Time
par. AP-22 Low Speed Detection par. AP-40 Minimum Run Time par. E-51 Terminal 27 Mode
par. AP-23 No-Flow Function par. AP-41 Minimum Sleep Time par. E-52 Terminal 29 Mode
par. AP-24 No-Flow Delay par. AP-42 Wake-up Speed [RPM] par. E-03 Terminal 27 Digital Input
par. AP-40 Minimum Run Time par. AP-43 Wake-up Speed [Hz] par. E-04 Terminal 29 Digital Input
par. AP-41 Minimum Sleep Time par. AP-44 Wake-up Ref./FB Difference par. E-24 Function Relay
par. AP-42 Wake-up Speed [RPM] par. AP-45 Setpoint Boost par. H-09 Start Mode
par. AP-43 Wake-up Speed [Hz] par. AP-46 Maximum Boost Time par. H-36 Trip Speed Low [RPM]
par. AP-44 Wake-up Ref./FB Difference par. AP-26 Dry Pump Function par. H-37 Trip Speed Low [Hz]
par. AP-45 Setpoint Boost par. AP-27 Dry Pump Delay
par. AP-46 Maximum Boost Time par. AP-80 Flow Compensation
par. B-10 Brake Function par. AP-81 Square-linear Curve Approximation
par. B-16 AC brake Max. Current par. AP-82 Work Point Calculation
par. B-17 Over-voltage Control par. AP-83 Speed at No-Flow [RPM]
par. H-09 Start Mode par. AP-84 Speed at No-Flow [Hz]
par. F-24 Holding Time par. AP-85 Speed at Design Point [RPM]
par. H-80 Function at Stop par. AP-86 Speed at Design Point [Hz]
par. B-00 DC Hold Current par. AP-87 Pressure at No-Flow Speed
par. H-08 Reverse Lock par. AP-88 Pressure at Rated Speed
par. AP-89 Flow at Design Point
par. AP-90 Flow at Rated Speed
par. H-43 Torque Characteristics
par. H-09 Start Mode
